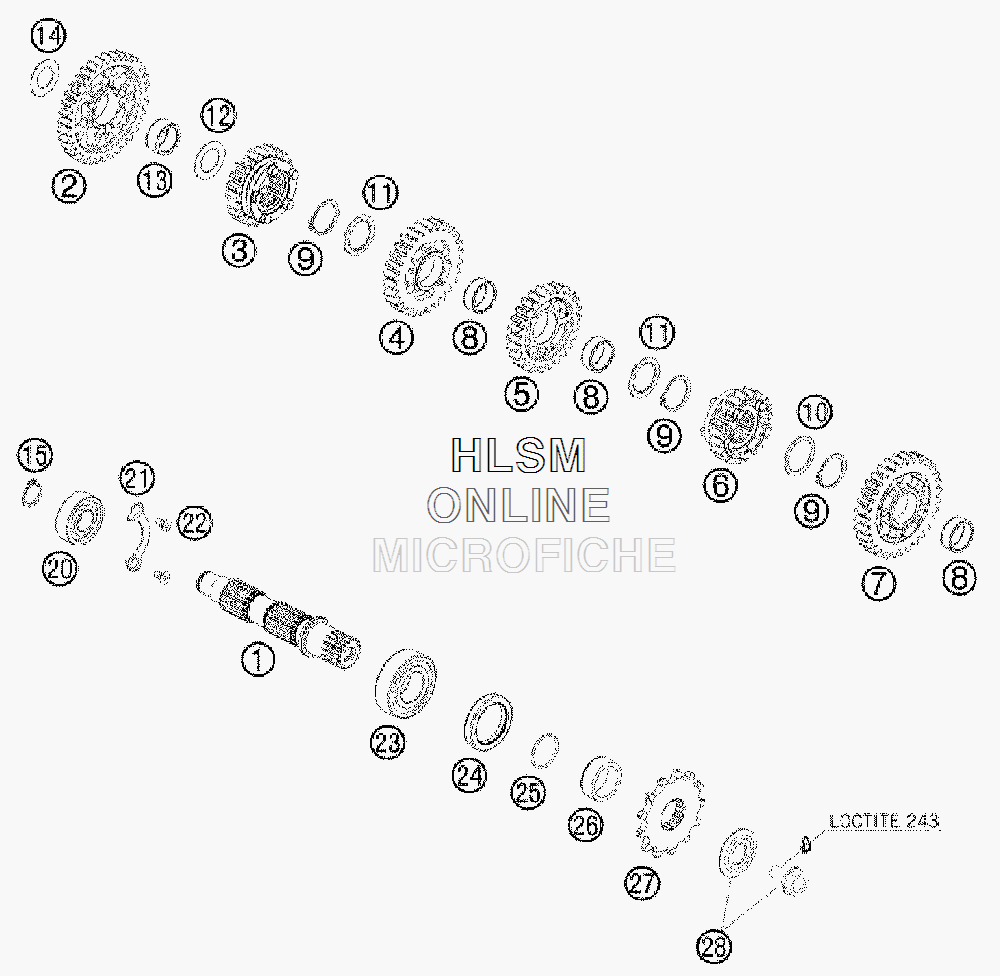

TRANSMISSION II - COUNTERSHAFT для Ktm 530 EXC USA - 2009 года выпуска
-
№АртикулНазвание
-
178033010000 COUNTERSHAFTCOUNTERSHAFT
-
278033011000 IDLER GEAR 1.G.IDLER GEAR 1.G.
-
378033015000 SLIDING GEAR 5.G.SLIDING GEAR 5.G.
-
478033013000 IDLER GEAR 3.G.IDLER GEAR 3.G.
-
578033014000 IDLER GEAR 4.G.IDLER GEAR 4.G.
-
678033016000 SLIDING GEAR 6.G.SLIDING GEAR 6.G.
-
778033012000 IDLER GEAR 2.G.IDLER GEAR 2.G.
-
80405222611 NEEDLE BEAR.K 22X26X10 DIVIDEDNEEDLE BEAR.K 22X26X10 DIVIDED
-
90471250120 CIRCLIP DIN0471-25X1,2CIRCLIP DIN0471-25X1,2
-
1078033031000 STOP DISK 26 X 32 X 1,5STOP DISK 26 X 32 X 1,5
-
1178033033000 STOP DISK 23 X 32 X 1,5STOP DISK 23 X 32 X 1,5
-
1259033080000 SHIM 20X32X1SHIM 20X32X1
-
130405202612 NEEDLE BEARING K 20X26X12NEEDLE BEARING K 20X26X12
-
1456033030000 STOP DISC 17,2X30X1STOP DISC 17,2X30X1
-
150471170015 CIRCLIP DIN 0471-17X1, 5CIRCLIP DIN 0471-17X1, 5
-
200625062035 BALL BEARING 6203 JR2 C3BALL BEARING 6203 JR2 C3
-
2178033132000 TAB WASHER BEARING COUNT.SHAFTTAB WASHER BEARING COUNT.SHAFT
-
220019050103 INT. TORX FLAT HEAD M 5X10 8.8INT. TORX FLAT HEAD M 5X10 8.8
-
2349030023000 CYL.ROLL BEARING NJ205CYL.ROLL BEARING NJ205
-
240760324571 SHAFT SEAL RING 32X45X7 BSLNBRSHAFT SEAL RING 32X45X7 BSLNBR
-
250770020220 O-RING 25,12X1,78 NBR70O-RING 25,12X1,78 NBR70
-
2654633014100 SPACER BUSHING 12MMSPACER BUSHING 12MM
-
2750033029013 SPROCKET 13-TSPROCKET 13-T
-
2750033029014 SPROCKET 14-TSPROCKET 14-T
-
2750033029015 SPROCKET 15-TSPROCKET 15-T
-
2859033034044 SCREW+SPRING WASHERSCREW+SPRING WASHER
