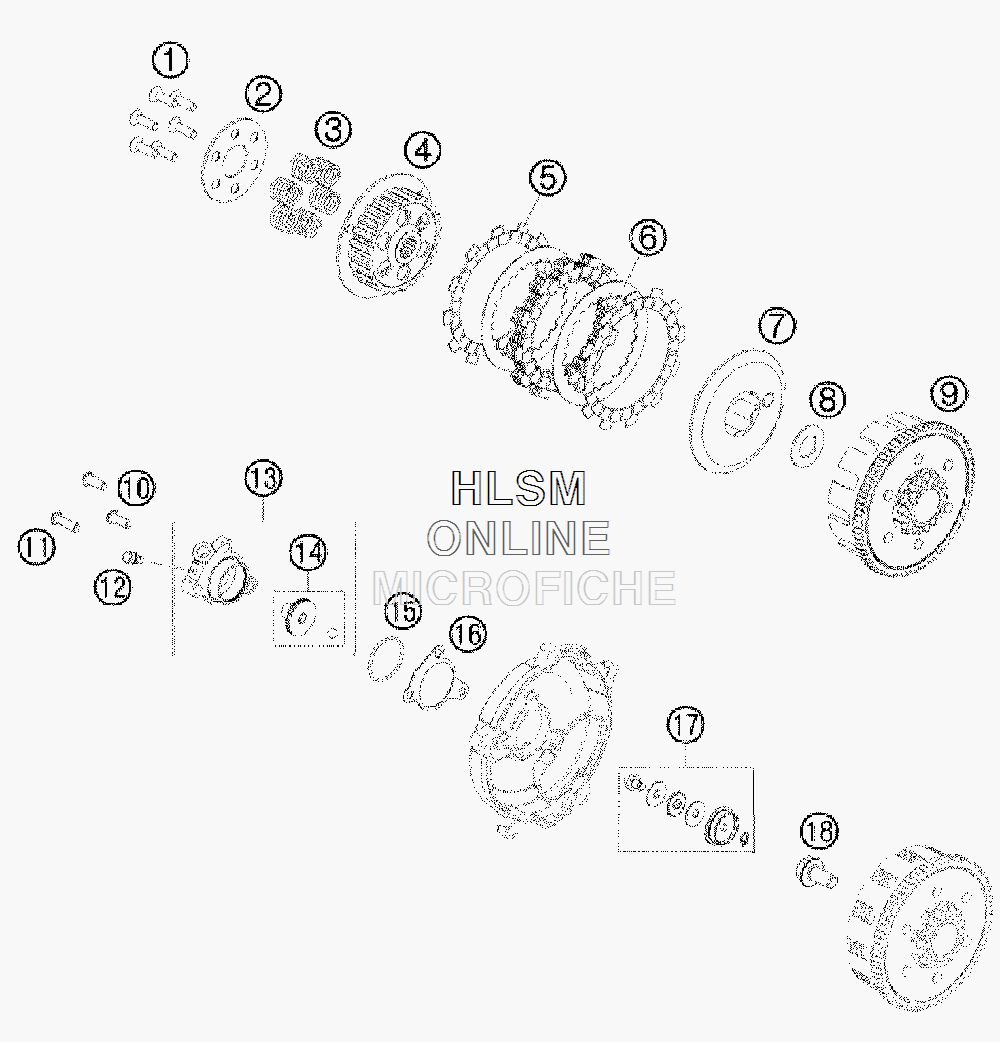

CLUTCH для Ktm 65 SX - 2009 года выпуска
-
№АртикулНазвание
-
10991060202 FLAT HEAD DIN7991-M 6X20FLAT HEAD DIN7991-M 6X20
-
246032006000 SPRING RETAINER 25X63,5X2SPRING RETAINER 25X63,5X2
-
346232005000 CLUTCH SPRINGCLUTCH SPRING
-
446232002000 CLUTCH HUBCLUTCH HUB
-
546032011000 LINING DISKLINING DISK
-
646032010000 INTERMEDIATE DISK STEELINTERMEDIATE DISK STEEL
-
746232003000 CLUTCH PRESSURE CAPCLUTCH PRESSURE CAP
-
846232012000 STOP DISC 17,2X32X1,5STOP DISC 17,2X32X1,5
-
946232000044 PRIMARY DRIVE WITH CLUTCH CAGEPRIMARY DRIVE WITH CLUTCH CAGE
-
100738060161 FLAT HEAD SCREW ISO7380 M6X16FLAT HEAD SCREW ISO7380 M6X16
-
110738060201 FLAT HEAD SCREW ISO7380 M6X20FLAT HEAD SCREW ISO7380 M6X20
-
1254732064000 BLEEDER SCREW WITH CAPBLEEDER SCREW WITH CAP
-
1359032061044 OUTPUT CYLINDER CPL. 27MMOUTPUT CYLINDER CPL. 27MM
-
1459032066000 PISTON + O-RING + BALL 27MMPISTON + O-RING + BALL 27MM
-
150770300015 O-RING 30,00X1,50 NBR 70O-RING 30,00X1,50 NBR 70
-
1659032065000 GASKET FOR SLAVE CYLINDERGASKET FOR SLAVE CYLINDER
-
1746232057000 PRESSURE PIECE CPL.PRESSURE PIECE CPL.
-
1846132019000 HH COLLAR SCREW M10X20HH COLLAR SCREW M10X20
