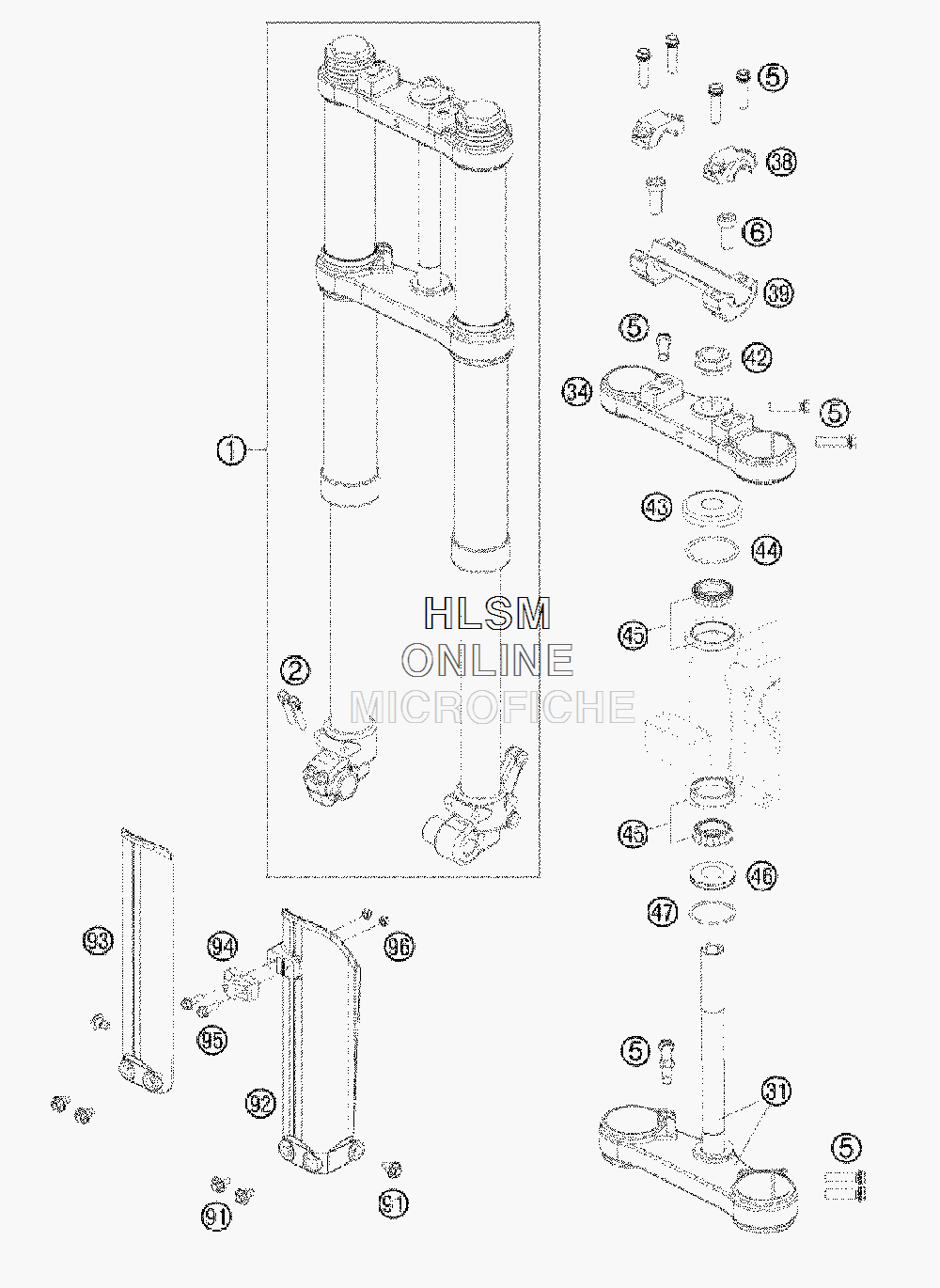

FRONT FORK TRIPLE CLAMP для Ktm 65 SX - 2009 года выпуска
-
№АртикулНазвание
-
146201000033 FRONT FORK USS D035MMFRONT FORK USS D035MM
-
20025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
50025080306 HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
-
60912100250 AH SCREW DIN6912-M10X25,10.9,LAH SCREW DIN6912-M10X25,10.9,L
-
3177051116 BOT.TRIPLE CLAMP + FORK TUBEBOT.TRIPLE CLAMP + FORK TUBE
-
347501478 TOP TRIPLE CLAMPTOP TRIPLE CLAMP
-
3850301038000 HANDLEBAR CLAMP D=22MMHANDLEBAR CLAMP D=22MM
-
3959001039000 HANDLEBAR SUPPORT 22MM 2THANDLEBAR SUPPORT 22MM 2T
-
4259030029000 HH NUT M20X1,5 WS=27 RIGHTHH NUT M20X1,5 WS=27 RIGHT
-
4349001086000 COVERING CAPCOVERING CAP
-
440770021300 O-RING 40,94X2,62 NBR70O-RING 40,94X2,62 NBR70
-
4549001081000 TAPERED ROLLER BEARING 32004XTAPERED ROLLER BEARING 32004X
-
4646001086000 PROTECTION RING 20,1X39X5PROTECTION RING 20,1X39X5
-
470770360030 O-RING 36,00X3,00 NBRO-RING 36,00X3,00 NBR
-
9159001092050 SPECIAL SCREW M6X12,5SPECIAL SCREW M6X12,5
-
9246101092000 FORK PROTECTION L/S 65SXFORK PROTECTION L/S 65SX
-
9346101093000 FORK PROTECTION R/S 65SXFORK PROTECTION R/S 65SX
-
9454601085000 BRAKE HOSE CLAMP MARZOCCHIBRAKE HOSE CLAMP MARZOCCHI
-
950025050166 HH COLLAR SCREW M5X16HH COLLAR SCREW M5X16
-
960985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
