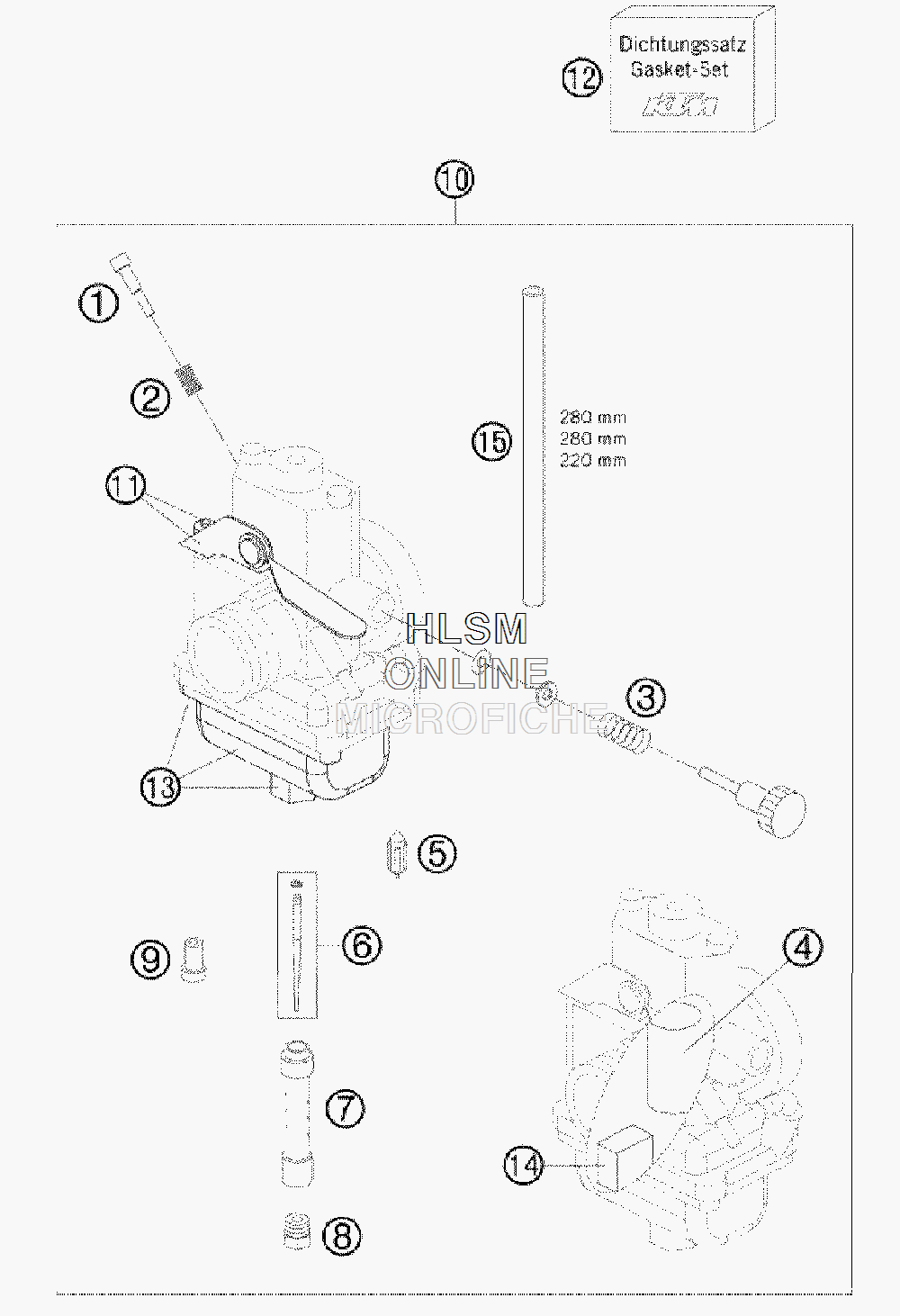

CARBURETOR для Ktm 65 XC - 2009 года выпуска
-
№АртикулНазвание
-
146131017000 ADJUSTING SCREW MIKUNIADJUSTING SCREW MIKUNI
-
245031015200 SPRING IDLE ADJUST SCREWSPRING IDLE ADJUST SCREW
-
345031015000 SPRINGSPRING
-
446231035000 THROTTLE VALVE MIKUNI 2.5THROTTLE VALVE MIKUNI 2.5
-
546231020000 NEEDLE VALVE CPL. 2.5NEEDLE VALVE CPL. 2.5
-
646231034000 JET NEEDLE MIKUNI 5IPL43-2JET NEEDLE MIKUNI 5IPL43-2
-
746231034100 JET NEEDLE OUTER MIKUNIJET NEEDLE OUTER MIKUNI
-
845031023210 MAIN JET 210MAIN JET 210
-
945031007020 IDLING JET 20 MIKUNIIDLING JET 20 MIKUNI
-
1046231001044 CARBURETOR 65 SXCARBURETOR 65 SX
-
1146231048044 CHOKE + LEVER CPL.CHOKE + LEVER CPL.
-
1246231099000 GASKET SET MIKUNIGASKET SET MIKUNI
-
1346231011044 FLOAT BODY + SCREW + GASKETFLOAT BODY + SCREW + GASKET
-
1446231009044 FLOAT + PINFLOAT + PIN
-
1552031137001 PVC-HOSE 3X5MMPVC-HOSE 3X5MM
