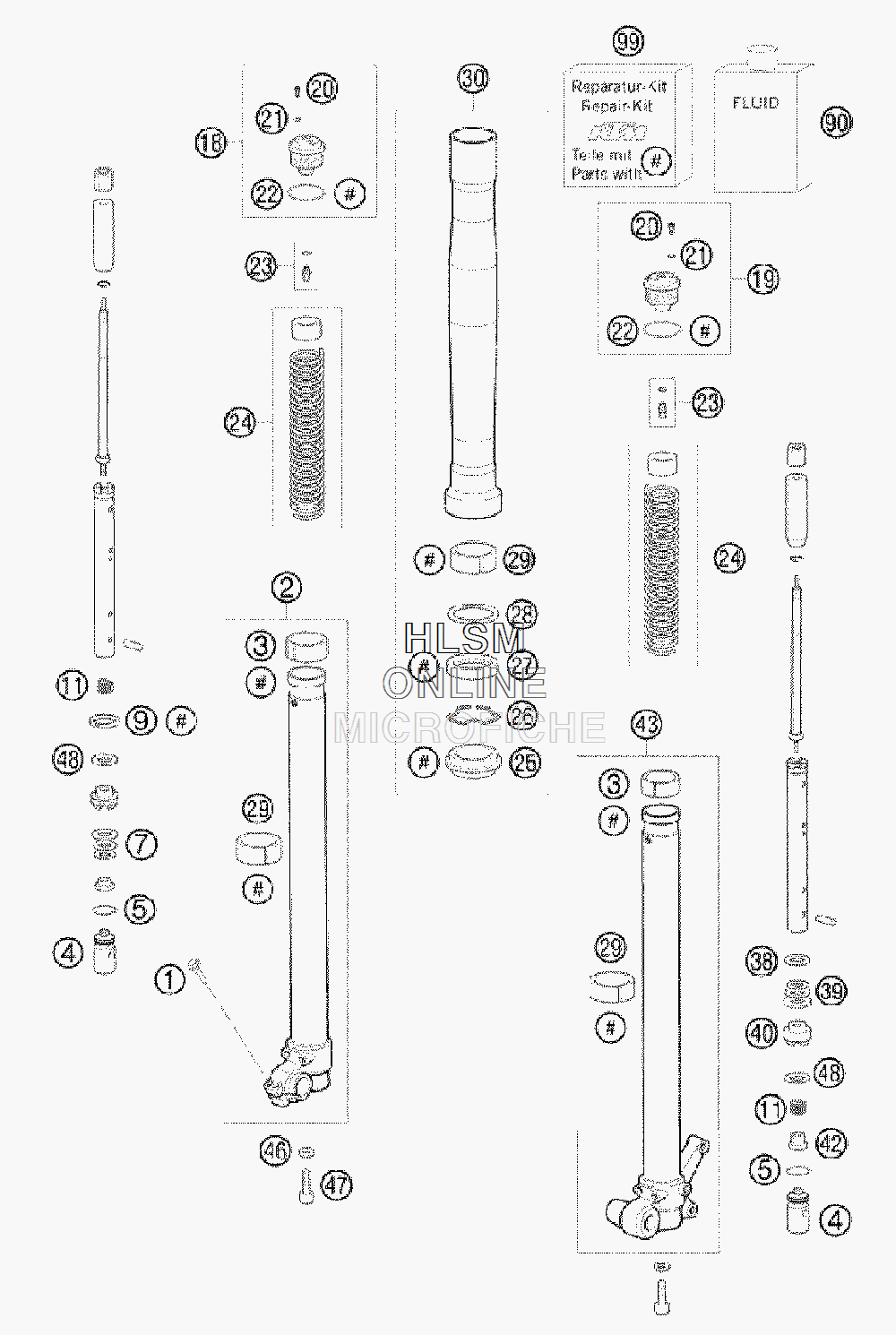

FRONT FORK DISASSEMBLED для Ktm 65 XC - 2009 года выпуска
-
№АртикулНазвание
-
10025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
27819139/C SLIDER + AXLE CLAMP CPL. R/SSLIDER + AXLE CLAMP CPL. R/S
-
37538029 GUIDE RING D=35GUIDE RING D=35
-
47717065/R FOOT VALVEFOOT VALVE
-
57528005 O-RING D=20,3O-RING D=20,3
-
77517082 SHIM 8,1X23X0,1SHIM 8,1X23X0,1
-
97524163 PISTON RING D=26PISTON RING D=26
-
1175141087 LOWER REBOUND SPRINGLOWER REBOUND SPRING
-
187701204AC PLUG R/S CPL.PLUG R/S CPL.
-
197701205AC PLUG L/S CPL.PLUG L/S CPL.
-
207850208AR LENTIL HEAD SCREW M4X6LENTIL HEAD SCREW M4X6
-
217528180 O-RING D=3,69, S=1,78O-RING D=3,69, S=1,78
-
227528008 O-RING D=34,6, S=1,78O-RING D=34,6, S=1,78
-
237850652 PIN + O-RINGPIN + O-RING
-
247850728 SPRINGS + PRELOAD SLEEVES KITSPRINGS + PRELOAD SLEEVES KIT
-
257533167 DUST CAPDUST CAP
-
267523236 LOCK WASHER D=51,5LOCK WASHER D=51,5
-
277528034 OIL SEAL 35X47X10OIL SEAL 35X47X10
-
287539032AA WASHER 36X47X3WASHER 36X47X3
-
297538038/A GUIDE RING 35X15GUIDE RING 35X15
-
307760069FN/C OUTER TUBE CPL.OUTER TUBE CPL.
-
387535099 COMPRESSION DAMPING SHIMCOMPRESSION DAMPING SHIM
-
397517028 SHIM 8,1X23X0,2SHIM 8,1X23X0,2
-
397517057 SHIM 8,1X21X0,2SHIM 8,1X21X0,2
-
397517074 SHIM 8,1X18X0,2SHIM 8,1X18X0,2
-
407530090/B PISTON COMPRESSION D=26PISTON COMPRESSION D=26
-
427521147/A SPECIAL NUT M6X1 WITH STEPSPECIAL NUT M6X1 WITH STEP
-
437819140/C SLIDER + AXLE CLAMP CPL. L/SSLIDER + AXLE CLAMP CPL. L/S
-
467522061 SHIM 8X12X1,5SHIM 8X12X1,5
-
470912080253 AH SCREW DIN0912-M 8X25AH SCREW DIN0912-M 8X25
-
487517044 SHIM 8,1X23X0,3SHIM 8,1X23X0,3
-
907550013 FORKOIL EBH16 SAE 7.5FORKOIL EBH16 SAE 7.5
-
997850731/C REPAIR-KIT USD 35REPAIR-KIT USD 35
