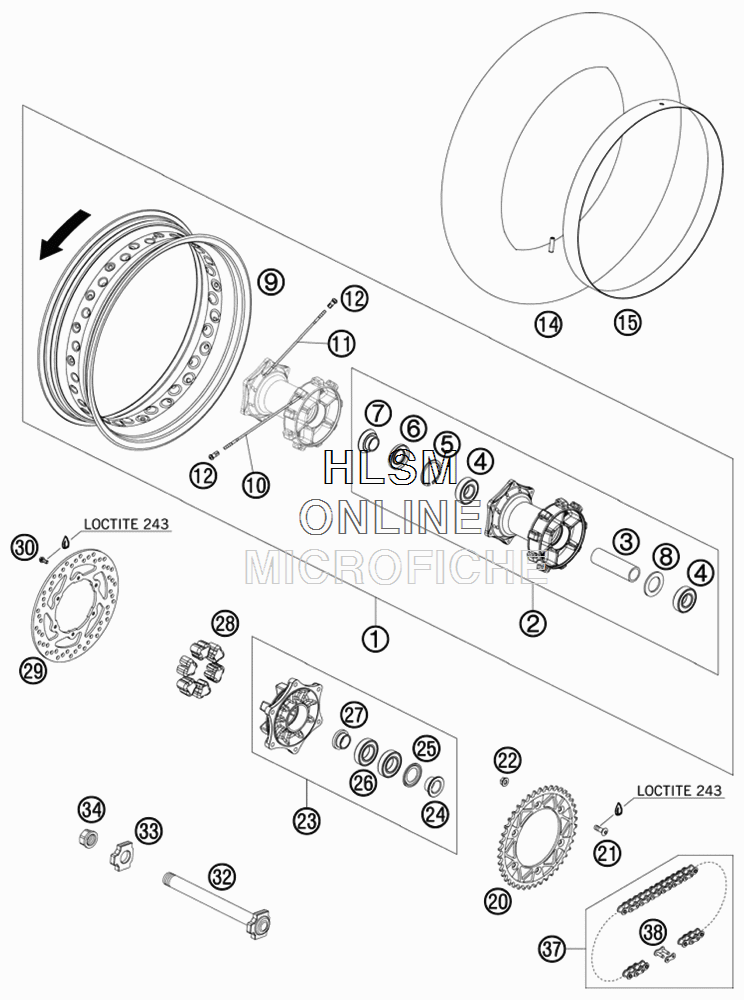

REAR WHEEL для Ktm 690 SMC - 2009 года выпуска
-
№АртикулНазвание
-
17501020104430 REAR WHEEL CPL. 5X17"REAR WHEEL CPL. 5X17"
-
275310010044 REAR HUB CPL.REAR HUB CPL.
-
375310011000 BEARING SPACER TUBE L=106MMBEARING SPACER TUBE L=106MM
-
40625062052 GR.BALL BEAR. 6205-2RSHC3HMTF7GR.BALL BEAR. 6205-2RSHC3HMTF7
-
50472052200 CIRCLIP DIN0472-52X2CIRCLIP DIN0472-52X2
-
60760305271 SHAFT SEAL RING 30X52X7SHAFT SEAL RING 30X52X7
-
760110013000 SPACER BUSH. REAR WHEEL R/SSPACER BUSH. REAR WHEEL R/S
-
860010015000 SPACER RINGSPACER RING
-
97501027000030 RIM 5X17" BLACKRIM 5X17" BLACK
-
1075010073199 SPOKE M5X199-16G 17" INOXSPOKE M5X199-16G 17" INOX
-
1175010173188 SPOKE M5X188-27G 17" INOXSPOKE M5X188-27G 17" INOX
-
1258309072100 SPOKE NIPPLE M5-TA 8X21MMSPOKE NIPPLE M5-TA 8X21MM
-
1458410075000 TUBE 17"TUBE 17"
-
1558309073000 RIM BAND 17"RIM BAND 17"
-
2075010051040 SPROCKET STEALTH 40TSPROCKET STEALTH 40T
-
2075010051042 SPROCKET STEALTH 42TSPROCKET STEALTH 42T
-
210019080266S COUNTER-SUNK SCREW ISA45 M8X26COUNTER-SUNK SCREW ISA45 M8X26
-
2254310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
2375010050044 SPROCKET SUPPORT CPL.SPROCKET SUPPORT CPL.
-
2460110012000 SPACER BUSH. SPROCKET SUPP.SPACER BUSH. SPROCKET SUPP.
-
2560110016000 NILOS RING 6006AVNILOS RING 6006AV
-
260625060060 BALL BEARING 6006 DDU2CG23S6NMBALL BEARING 6006 DDU2CG23S6NM
-
2760110014000 SPACER BUSH. SPR. SUPP. IN.SPACER BUSH. SPR. SUPP. IN.
-
2854610459000 RUBBER DAMPING BLOCKRUBBER DAMPING BLOCK
-
2960010060000 REAR BRAKE DISK D=240MMREAR BRAKE DISK D=240MM
-
3059009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
3275310085044 WHEEL SPINDLE M25X1,5 L=275MMWHEEL SPINDLE M25X1,5 L=275MM
-
3360010084000 CHAIN TENSIONER R/S LC8CHAIN TENSIONER R/S LC8
-
3460010086000 COLLAR NUT WH. SPINDLE REARCOLLAR NUT WH. SPINDLE REAR
-
3776510065116 CHAIN X-RING 116 + RIVET LINKCHAIN X-RING 116 + RIVET LINK
-
3876510066000 RIVET LINK FOR 76510065116RIVET LINK FOR 76510065116
