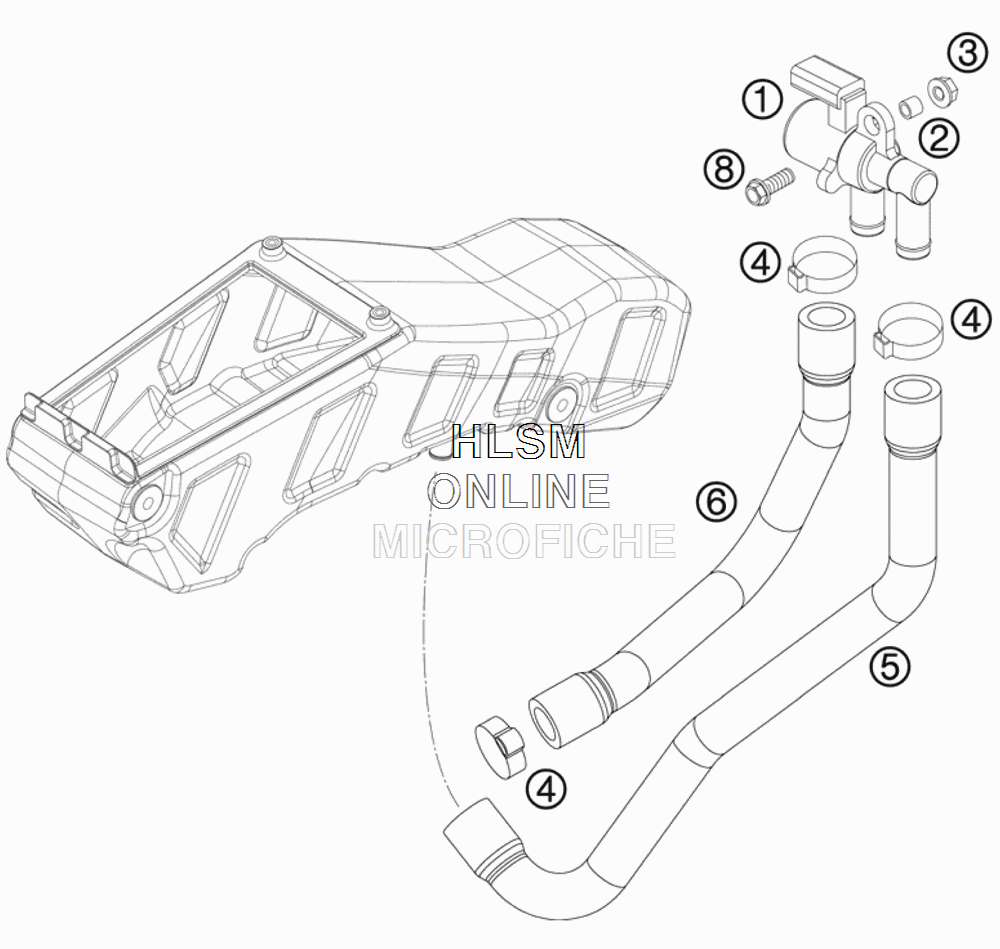

SECONDARY AIR SYSTEM SAS для Ktm 690 SMC - 2009 года выпуска
-
№АртикулНазвание
-
175005026000 SLS-VALVESLS-VALVE
-
258011039000 SPACER BUSHING 6,5 X 8 X 7SPACER BUSHING 6,5 X 8 X 7
-
356509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
400049200121 CLAMP STD DN20CLAMP STD DN20
-
576505021000 PREFORMED HOSE SAS AIR BOXPREFORMED HOSE SAS AIR BOX
-
676505027000 PRE. HOSE SAS BREATHER-COVERPRE. HOSE SAS BREATHER-COVER
-
80024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
