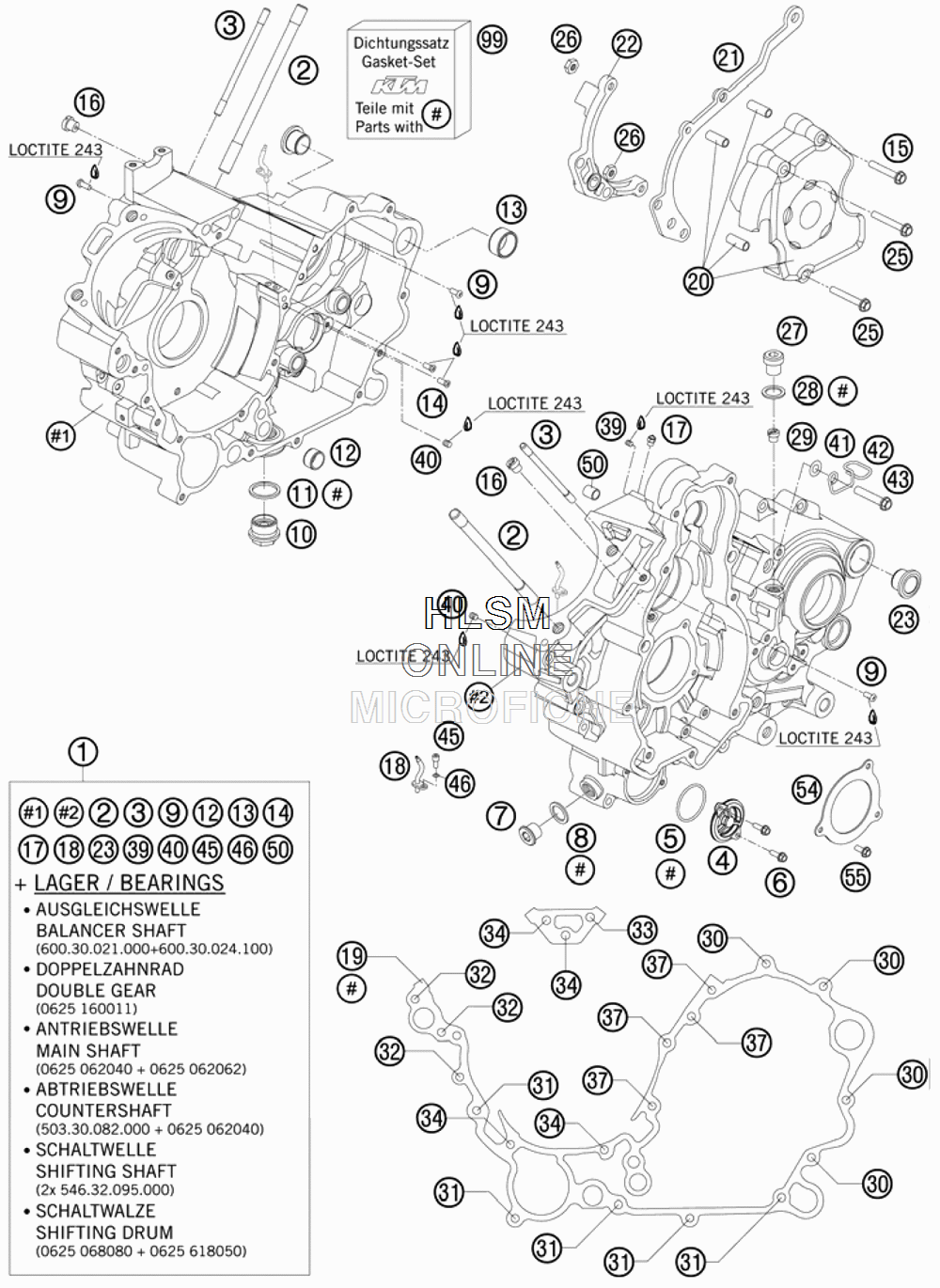

ENGINE CASE для Ktm 990 ADVENTURE R - 2009 года выпуска
-
№АртикулНазвание
-
1*6113000004423 ENGINE CASE CPL. WITH BEARINGSENGINE CASE CPL. WITH BEARINGS
-
260030043100 STUD M10X161STUD M10X161
-
360030043010 STUD M 6X101 10.9STUD M 6X101 10.9
-
4*75038041200 OILFILTER CAPOILFILTER CAP
-
5*0770039026 O-RING 39,34X2,62 NBR 70 SHO-RING 39,34X2,62 NBR 70 SH
-
60025050166 HH COLLAR SCREW M5X16 TX30HH COLLAR SCREW M5X16 TX30
-
760038033050 PLUG SCREW M14X1,5 ALU AHPLUG SCREW M14X1,5 ALU AH
-
80603142016 CU-SEAL RING 14X20X1,5 LC8 02CU-SEAL RING 14X20X1,5 LC8 02
-
90018050103 INT. TORX OVAL HEAD M 5X10 8.8INT. TORX OVAL HEAD M 5X10 8.8
-
1058038019050 DRAIN PLUG W. MAGNETDRAIN PLUG W. MAGNET
-
1158038017100 CU-SEAL RING DIN7603-22X27X2CU-SEAL RING DIN7603-22X27X2
-
1258330023000 DOWEL 17 X 14 X 9,5DOWEL 17 X 14 X 9,5
-
1360030023000 DOWEL 20,1X24X12DOWEL 20,1X24X12
-
140019050103 INT. TORX FLAT HEAD M 5X10 8.8INT. TORX FLAT HEAD M 5X10 8.8
-
150025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
1659030054000 JET 60 DELLORTO M6X0,75JET 60 DELLORTO M6X0,75
-
17*60030066000 OIL JET CURVED "70" BLUEOIL JET CURVED "70" BLUE
-
18*60030064100 OIL JET CURVED "70" GREENOIL JET CURVED "70" GREEN
-
1960030039100 ENGINE CASE GASKET 0,5MMENGINE CASE GASKET 0,5MM
-
2060030060044 CHAIN SPROCKET COVER CPL.CHAIN SPROCKET COVER CPL.
-
2160030047000 CHAIN FAIL. PROTECTION LC8CHAIN FAIL. PROTECTION LC8
-
2260032063000 ADAPTER F. HYDR. CLUTCHADAPTER F. HYDR. CLUTCH
-
2360030010000 SWING BEARING OUTSIDE LC8SWING BEARING OUTSIDE LC8
-
250025060356 HH COLLAR SCREW M6X35 TX30HH COLLAR SCREW M6X35 TX30
-
260985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
2749030029000 OIL DRAIN PLUG M10X1,5 AH-WS=6OIL DRAIN PLUG M10X1,5 AH-WS=6
-
280603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
2960038029200 REDUCING JET "30" M6X0,75REDUCING JET "30" M6X0,75
-
300025060406 HH COLLAR SCREW M6X40 TX30HH COLLAR SCREW M6X40 TX30
-
310025060606 HH COLLAR SCREW M6X60 TX30HH COLLAR SCREW M6X60 TX30
-
320025060656 HH COLLAR SCREW M6X65 TX30HH COLLAR SCREW M6X65 TX30
-
330025060706 HH COLLAR SCREW M6X70 TX30HH COLLAR SCREW M6X70 TX30
-
340025060756 HH COLLAR SCREW M6X75 TX30HH COLLAR SCREW M6X75 TX30
-
370025060906 HH COLLAR SCREW M6X90 TX30HH COLLAR SCREW M6X90 TX30
-
390916050042 THREAD PIN DIN916 M5X4-45HTHREAD PIN DIN916 M5X4-45H
-
400551060050 THREAD PIN DIN0551-M 6X 5THREAD PIN DIN0551-M 6X 5
-
410125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
4260011094000 CABLE SUPPORTCABLE SUPPORT
-
430024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
450912040103 AH.SCREW DIN0912-M 4X10AH.SCREW DIN0912-M 4X10
-
460770035020 O-RING 3,5X2,00 NBRO-RING 3,5X2,00 NBR
-
5049030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
5460030084000 BRACKET FOR BEARING INSERTBRACKET FOR BEARING INSERT
-
550025050126 HH COLLAR SCREW M5X12 TX30HH COLLAR SCREW M5X12 TX30
-
9960030099000 GASKET SET CPL.GASKET SET CPL.
