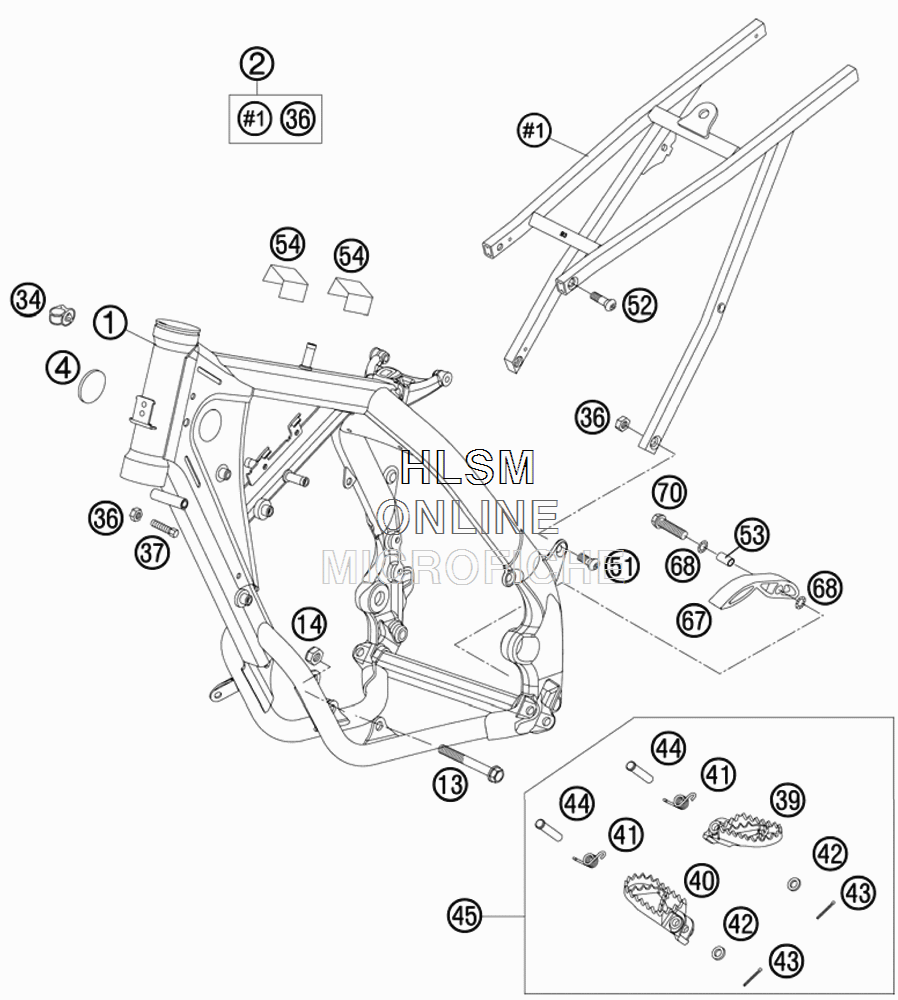

FRAME SUBFRAME для Ktm 105 SX - 2010 года выпуска
-
№АртикулНазвание
-
14700300120030 FRAME CPL. 85 SX "AA06"FRAME CPL. 85 SX "AA06"
-
247003002144 SUB FRAME 85 SXSUB FRAME 85 SX
-
454606004000 PLUG 37MMPLUG 37MM
-
1347003013000 ENGINE BRACKET SCREW 85 SXENGINE BRACKET SCREW 85 SX
-
1454310086100 SELF LOCKING NUT M10 CU WS=14SELF LOCKING NUT M10 CU WS=14
-
3458111076000 CABLE SUPPORT KHS NR.150-47610CABLE SUPPORT KHS NR.150-47610
-
360934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
3759001037000 SPECIAL SCREW M8X26 WS=10SPECIAL SCREW M8X26 WS=10
-
3959003040050 FOOT PED L/S EXC SILVERFOOT PED L/S EXC SILVER
-
4059003041050 FOOT PED R/S EXC SILVERFOOT PED R/S EXC SILVER
-
4154603041000 FOOTREST SPRING L/S & R/SFOOTREST SPRING L/S & R/S
-
420125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
430094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
4454803044000 BOLT FOR FOOT PEDBOLT FOR FOOT PED
-
454700304003390 FOOTPEG L.+R. CPL. 85 SXFOOTPEG L.+R. CPL. 85 SX
-
5154610052000 SPROCKET SCREW-AH M8X20 WS=6SPROCKET SCREW-AH M8X20 WS=6
-
5254510052100 SPROCKET SCREW-AH M8X26 WS=6SPROCKET SCREW-AH M8X26 WS=6
-
5351103053051 BUSHING 8,2X10X20BUSHING 8,2X10X20
-
5458711054050 METAMOLL FOR BATTERY BRACKETMETAMOLL FOR BATTERY BRACKET
-
6751103053000 CHAIN SLIDING PIECE BELOWCHAIN SLIDING PIECE BELOW
-
6836003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
700025080306 HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
