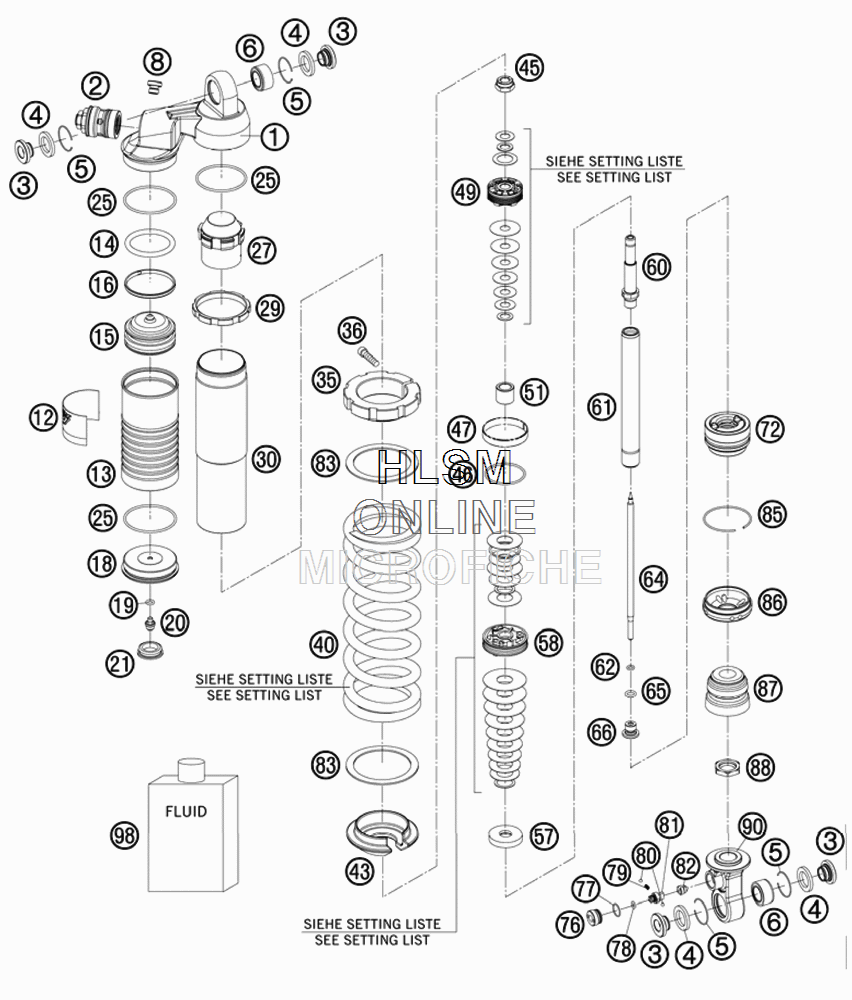

MONOSHOCK DISASSEMBLED для Ktm 105 SX - 2010 года выпуска

№

Артикул

Название
1

46180348 SHOCK ABSORBER TOP H40 135DEG.

SHOCK ABSORBER TOP H40 135DEG.

70 690 ₽
2

50180213S10 DCC-COMPR.DAMP.CONTROL CPL.

DCC-COMPR.DAMP.CONTROL CPL.

32 570 ₽
3

46180007 ADAPTOR BUSH KGW 12X24

ADAPTOR BUSH KGW 12X24

4 650 ₽
4

46180003 OIL SEAL KGW D=25

OIL SEAL KGW D=25

1 480 ₽
5

50180168 WASHER KGW D=25

WASHER KGW D=25

190 ₽
6

50180005 BUSHING KGW 1525 HD

BUSHING KGW 1525 HD

24 960 ₽
8

50180095 BLEED PLUG R 1/8

BLEED PLUG R 1/8

990 ₽
12

52000014 STICKER WP 35X55

STICKER WP 35X55

1 060 ₽
13

50180522 RES. SCREW L=100 D=52 BLACK

RES. SCREW L=100 D=52 BLACK

39 370 ₽
14

46180014 O-RING VITON 41X5

O-RING VITON 41X5

350 ₽
15

46180002 SEPARATION PISTON D=52, H=32

SEPARATION PISTON D=52, H=32

10 070 ₽
16

46180015 PISTON RING 3,9X1,5X156

PISTON RING 3,9X1,5X156

2 300 ₽
18

50180344 RESERVOIR CAP D=58

RESERVOIR CAP D=58

38 330 ₽
19

46810893 O-RING NBR 5,28X1,78

O-RING NBR 5,28X1,78

140 ₽
20

36120151 SCREW PLUG M5X6

SCREW PLUG M5X6

2 840 ₽
21

46811208 RUBBER CAP "DO NOT OPEN"

RUBBER CAP "DO NOT OPEN"

540 ₽
25

46810016 O-RING NBR 48X2

O-RING NBR 48X2

140 ₽
27

46180340 SLEEVE D=48

SLEEVE D=48

0 ₽
29

46180352 LOCK WASHER M52X1,5

LOCK WASHER M52X1,5

14 220 ₽
30

46180345 TUBE M52X1,5

TUBE M52X1,5

0 ₽
35

46180353 SPRING RETAINER M52X1,5

SPRING RETAINER M52X1,5

40 200 ₽
36

0912050253 AH SCREW DIN0912-M 5X25

AH SCREW DIN0912-M 5X25

160 ₽
40

91010201 SPRING (59) 215 45 N/MM D=10

SPRING (59) 215 45 N/MM D=10

40 810 ₽
40

91010272 SPRING 215 30 N/MM D=9,00 ORAN

SPRING 215 30 N/MM D=9,00 ORAN

40 810 ₽
40

91010273 SPRING 215 35 N/MM D=9,25 ORAN

SPRING 215 35 N/MM D=9,25 ORAN

40 810 ₽
40

91010274S SPRING 215 40 N/MM D=9,50 ORG

SPRING 215 40 N/MM D=9,50 ORG

40 810 ₽
40

46180349 SPRING WASHER H=15 D=28

SPRING WASHER H=15 D=28

8 330 ₽
45

46180356 PISTON ROD NUT M10X1

PISTON ROD NUT M10X1

1 780 ₽
46

46810035 O-RING VITON 37,82X1,78

O-RING VITON 37,82X1,78

280 ₽
47

46811206 PISTON RING 8X46

PISTON RING 8X46

8 250 ₽
49

14460016 PISTON + PISTON SPRING

PISTON + PISTON SPRING

15 700 ₽
51

46180339 SEPARATION BUSH 17X12X18

SEPARATION BUSH 17X12X18

9 440 ₽
57

46180179 REBOUND DISC H=0

REBOUND DISC H=0

0 ₽
57

46180337 REBOUND DISC H=4

REBOUND DISC H=4

8 820 ₽
58

46180441 PISTON 5X4,5X/6X6

PISTON 5X4,5X/6X6

33 320 ₽
60

46180343 TAP PISTON ROD D=13,5

TAP PISTON ROD D=13,5

0 ₽
61

46180342S SPINDEL D=18 LC=159 CPL.

SPINDEL D=18 LC=159 CPL.

47 460 ₽
62

50180397 O-RING VITON 5X1,5

O-RING VITON 5X1,5

80 ₽
64

46180346 NEEDLE REBOUND L=169

NEEDLE REBOUND L=169

4 020 ₽
65

46180018 O-RING NBR 7,5X2

O-RING NBR 7,5X2

330 ₽
66

46180350 NEEDLE GUIDE

NEEDLE GUIDE

2 890 ₽
72

46180669S ADAPTOR CPL. D=46 H=28 07

ADAPTOR CPL. D=46 H=28 07

20 230 ₽
76

46180355 RESERVOIR CAP M16X1

RESERVOIR CAP M16X1

9 200 ₽
77

46180013 O-RING NBR 12X1

O-RING NBR 12X1

400 ₽
78

50180222 O-RING NBR 4X1,5

O-RING NBR 4X1,5

60 ₽
79

48600028 SPRING D=2,9 L=7,9

SPRING D=2,9 L=7,9

660 ₽
80

40540603 STEEL BALL D=3MM

STEEL BALL D=3MM

60 ₽
81

46180006 ADJUSTING SCREW L=15,5

ADJUSTING SCREW L=15,5

6 080 ₽
82

46180016 ADJUSTING ADAPTOR REBOUND

ADJUSTING ADAPTOR REBOUND

11 620 ₽
83

50180410 INTERM.RING D=58

INTERM.RING D=58

1 050 ₽
85

46810010 CIRCLIP 49X1,5

CIRCLIP 49X1,5

530 ₽
86

46180338 CAP D=46 H=9,5

CAP D=46 H=9,5

9 290 ₽
87

50180276 BUMP RUBBER WP60 D=18-26

BUMP RUBBER WP60 D=18-26

3 360 ₽
88

50180283 CONTRA NUT M18X1 H=5

CONTRA NUT M18X1 H=5

3 080 ₽
90

46180347 SHOCK ABSORBER BOT. KGW L=54,5

SHOCK ABSORBER BOT. KGW L=54,5

68 950 ₽
98

50180342S1 SHOCK ABSORBER FLUID 5 LT

SHOCK ABSORBER FLUID 5 LT

53 390 ₽
