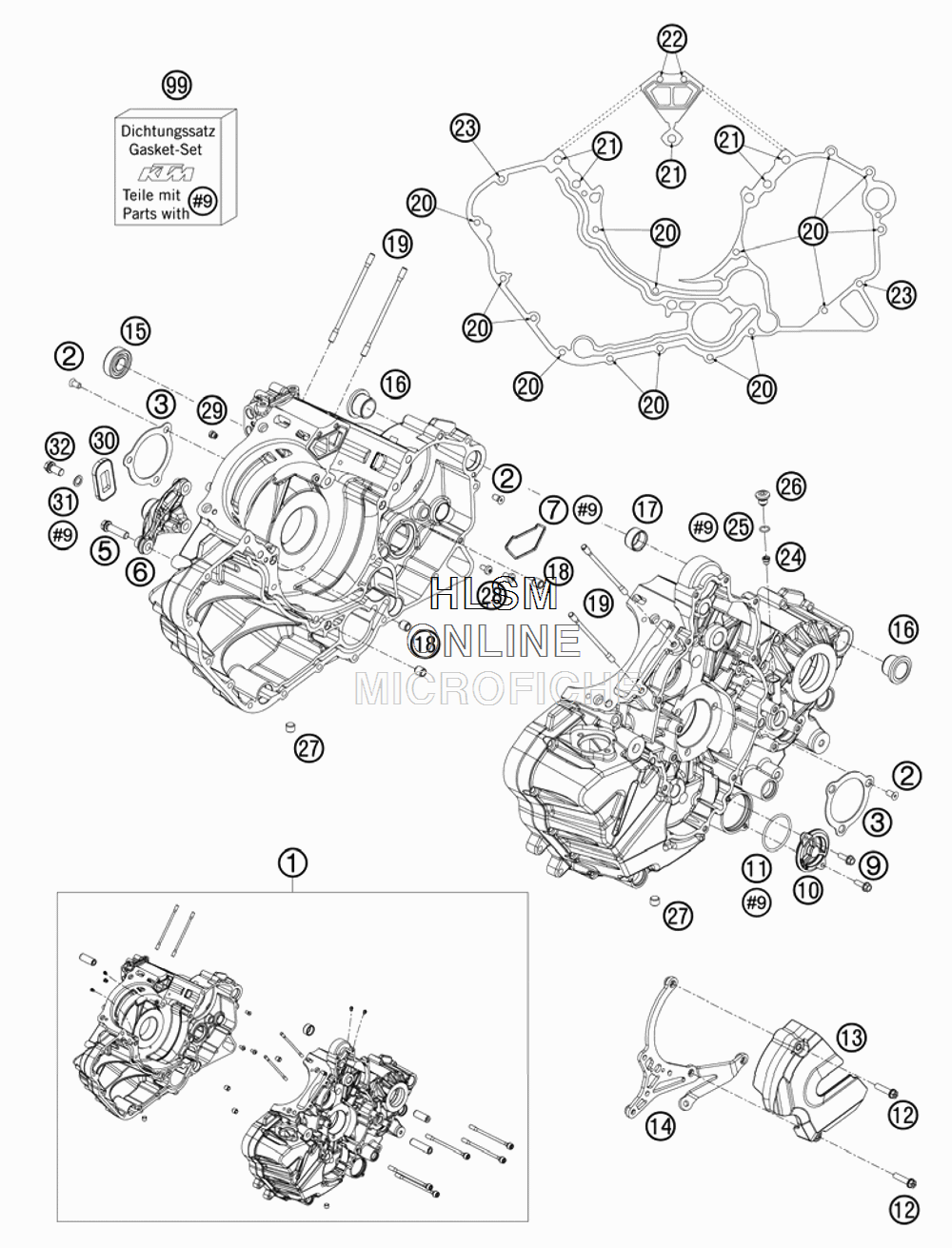

ENGINE CASE для Ktm 1190 RC8 (ORANGE) - 2010 года выпуска
-
№АртикулНазвание
-
16123000004424 ENGINE CASE CPL. WITH BEARINGSENGINE CASE CPL. WITH BEARINGS
-
20019050103 INT. TORX FLAT HEAD M 5X10 8.8INT. TORX FLAT HEAD M 5X10 8.8
-
361230084000 BRACKET FOR BEARING INSERTBRACKET FOR BEARING INSERT
-
50025080306 HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
661230066100 ENGINE BRACKET R/SENGINE BRACKET R/S
-
761230039100 MOLDED RING CASE CENTERMOLDED RING CASE CENTER
-
90025050166 HH COLLAR SCREW M5X16 TX30HH COLLAR SCREW M5X16 TX30
-
1075038041200 OILFILTER CAPOILFILTER CAP
-
110770039026 O-RING 39,34X2,62 NBR 70 SHO-RING 39,34X2,62 NBR 70 SH
-
120025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
1369030060044 PINION COVER CPL.PINION COVER CPL.
-
1461230047044 CHAIN FAIL. PROTECTION CPL.CHAIN FAIL. PROTECTION CPL.
-
150412153511 CYL.ROLLER BEAR. NJ202 ECP C3CYL.ROLLER BEAR. NJ202 ECP C3
-
1660030010000 SWING BEARING OUTSIDE LC8SWING BEARING OUTSIDE LC8
-
1760030023000 DOWEL 20,1X24X12DOWEL 20,1X24X12
-
1849030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
1961230044000 STUD M6X110STUD M6X110
-
200025060806 HH COLLAR SCREW M6X80 TX30HH COLLAR SCREW M6X80 TX30
-
2161230043000 CASE SCREW M8X125 ASCASE SCREW M8X125 AS
-
220025060906 HH COLLAR SCREW M6X90 TX30HH COLLAR SCREW M6X90 TX30
-
230025060606 HH COLLAR SCREW M6X60 TX30HH COLLAR SCREW M6X60 TX30
-
2460038029200 REDUCING JET "30" M6X0,75REDUCING JET "30" M6X0,75
-
250770090015 O-RING 9X1,5 NBRO-RING 9X1,5 NBR
-
2677336056095 SCREW PLUGSCREW PLUG
-
270906200100 PLUG DIN0913-M10X1X8PLUG DIN0913-M10X1X8
-
280018050103 INT. TORX OVAL HEAD M 5X10 8.8INT. TORX OVAL HEAD M 5X10 8.8
-
2957031523140 MAIN JET 140MAIN JET 140
-
3060005026000 SLS-VALVESLS-VALVE
-
3145038017000 SEAL RING 8X14X1 AISEAL RING 8X14X1 AI
-
320025080166 HH COLLAR SCREW M8X16 TX40HH COLLAR SCREW M8X16 TX40
-
9961230099100 GASKET KIT ENGINE CPL.GASKET KIT ENGINE CPL.
