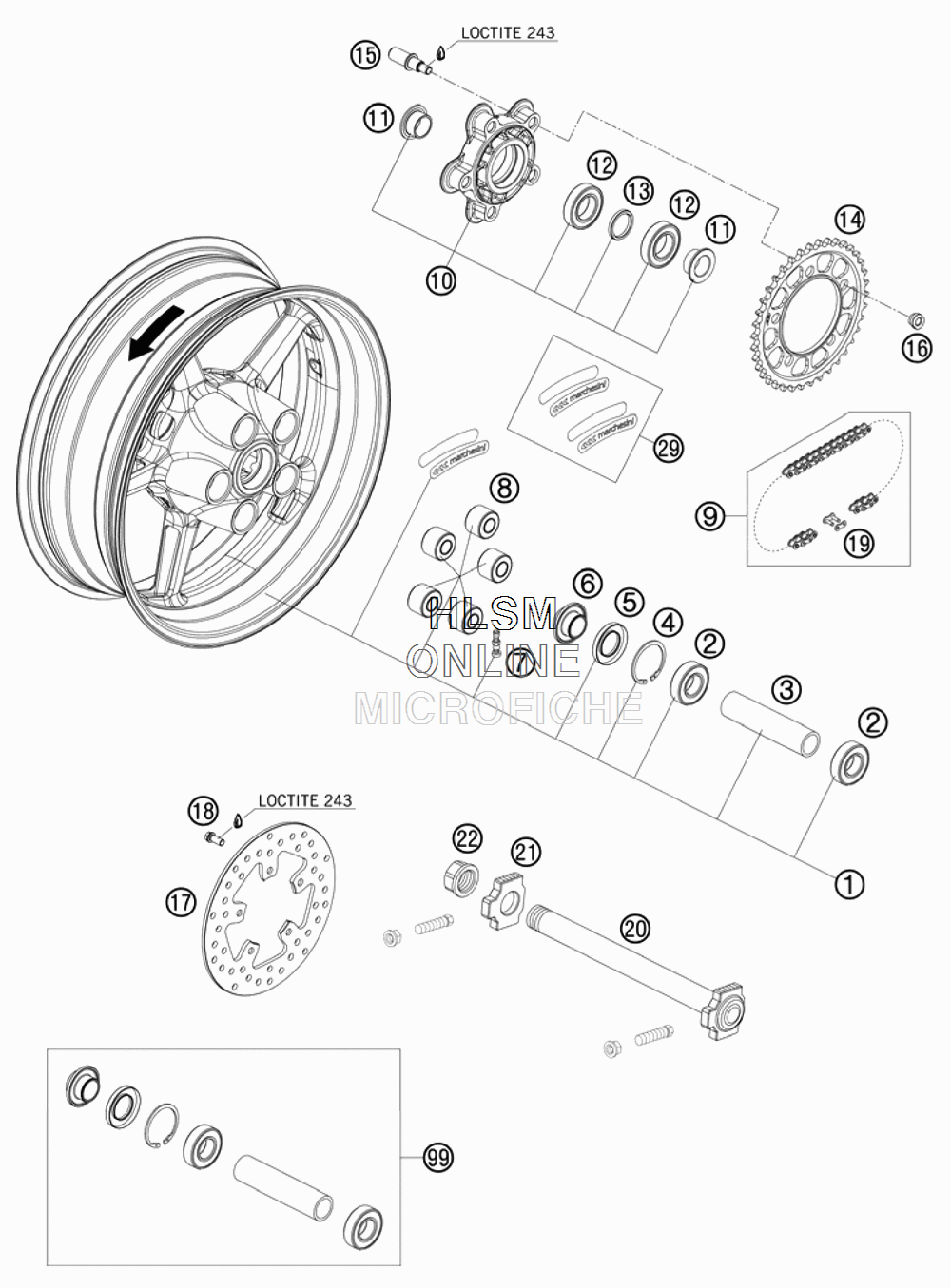

REAR WHEEL для Ktm 1190 RC8 (ORANGE) - 2010 года выпуска
-
№АртикулНазвание
-
16901000104430 REARWHEEL ALU BLACK 6,0X17REARWHEEL ALU BLACK 6,0X17
-
20625062052 GR.BALL BEAR. 6205-2RSHC3HMTF7GR.BALL BEAR. 6205-2RSHC3HMTF7
-
369010011000 BEARING SPACER TUBEBEARING SPACER TUBE
-
40472052200 CIRCLIP DIN0472-52X2CIRCLIP DIN0472-52X2
-
50760305271 SHAFT SEAL RING 30X52X7SHAFT SEAL RING 30X52X7
-
669010013000 DIST.BUSHING REAR WHEEL R/SDIST.BUSHING REAR WHEEL R/S
-
758709076000 VALVE CPL. BREMBO DUKEVALVE CPL. BREMBO DUKE
