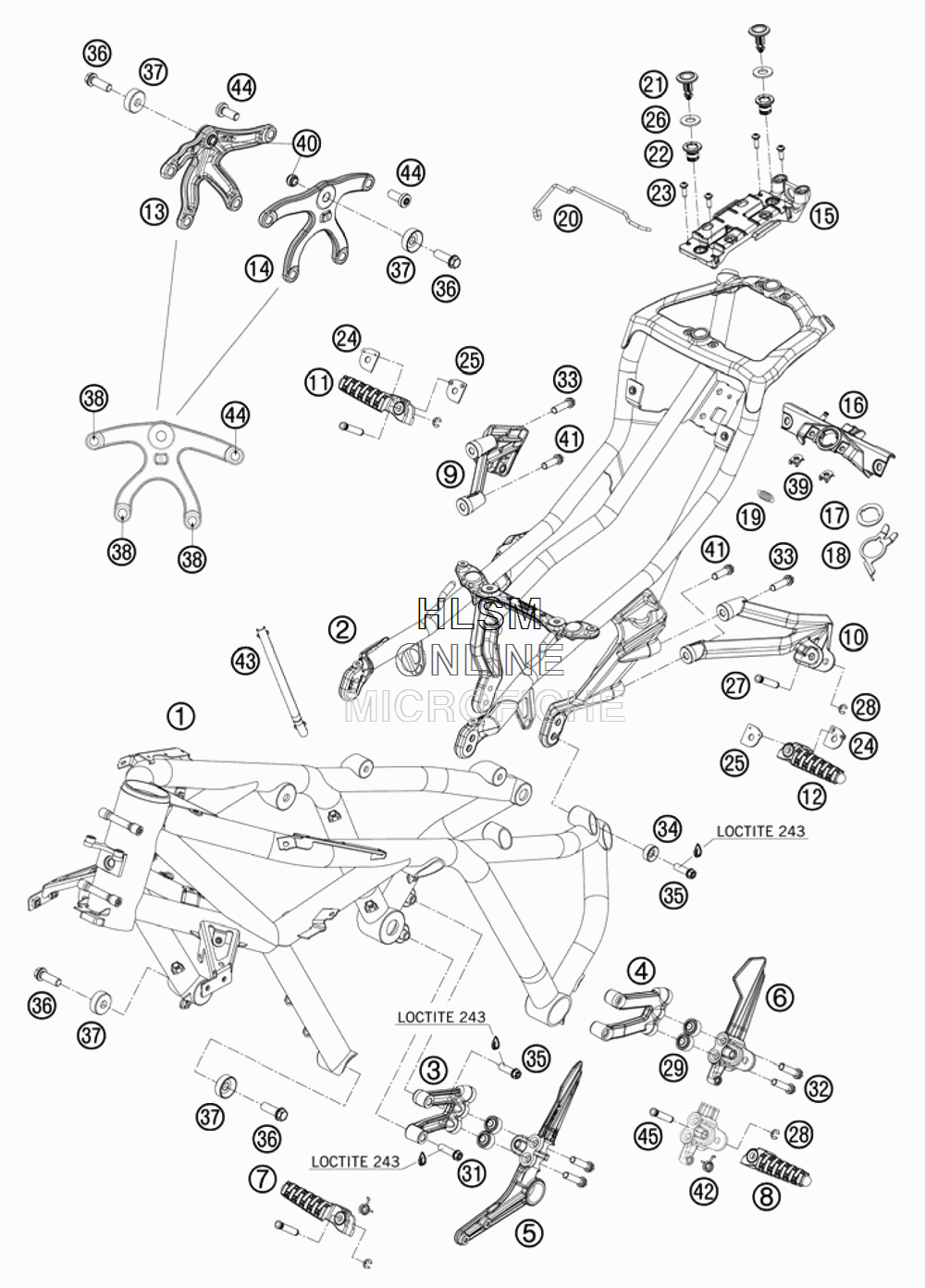

FRAME для Ktm 1190 RC8-R - 2010 года выпуска
-
№АртикулНазвание
-
16900300100004 FRAME "OA08" ORANGEFRAME "OA08" ORANGE
-
26900300200033 SUB FRAME BLACKSUB FRAME BLACK
-
36900303900033S FOOTREST BRACKET R/SFOOTREST BRACKET R/S
-
46900303800033S FOOTREST BRACKET L/SFOOTREST BRACKET L/S
-
56900303905033S FOOTREST MOUNTING R/SFOOTREST MOUNTING R/S
-
66900303805033S FOOTREST MOUNTING L/SFOOTREST MOUNTING L/S
-
76900304100033S FOOTREST FRONT R/SFOOTREST FRONT R/S
-
86900304000033S FOOTREST FRONT L/SFOOTREST FRONT L/S
-
96900304900033S FOOTREST BRACKET REAR R/SFOOTREST BRACKET REAR R/S
-
106900304800033S FOOTREST BRACKET REAR L/SFOOTREST BRACKET REAR L/S
-
116900305103333S FOOTREST REAR R/S CPL.FOOTREST REAR R/S CPL.
-
126900305003333S FOOTREST REAR L/S CPL.FOOTREST REAR L/S CPL.
-
136900300600033S ENGINE SUPPORT R/S BLACKENGINE SUPPORT R/S BLACK
-
146900300500033S ENGINE SUPPORT L/S BLACKENGINE SUPPORT L/S BLACK
-
1569008025000 REAR SEAT ADJUSTMENTREAR SEAT ADJUSTMENT
-
1669008027000 LOCK BRIDGELOCK BRIDGE
-
1769008025070 WASHER LEVER REAR SEAT RELEASEWASHER LEVER REAR SEAT RELEASE
-
1869008025160 LEVER REAR SEAT RELEASELEVER REAR SEAT RELEASE
-
1969008025080 SPRING F. REAR SEAT LOCKSPRING F. REAR SEAT LOCK
-
2069008025150 ADJUSTMENT WIRE REAR SEATADJUSTMENT WIRE REAR SEAT
-
2169008026050 CLOSURE CAPCLOSURE CAP
-
2269008026000 GUIDE BUSHINGGUIDE BUSHING
-
230081050161 EJOT PT SCREW K50X16 1451EJOT PT SCREW K50X16 1451
-
2460003052000 ENGAGE PANEL FOOTREST R/SENGAGE PANEL FOOTREST R/S
-
2560003152000 ENGAGE PANEL FOOTREST L/SENGAGE PANEL FOOTREST L/S
-
2669008026060 WASHER RC8WASHER RC8
-
2760003044000 BOLT FOR FOOTREST REARBOLT FOR FOOTREST REAR
-
280799060003 TAB WASHER DIN6799-RS 6,0TAB WASHER DIN6799-RS 6,0
-
296900304700001 DISTANCE BUSHING 8,5X21X14DISTANCE BUSHING 8,5X21X14
-
310025080306S HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
320025080356S HH COLLAR SCREW M8X35 TX40HH COLLAR SCREW M8X35 TX40
-
330025080556 HH COLLAR SCREW M8X55 TX40HH COLLAR SCREW M8X55 TX40
-
346900300400033 WASHER SUB FRAME MOUNTINGWASHER SUB FRAME MOUNTING
-
350025080256S HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
360035100309S AH-COLLAR SCREW M10X30 ISA45AH-COLLAR SCREW M10X30 ISA45
-
376900300700033 WASHER ENGINE SUPPORTWASHER ENGINE SUPPORT
-
380035100249 AH-COLLAR SCREW M10X24 ISA45AH-COLLAR SCREW M10X24 ISA45
-
3969008021080 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
4069004095000 ADAPTOR NUT M10ADAPTOR NUT M10
-
410025080506 HH COLLAR SCREW M8X50 TX40HH COLLAR SCREW M8X50 TX40
-
4261003042000 SPRING FOOTREST FRONTSPRING FOOTREST FRONT
-
4369011047000 CABLE DUCT BRAKE LIGHT SW. RC8CABLE DUCT BRAKE LIGHT SW. RC8
-
440025100246 COLLAR SCREW M10X24 TXCOLLAR SCREW M10X24 TX
-
4560003044100 BOLT FOR FOOTREST REARBOLT FOR FOOTREST REAR
