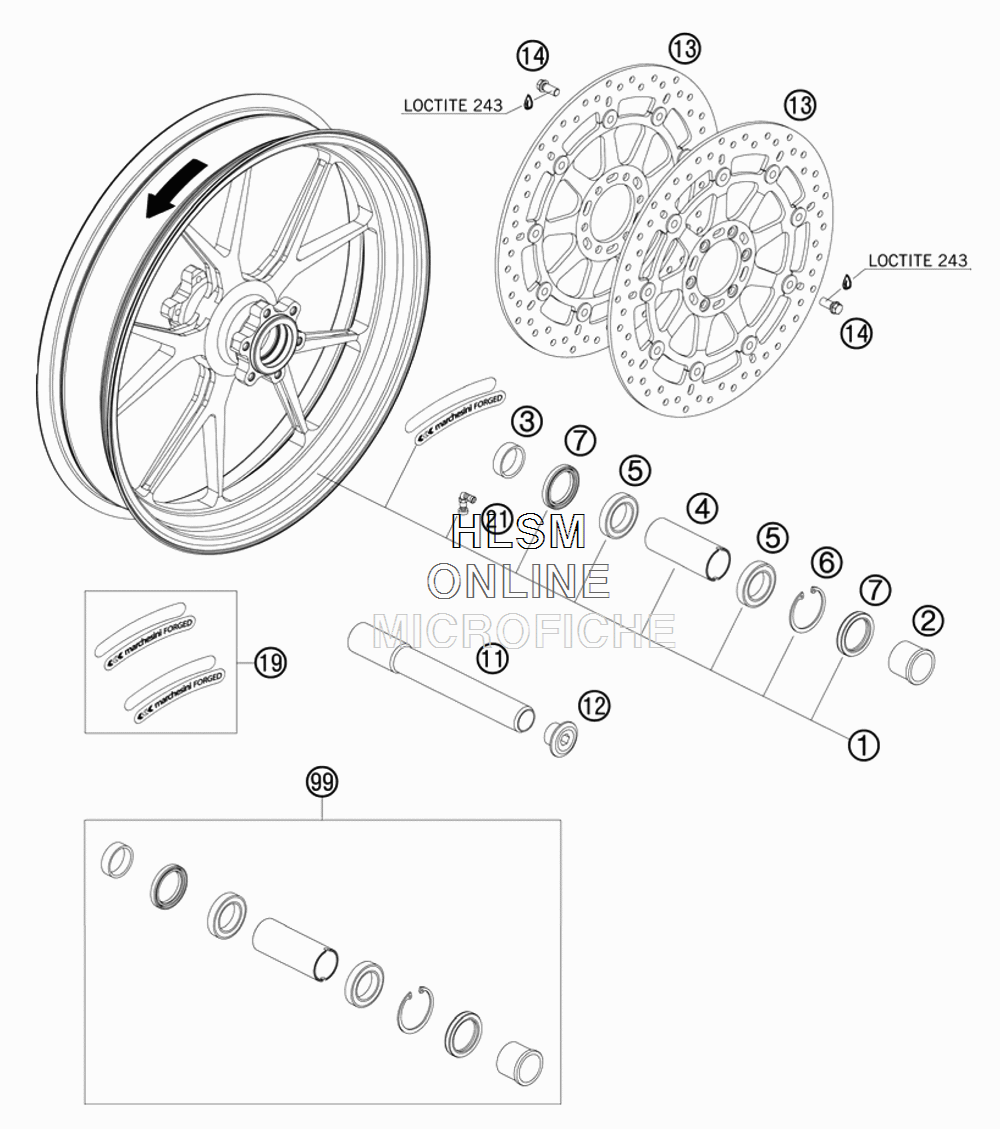

FRONT WHEEL для Ktm 1190 RC8-R - 2010 года выпуска
-
№АртикулНазвание
-
16910900104430 FRONT WHEEL RC8-R CPL. BLACKFRONT WHEEL RC8-R CPL. BLACK
-
261009012000 SPACER BUSH. FR. WHEEL L/SSPACER BUSH. FR. WHEEL L/S
-
360009013000 SPACER BUSH. FR. WHEEL R/SSPACER BUSH. FR. WHEEL R/S
-
462609011000 BEARING SPACER TUBE FRONTBEARING SPACER TUBE FRONT
-
5625069068 GR.BALL BEAR.6906 DDU2CG23S6NMGR.BALL BEAR.6906 DDU2CG23S6NM
-
60472048175 LOCK RING DIN0472-48X1,75LOCK RING DIN0472-48X1,75
-
70760354771 SHAFT SEAL RING 35X47X7 TCSHAFT SEAL RING 35X47X7 TC
-
1161009081000 WHEEL SPINDEL FRONTWHEEL SPINDEL FRONT
-
126900103600001 STEERING HEAD SCREWSTEERING HEAD SCREW
-
136900906000030 BRAKE-DISC FRONT D=320X5BRAKE-DISC FRONT D=320X5
-
1461009062018 SPECIAL SCREW M8X18 05SPECIAL SCREW M8X18 05
-
1900050000121 STICKER MARCH. 2L/S+2R/S YELL.STICKER MARCH. 2L/S+2R/S YELL.
-
2161009076000 VALVE ANGLED 90°VALVE ANGLED 90°
-
9969109015000 FRONT WHEEL REPAIR KITFRONT WHEEL REPAIR KIT
