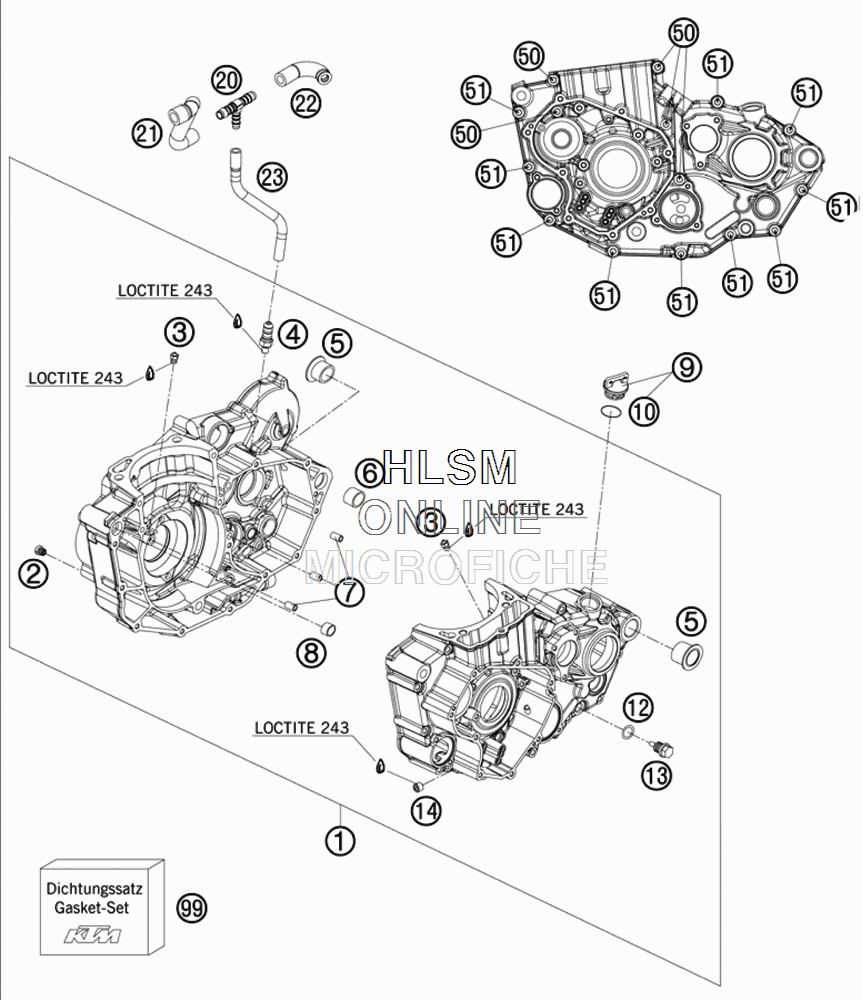

ENGINE CASE для Ktm 400 XC-W - 2010 года выпуска
-
№АртикулНазвание
-
1*78030000344 ENGINE CASE CPL. W.BEARINGS 10ENGINE CASE CPL. W.BEARINGS 10
-
257031523125 MAIN JET 125MAIN JET 125
-
360030063070 OIL JET 70 M5OIL JET 70 M5
-
4*78036020090 VACUUM CONNECTION M6VACUUM CONNECTION M6
-
575030010000 CASE BUSHCASE BUSH
-
654830027000 DOWEL 21X12DOWEL 21X12
-
759030023000 DOWEL 6X8X11,5DOWEL 6X8X11,5
-
851030026100 DOWEL 17 X 13 X 12DOWEL 17 X 13 X 12
-
958030020100 PLUG CPL. M24X3PLUG CPL. M24X3
-
100770191015 O-RING 19,00X3,00 NBRO-RING 19,00X3,00 NBR
-
1258038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
1358030021000 OILDRAIN PLUG W.MAG. M 12X1,5OILDRAIN PLUG W.MAG. M 12X1,5
-
140906100100 PLUG DIN0906-M10X1PLUG DIN0906-M10X1
-
2078030071000 T-PIECE 10/10/8MMMT-PIECE 10/10/8MMM
-
2178030087010 ENGINE BREATH HOSEENGINE BREATH HOSE
-
2278030087000 CARBURETOR BREATH HOSECARBURETOR BREATH HOSE
-
2378030087020 ENGINE CASE BREATH HOSEENGINE CASE BREATH HOSE
-
500025060756 HH COLLAR SCREW M6X75 TX30HH COLLAR SCREW M6X75 TX30
-
510025060606 HH COLLAR SCREW M6X60 TX30HH COLLAR SCREW M6X60 TX30
-
9978030099000 GASKET SET 450/530 EXCGASKET SET 450/530 EXC
