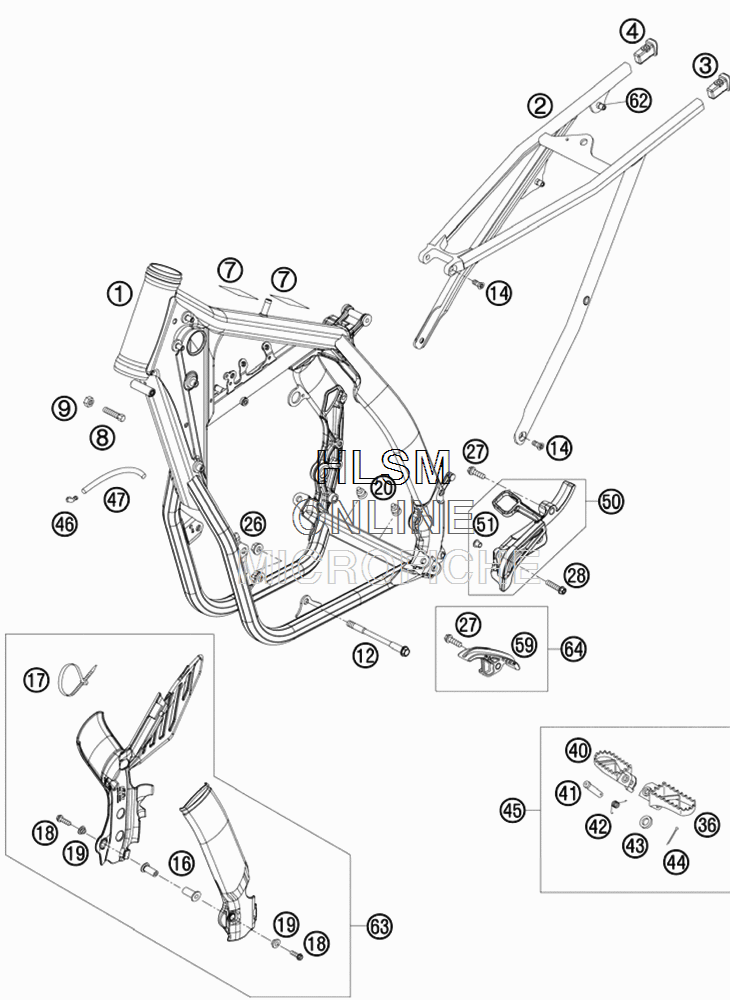

FRAME для Ktm 400 XC-W - 2010 года выпуска

№

Артикул

Название
1*

7800300140033 FRAME BLACK MATT "DB10"

FRAME BLACK MATT "DB10"

340 ₽
2

77303002000 SUB FRAME SX "Q7"

SUB FRAME SX "Q7"

95 960 ₽
3

78003002010 SUB FRAME APPLICATION LEFT

SUB FRAME APPLICATION LEFT

0 ₽
4

78003002020 SUB FRAME APPLICATION RIGHT

SUB FRAME APPLICATION RIGHT

0 ₽
7

50307012000 ADH. FOIL TRANSP. 80X80 MM

ADH. FOIL TRANSP. 80X80 MM

330 ₽
8

59001037000 SPECIAL SCREW M8X26 WS=10

SPECIAL SCREW M8X26 WS=10

560 ₽
9

934080003 HEXAGON NUT DIN0934-M 8

HEXAGON NUT DIN0934-M 8

0 ₽
12

59003013000 ENGINEBRAC.SCREW M10X123 WS=13

ENGINEBRAC.SCREW M10X123 WS=13

2 160 ₽
14

0019080206S FLAT HEAD SCREW M. ISA45 M8X20

FLAT HEAD SCREW M. ISA45 M8X20

440 ₽
16

54803092050 BLIND PLUG-IN NUT M5 WN 22A

BLIND PLUG-IN NUT M5 WN 22A

1 170 ₽
17

44011076305 CABLE TIE 300/4,8MM BLACK

CABLE TIE 300/4,8MM BLACK

290 ₽
18

738050250 COU.SUNK SCR. AH ISO7380 M5X25

COU.SUNK SCR. AH ISO7380 M5X25

0 ₽
19

54803092060 BUSH F. FRAME PROTECTION

BUSH F. FRAME PROTECTION

820 ₽
20

54403135000 PLASTIC CAP SFL10

PLASTIC CAP SFL10

380 ₽
26

54310086100 SELF LOCKING NUT M10 CU WS=14

SELF LOCKING NUT M10 CU WS=14

410 ₽
27

25080306 HH COLLAR SCREW M8X30 TX40

HH COLLAR SCREW M8X30 TX40

0 ₽
28

25060356 HH COLLAR SCREW M6X35 TX30

HH COLLAR SCREW M6X35 TX30

0 ₽
36*

78003040050 FOOTREST L/S

FOOTREST L/S

11 770 ₽
40*

78003041050 FOOTREST R/S

FOOTREST R/S

11 770 ₽
41

54803044000 BOLT FOR FOOT PED

BOLT FOR FOOT PED

3 330 ₽
42

54603041000 FOOTREST SPRING L/S & R/S

FOOTREST SPRING L/S & R/S

1 110 ₽
43

125100003 WASHER DIN0125-A10,5

WASHER DIN0125-A10,5

0 ₽
44

94032253 PIN DIN0094-3,2X25 STEEL

PIN DIN0094-3,2X25 STEEL

0 ₽
45*

78003040033 FOOTREST L/S + R/S CPL.

FOOTREST L/S + R/S CPL.

31 340 ₽
46

50303089000 ANGEL PIECE

ANGEL PIECE

1 160 ₽
47

55007016001 PVC-HOSE 7X10 PER METER

PVC-HOSE 7X10 PER METER

1 640 ₽
50

78003096000 CHAIN SPR. COV. 450/525 EXC-F

CHAIN SPR. COV. 450/525 EXC-F

4 000 ₽
51

58314060050 SPACER BUSH. F. SPEEDOMET.BRA.

SPACER BUSH. F. SPEEDOMET.BRA.

1 260 ₽
59

77303053000 CHAIN SLIDING PIECE BELOW

CHAIN SLIDING PIECE BELOW

2 160 ₽
62

77303139000 BLIND RIVET NUT EM6-60LF/HX ET

BLIND RIVET NUT EM6-60LF/HX ET

880 ₽
63

77303094100 PLASTIC FRAME PROTECTION S

PLASTIC FRAME PROTECTION S

7 840 ₽
64

77303053010 CHAIN SLIDING P. BELOW CPL.

CHAIN SLIDING P. BELOW CPL.

2 640 ₽
