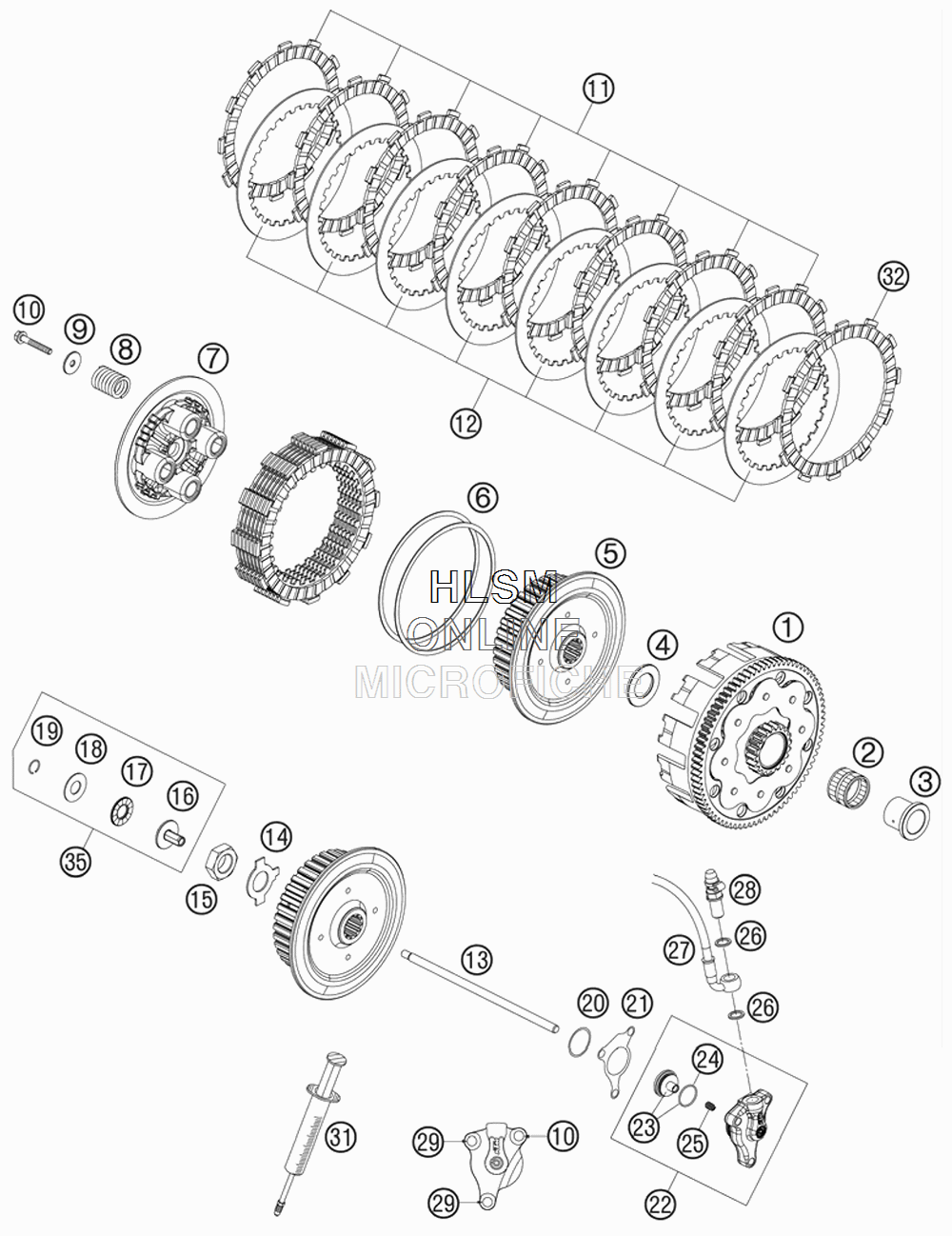

CLUTCH для Ktm 450 XCW Champions Edition - 2010 года выпуска
-
№АртикулНазвание
-
178032001000 CLUTCH CAGE CPL.CLUTCH CAGE CPL.
-
256532095000 NEEDLE BEARING K26X30X22ZW.KSENEEDLE BEARING K26X30X22ZW.KSE
-
378032015000 INNER RINGINNER RING
-
478032020000 STOP DISCSTOP DISC
-
578032002200 INNER CLUTCH HUBINNER CLUTCH HUB
-
678032009000 JUDDER SPRING CPL.JUDDER SPRING CPL.
-
778032003100 PRESSURE PLATEPRESSURE PLATE
-
878032005000 CLUTCH SPRINGCLUTCH SPRING
-
958432081000 WASHER 6,5 X 20 X 2WASHER 6,5 X 20 X 2
-
100025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
1178032011000 LINING DISCLINING DISC
-
1278032010100 FRICTION PLATE STEELFRICTION PLATE STEEL
-
1378032054100 PUSH ROD L=186PUSH ROD L=186
-
1477332018000 RETAINING PLATERETAINING PLATE
-
150936181505 HEXAGON NUT DIN0936-M18X1,5 R.HEXAGON NUT DIN0936-M18X1,5 R.
-
1678032057000 PRESSURE PIECEPRESSURE PIECE
-
1754637097200 AXIAL NEEDLE BEARING AXK 1226AXIAL NEEDLE BEARING AXK 1226
-
1854637098200 AXIAL WASHER AS1226 12X26X1AXIAL WASHER AS1226 12X26X1
-
190993012000 CIRCLIP DIN7993-RW12CIRCLIP DIN7993-RW12
-
200770300015 O-RING 30,00X1,50 NBR 70O-RING 30,00X1,50 NBR 70
-
2159032065000 GASKET FOR SLAVE CYLINDERGASKET FOR SLAVE CYLINDER
-
2254832061044 OUTPUT CYLINDER CPL.OUTPUT CYLINDER CPL.
-
2354832066000 PISTON CPL.PISTON CPL.
-
2454832067000 O-RINGO-RING
-
2554832069000 PRESSURE SPRINGPRESSURE SPRING
-
260603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
2754832063000 CLUTCH PIPECLUTCH PIPE
-
2862513020000 BLEEDER SCREW CPL.BLEEDER SCREW CPL.
-
290025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
3150329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
-
3278032011100 FRICTION DISCFRICTION DISC
-
3578032057044 PRESSURE PIECE CPL.PRESSURE PIECE CPL.
