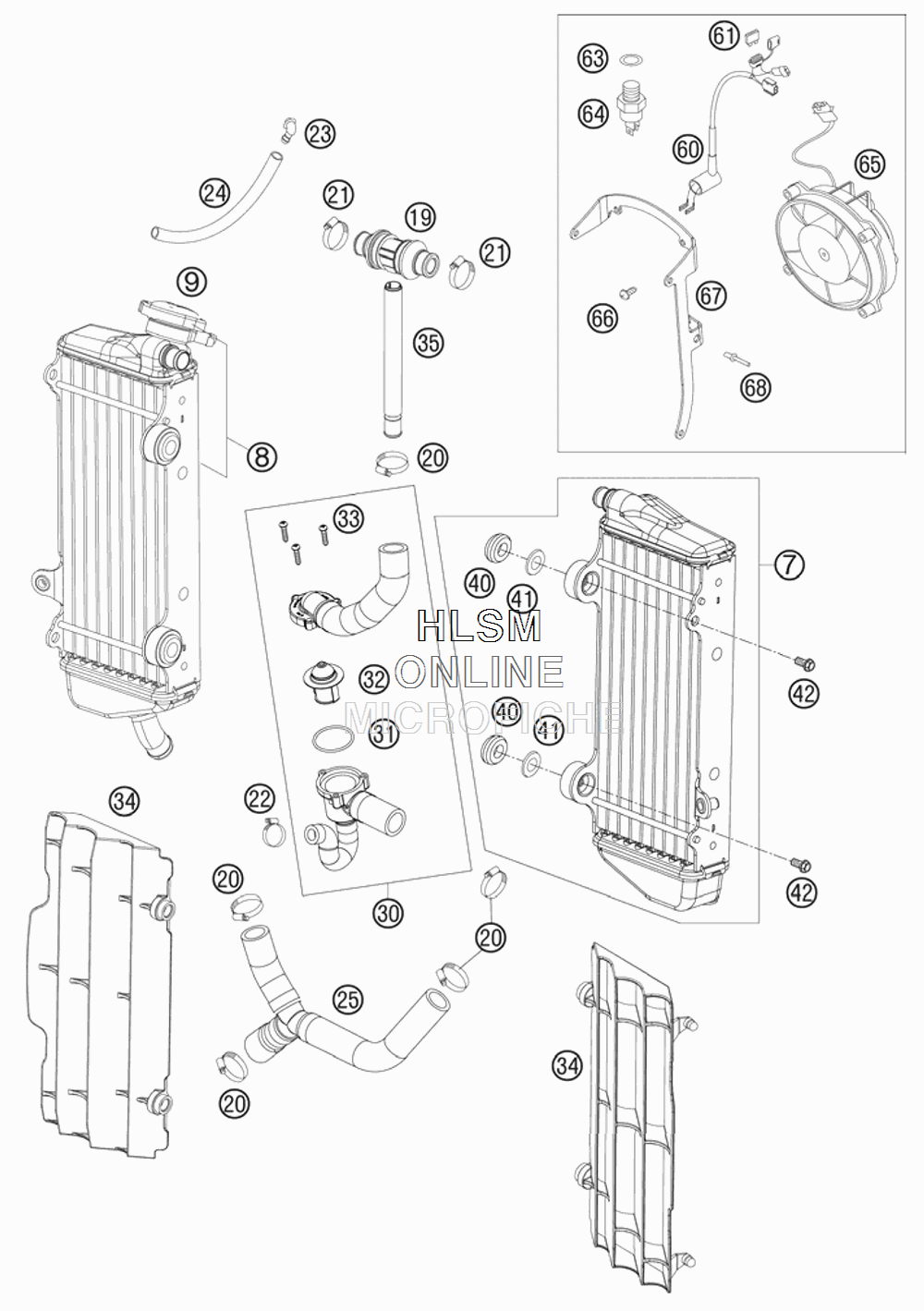

COOLING SYSTEM для Ktm 450 XCW Champions Edition - 2010 года выпуска

№

Артикул

Название
7

77035007100 RADIATOR L/S

RADIATOR L/S

74 880 ₽
8

78035008000 RADIATOR R/S

RADIATOR R/S

69 330 ₽
9

77335016000 RADIATOR CAP SMALL 1,8 BAR

RADIATOR CAP SMALL 1,8 BAR

4 670 ₽
19

77335026000 T-CONNECTOR CPL.

T-CONNECTOR CPL.

13 080 ₽
20

10001020000 HOSE CLAMP GEMI 18-29

HOSE CLAMP GEMI 18-29

680 ₽
21

42013037300 HOSE CLAMP NORMA 12/22

HOSE CLAMP NORMA 12/22

350 ₽
22

58335099000 HOSE CLAMP GEMI 10-16

HOSE CLAMP GEMI 10-16

760 ₽
23

50303089000 ANGLE PIECE

ANGLE PIECE

1 160 ₽
24

31007107001 PVC-HOSE 6X9 MM PER METER

PVC-HOSE 6X9 MM PER METER

1 550 ₽
25

78035027033 RADIATOR H. CPL. W. Y-PART

RADIATOR H. CPL. W. Y-PART

15 010 ₽
30

78035026033 RADIATOR H. CPL. W.THERM.75

RADIATOR H. CPL. W.THERM.75

30 810 ₽
31

0770320020 O-RING 32,00X2,00

O-RING 32,00X2,00

350 ₽
32

59435017000 THERMOSTAT 70 DEGREE

THERMOSTAT 70 DEGREE

10 570 ₽
33

0016040183 SCREW FOR PLASTIC D=4X18

SCREW FOR PLASTIC D=4X18

320 ₽
34

7733503400030 RADIATOR PROTECTION BLACK

RADIATOR PROTECTION BLACK

2 460 ₽
35

77335073000 HOSE CONNECTOR 4 STROKE

HOSE CONNECTOR 4 STROKE

4 380 ₽
40

41001052000 RUBBER SLEEVE D=12MM

RUBBER SLEEVE D=12MM

760 ₽
41

77335001000 WASHER FOR RADIATOR

WASHER FOR RADIATOR

350 ₽
42

0023060123 COLLAR SCREW M6X12

COLLAR SCREW M6X12

290 ₽
60

59011079000 FAN WIRING HARNESS

FAN WIRING HARNESS

11 100 ₽
61

58011109105 FUSE 5 A

FUSE 5 A

270 ₽
63

0603142015 ALU SEALRING DIN7603-14X20X1,5

ALU SEALRING DIN7603-14X20X1,5

350 ₽
64

78035045000 THERMOSWITCH 95-100 DG

THERMOSWITCH 95-100 DG

7 840 ₽
65

58435041000 FAN CPL. 12V LC4

FAN CPL. 12V LC4

37 180 ₽
66

0081500181 SCREW FOR PLASTIC D=5X18

SCREW FOR PLASTIC D=5X18

290 ₽
67

78035043000 FAN SUPPORT EXC

FAN SUPPORT EXC

17 310 ₽
68

0011400800 RIVET 4,0X 8 ALU

RIVET 4,0X 8 ALU

210 ₽
