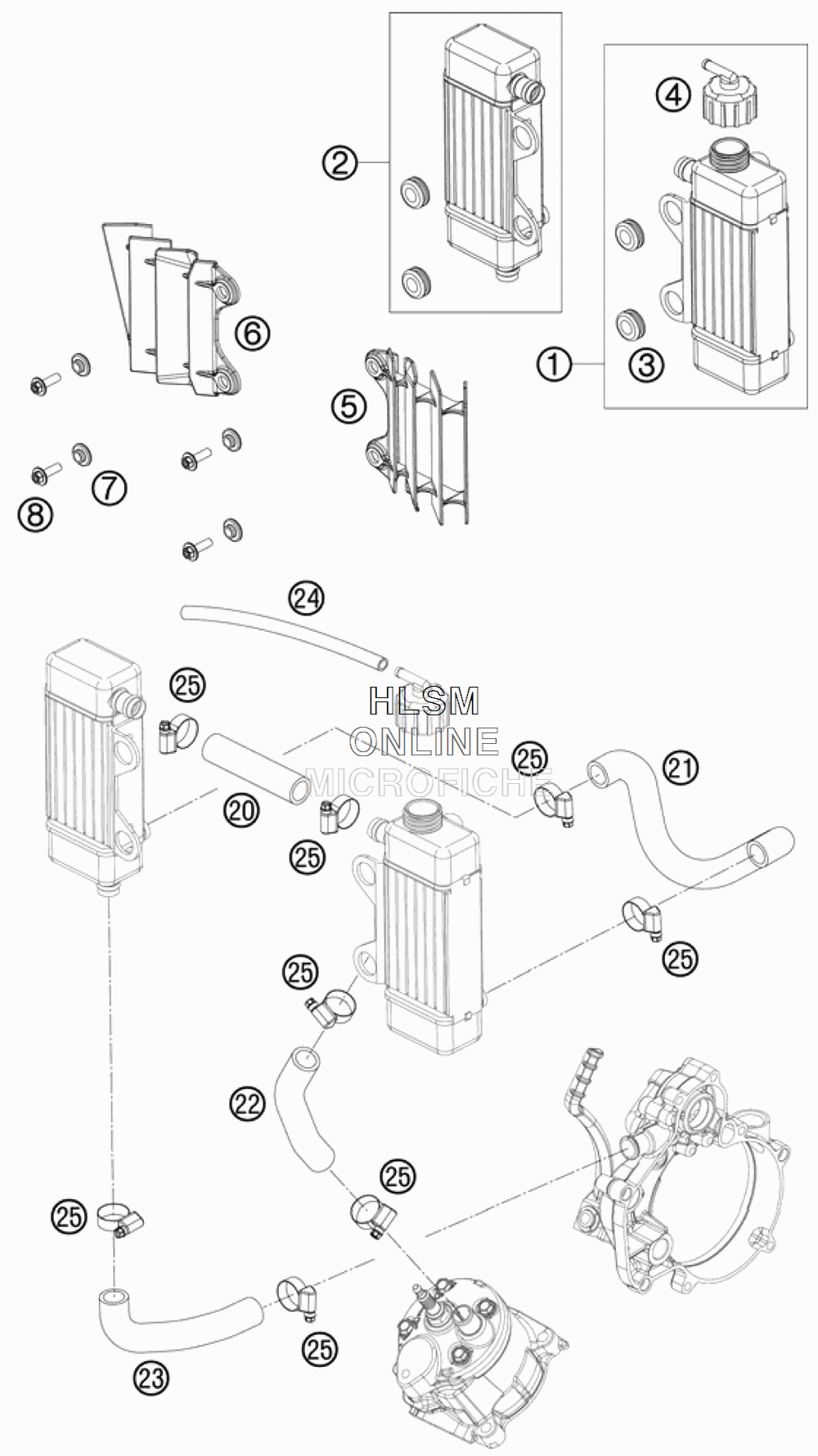

COOLING SYSTEM для Ktm 50 SX - 2010 года выпуска
-
№АртикулНазвание
-
145235007000 RADIATOR L/S 50 SXRADIATOR L/S 50 SX
-
245235008000 RADIATOR R/S 50 SXRADIATOR R/S 50 SX
-
341001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
445235009000 RADIATOR CAP 1,8 BARRADIATOR CAP 1,8 BAR
-
545235034000 RAD. PROTECT. L/S 50 SXSRAD. PROTECT. L/S 50 SXS
-
645235035000 RAD. PROTECT. R/S 50 SXRAD. PROTECT. R/S 50 SX
-
754808020000 SPACER BUSHING 03SPACER BUSHING 03
-
80024060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
2045235026000 RADIATOR HOSE AHEAD 50 SXRADIATOR HOSE AHEAD 50 SX
-
2145235027000 RADIATOR HOSE BELOW 50 SXRADIATOR HOSE BELOW 50 SX
-
2245235025000 PREFORMED HOSE 50SX RAD. L/SPREFORMED HOSE 50SX RAD. L/S
-
2345235024000 PREFORMED HOSE 50SX RAD. R/SPREFORMED HOSE 50SX RAD. R/S
-
2460035067001 HOSE 6X10 EPDM03HOSE 6X10 EPDM03
-
25*42013037300 HOSE CLAMP NORMA 12/22HOSE CLAMP NORMA 12/22
