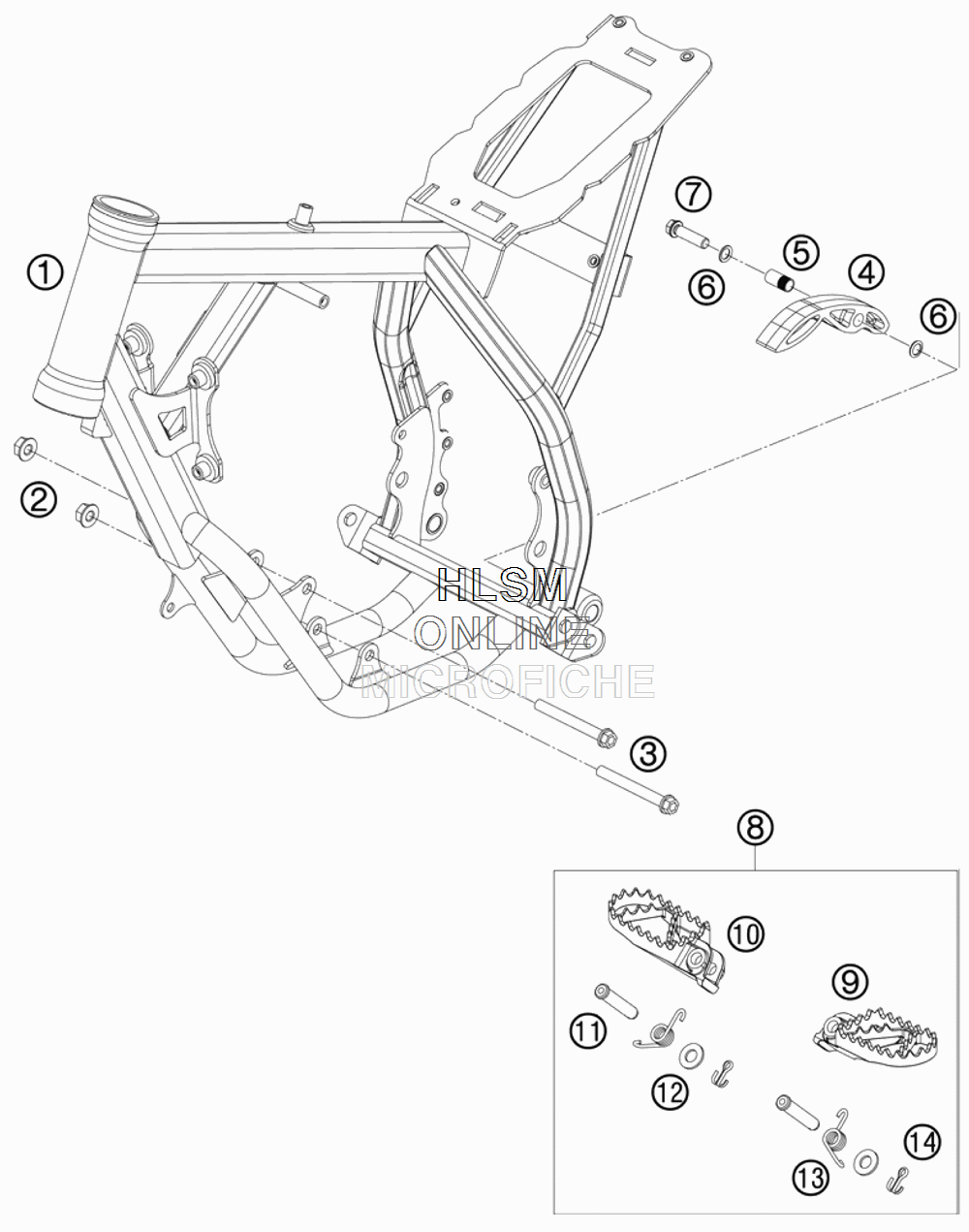

FRAME для Ktm 50 SX - 2010 года выпуска
-
№АртикулНазвание
-
14520300100030 FRAME "MA09" 50SXFRAME "MA09" 50SX
-
254310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
30025080656 HH COLLAR SCREW M8X65 TX40HH COLLAR SCREW M8X65 TX40
-
451103053000 CHAIN SLIDING PIECE BELOW '97CHAIN SLIDING PIECE BELOW '97
-
551103053051 BUSHING 8,2X10X20BUSHING 8,2X10X20
-
636003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
70025080306 HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
84700304003390 FOOTPEG L.+R. CPL.FOOTPEG L.+R. CPL.
-
959003040050 FOOT PED L/S EXC SILVERFOOT PED L/S EXC SILVER
-
1059003041050 FOOT PED R/S EXC SILVERFOOT PED R/S EXC SILVER
-
1154803044000 BOLT FOR FOOT PEDBOLT FOR FOOT PED
-
120125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
1354603041000 FOOTREST SPRING L/S & R/SFOOTREST SPRING L/S & R/S
-
140094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
