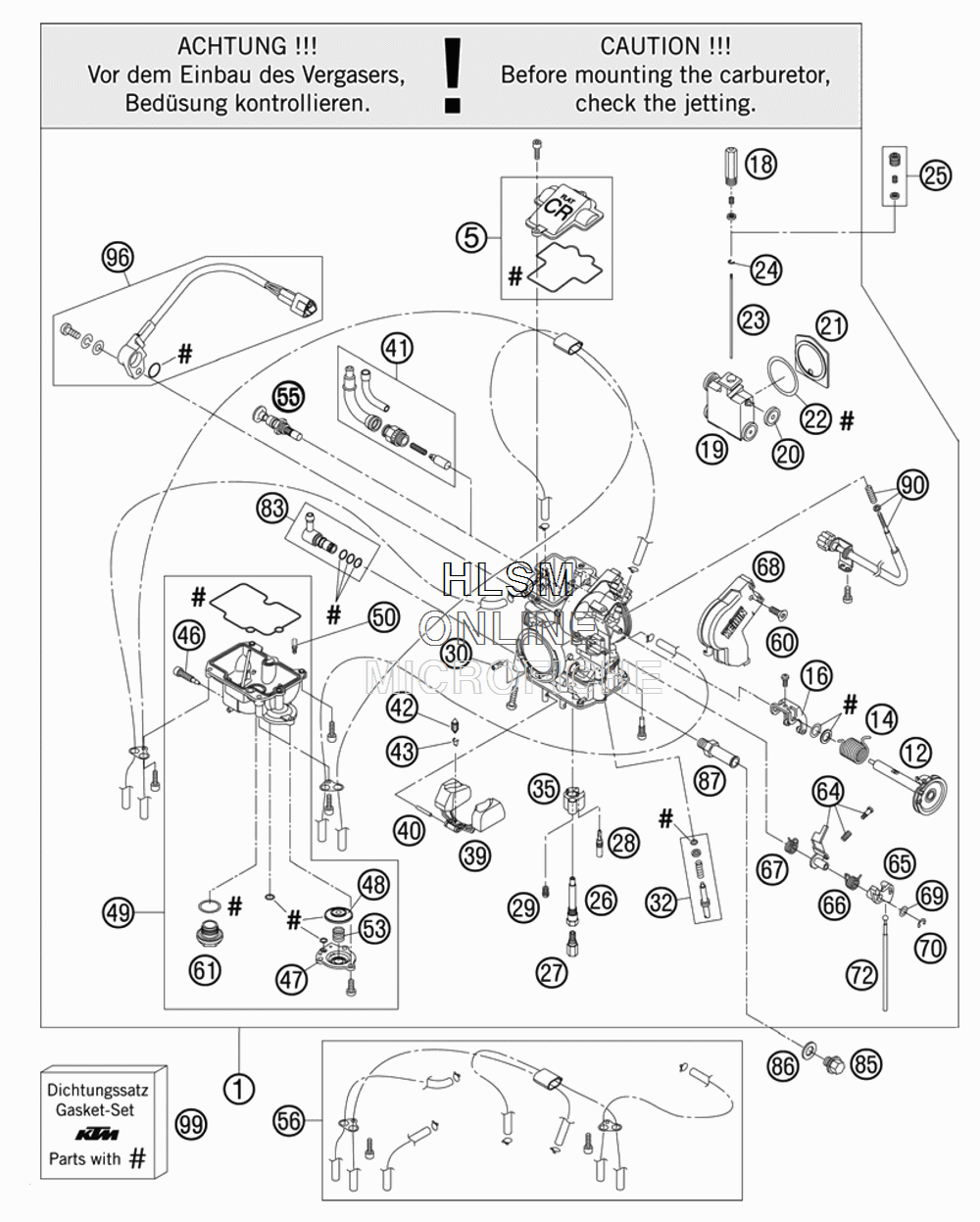

CARBURETOR для Ktm 530 EXC Champions Edition - 2010 года выпуска
-
№АртикулНазвание
-
178031001100 CARB. FCR-MX 3900L,TPSCARB. FCR-MX 3900L,TPS
-
557331027044 CARBURETOR COVER WITH GASKETCARBURETOR COVER WITH GASKET
-
1257331046100 THROTTLE SHAFT CPL.THROTTLE SHAFT CPL.
-
1457331046050 COIL SPRING THROTTLE SHAFTCOIL SPRING THROTTLE SHAFT
-
1676231035051 LINK ARM THROTTLE VALVE CPL.LINK ARM THROTTLE VALVE CPL.
-
1859031029010 SLIDE STOPSLIDE STOP
-
1957331035100 THROTTLE VALVE CPL. FCRMXTHROTTLE VALVE CPL. FCRMX
-
2059031035050 BUSHING THROTTLE VALVEBUSHING THROTTLE VALVE
-
2157331035153 GASKET PLATE THROTTLE VALVE 04GASKET PLATE THROTTLE VALVE 04
-
2259031035052 GASKET WASHER THROTTLE VALVEGASKET WASHER THROTTLE VALVE
-
2359031034000 JET NEEDLE KEIHIN OBDTNJET NEEDLE KEIHIN OBDTN
-
2359031034400 JET NEEDLE KEIHIN OBDTPJET NEEDLE KEIHIN OBDTP
-
2359031034500 JET NEEDLE KEIHIN OBDTQJET NEEDLE KEIHIN OBDTQ
-
2359031034600 JET NEEDLE KEIHIN OBDTRJET NEEDLE KEIHIN OBDTR
-
2378031034000 JET NEEDLE KEIHIN OBDYUJET NEEDLE KEIHIN OBDYU
-
2378631034000 JET NEEDLE KEIHIN OBDZTJET NEEDLE KEIHIN OBDZT
-
2459031029000 BAR CLIPBAR CLIP
-
2557331032000 NEEDLE SET SCREW CPL.NEEDLE SET SCREW CPL.
-
2659031121000 NEEDLE JET FCR-MXNEEDLE JET FCR-MX
-
2754531623170 MAIN JET 170 KEIHINMAIN JET 170 KEIHIN
-
2754531623172 MAIN JET 172 KEIHINMAIN JET 172 KEIHIN
-
2754531623175 MAIN JET 175 KEIHINMAIN JET 175 KEIHIN
-
2754531623178 MAIN JET 178 KEIHINMAIN JET 178 KEIHIN
-
2754531623180 MAIN JET 180 KEIHINMAIN JET 180 KEIHIN
-
2754531623182 MAIN JET 182 KEIHINMAIN JET 182 KEIHIN
-
2754531623185 MAIN JET 185 KEIHINMAIN JET 185 KEIHIN
-
2754531623188 MAIN JET 188 KEIHINMAIN JET 188 KEIHIN
-
2854531607038 IDLE JET 38 KEIHINIDLE JET 38 KEIHIN
-
2854531607040 IDLE JET 40 KEIHINIDLE JET 40 KEIHIN
-
2854531607042 IDLE JET 42 KEIHINIDLE JET 42 KEIHIN
-
2854531607048 IDLE JET 48 KEIHINIDLE JET 48 KEIHIN
-
2959031051065 STARTER JET 65STARTER JET 65
-
2959031051070 STARTER JET 70STARTER JET 70
-
2959031051075 STARTER JET 75STARTER JET 75
-
2959031051080 STARTER JET 80STARTER JET 80
-
2959031051085 STARTER JET 85STARTER JET 85
-
3057331107100 IDLE AIR JET 100 KEIHINIDLE AIR JET 100 KEIHIN
-
3259031017100 ADJUST SCREW CPL. FCR-MXADJUST SCREW CPL. FCR-MX
-
3557331085000 BUFFER PLATEBUFFER PLATE
-
3957331009000 FLOAT CPL.FLOAT CPL.
-
4057331008000 ARM PIN FLOATARM PIN FLOAT
-
4178031096044 STARTER VALVE CPL.STARTER VALVE CPL.
-
4254631220000 FLOAT NEEDLEFLOAT NEEDLE
-
4354531621000 CLAMPCLAMP
-
4676231155000 DRAIN SCREW + O-RINGDRAIN SCREW + O-RING
-
4757331060000 COVER ACCELERATOR PUMPCOVER ACCELERATOR PUMP
-
4857331057100 DIAPHRAGM ACCELERATOR PUMPDIAPHRAGM ACCELERATOR PUMP
-
4978031011000 FLOAT CHAMBER CPL. 08FLOAT CHAMBER CPL. 08
-
5054631085000 JET POWER JET CLOSED KEIHINJET POWER JET CLOSED KEIHIN
-
5054631085040 JET POWER JET 40 KEIHINJET POWER JET 40 KEIHIN
-
5054631085050 JET POWER JET 50 KEIHINJET POWER JET 50 KEIHIN
-
5054631085060 JET POWER JET 60 KEIHINJET POWER JET 60 KEIHIN
-
5054631085070 JET POWER JET 70 KEIHINJET POWER JET 70 KEIHIN
-
5359031059000 COIL SPRINGCOIL SPRING
-
5577031048000 STARTER VALVE SHORT CPL.STARTER VALVE SHORT CPL.
-
5657331098000 BREATH.HOSE FCR-MX KEIHIN CPL.BREATH.HOSE FCR-MX KEIHIN CPL.
-
600965050103 FLAT HEAD SCREW DIN0965-M 5X10FLAT HEAD SCREW DIN0965-M 5X10
-
6154531699000 PLUG M 18X1PLUG M 18X1
-
6457331062000 INTERMEDIATE LEVER CPL.INTERMEDIATE LEVER CPL.
-
6557331056000 LINK LEVERLINK LEVER
-
6657331059000 SPRING LINK LEVERSPRING LINK LEVER
-
6757331159000 SPRING INTERMEDIATE LEVERSPRING INTERMEDIATE LEVER
-
6857331038200 CARBURETOR COVERCARBURETOR COVER
-
6957331087000 WASHER LINK LEVERWASHER LINK LEVER
-
7057331084000 E-CLIPE-CLIP
-
7257331061000 ROD ACCELERATOR PUMPROD ACCELERATOR PUMP
-
8359031013044 HOSE CONNECTOR CPL.HOSE CONNECTOR CPL.
-
850910100003 PLUG DIN0910-M 10X1PLUG DIN0910-M 10X1
-
860603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
8759031040300 HOSE CONNECTOR KEIHINHOSE CONNECTOR KEIHIN
-
9057331025000 STOP SCREW CPL. FCR-MXSTOP SCREW CPL. FCR-MX
-
9659031077200 TPS-SENSOR FCRMX 190MMTPS-SENSOR FCRMX 190MM
-
9957331099000 GASKET SET FCR-MX KEIHINGASKET SET FCR-MX KEIHIN
