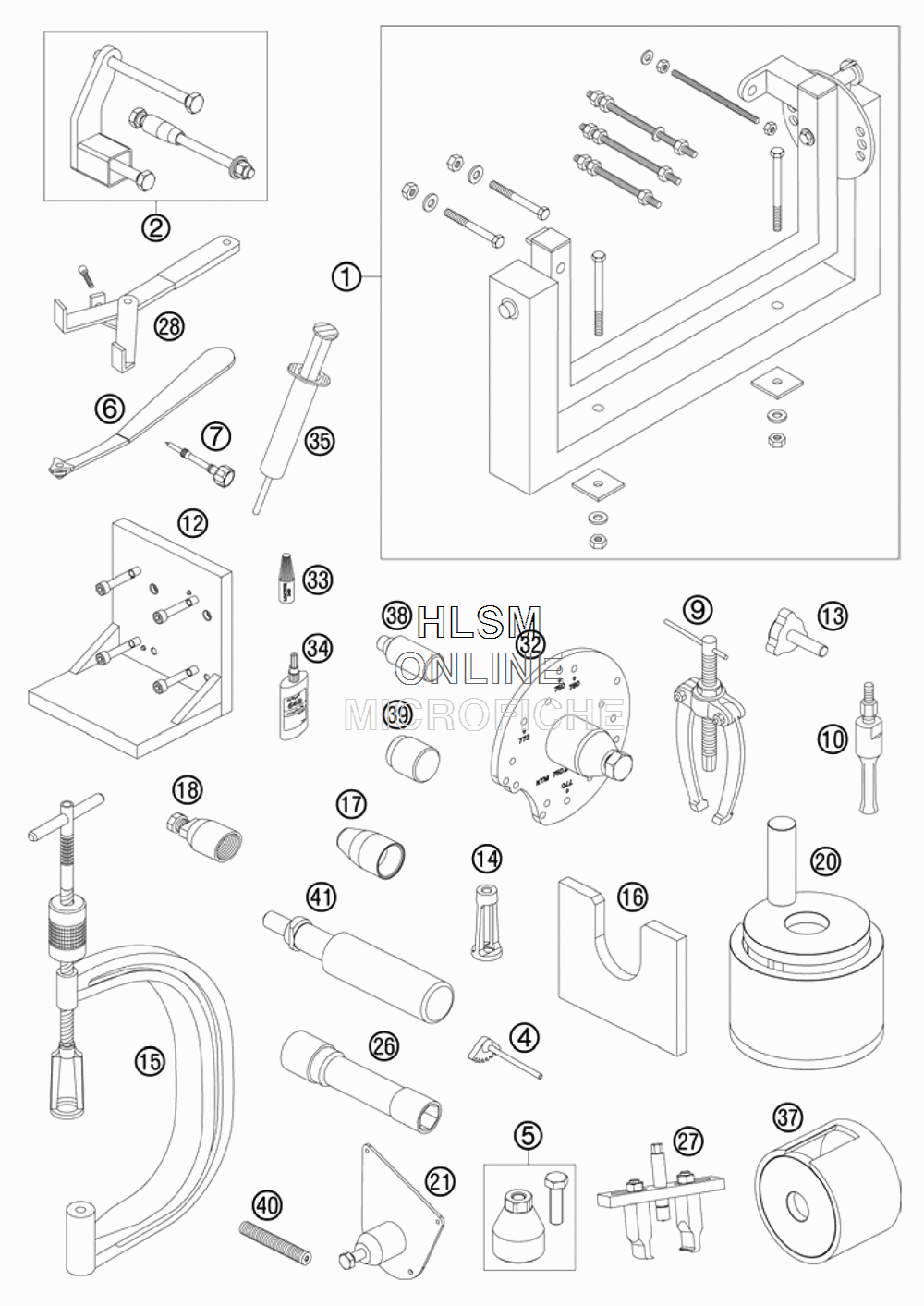

SPECIAL TOOLS для Ktm 530 EXC Champions Edition - 2010 года выпуска
-
№АртикулНазвание
-
156012001000 ASSY SUPPORT (WITHOUT HOLDER)ASSY SUPPORT (WITHOUT HOLDER)
-
278029002000 SUPPORT CPL.SUPPORT CPL.
-
480029004000 GEAR SEGMENT CPL.GEAR SEGMENT CPL.
-
575029021000 EXTRACTOR PRIM. CPL.EXTRACTOR PRIM. CPL.
-
677329034000 WRENCH F.MIXTURE CONTROL SCREWWRENCH F.MIXTURE CONTROL SCREW
-
759031017200 MIXT. CONTROL SCREW FACTORYMIXT. CONTROL SCREW FACTORY
-
915112017000 BUSHING EXTRACTORBUSHING EXTRACTOR
-
1015112018100 INTERN.BEAR.PULLER 18-23 MMINTERN.BEAR.PULLER 18-23 MM
-
1060029018000 INTERN.BEAR.PULLER 28 MMINTERN.BEAR.PULLER 28 MM
-
1275029050000 ON TENSIONER PL. CYLINDER HEADON TENSIONER PL. CYLINDER HEAD
-
1375029051000 PRESS OUT PUNCH CPL.PRESS OUT PUNCH CPL.
-
1478029060000 VALVE SPRING TENSION APPLICAT.VALVE SPRING TENSION APPLICAT.
-
1559029019000 VALVE SPRING LEVERVALVE SPRING LEVER
-
1678029009000 SEPARATOR PLATE CRANKSHAFTSEPARATOR PLATE CRANKSHAFT
-
1778029005000 MOUNTING SLEEVE SSR CSMOUNTING SLEEVE SSR CS
-
1858012009000 FLYWHEEL EXTRACTORFLYWHEEL EXTRACTOR
-
2075029047000 PRESS. TOOL F. CRANKS. CPL.PRESS. TOOL F. CRANKS. CPL.
-
2178029049100 PRESS OUT PLATE CS CPL.PRESS OUT PLATE CS CPL.
-
2675029172000 SPARK PLUG WRENCHSPARK PLUG WRENCH
-
2778029033100 PULLERPULLER
-
2851129003000 CLUTCH HOLDERCLUTCH HOLDER
-
3275029048000 CASING DISMOUNTING TOOLCASING DISMOUNTING TOOL
-
336899785 LOCTITE 243 BLUE 6CCMLOCTITE 243 BLUE 6CCM
-
3458429059000 LOCTITE 648 GREEN 24MLLOCTITE 648 GREEN 24ML
-
3558429059200 LOCTITE 5910 50MLLOCTITE 5910 50ML
-
3778029008000 PRESS. TOOL F. CRANKSHAFTPRESS. TOOL F. CRANKSHAFT
-
3875029044020 PRESS PUNCH CAMSHAFT BEAR. SM.PRESS PUNCH CAMSHAFT BEAR. SM.
-
3975029044010 PRESS PUNCH CAMSH. BEAR. LARGEPRESS PUNCH CAMSH. BEAR. LARGE
-
400113080802 ENGINE BLOCKING SCREWENGINE BLOCKING SCREW
-
4177329030100 PLUG IN FUSE PISTON PINPLUG IN FUSE PISTON PIN
