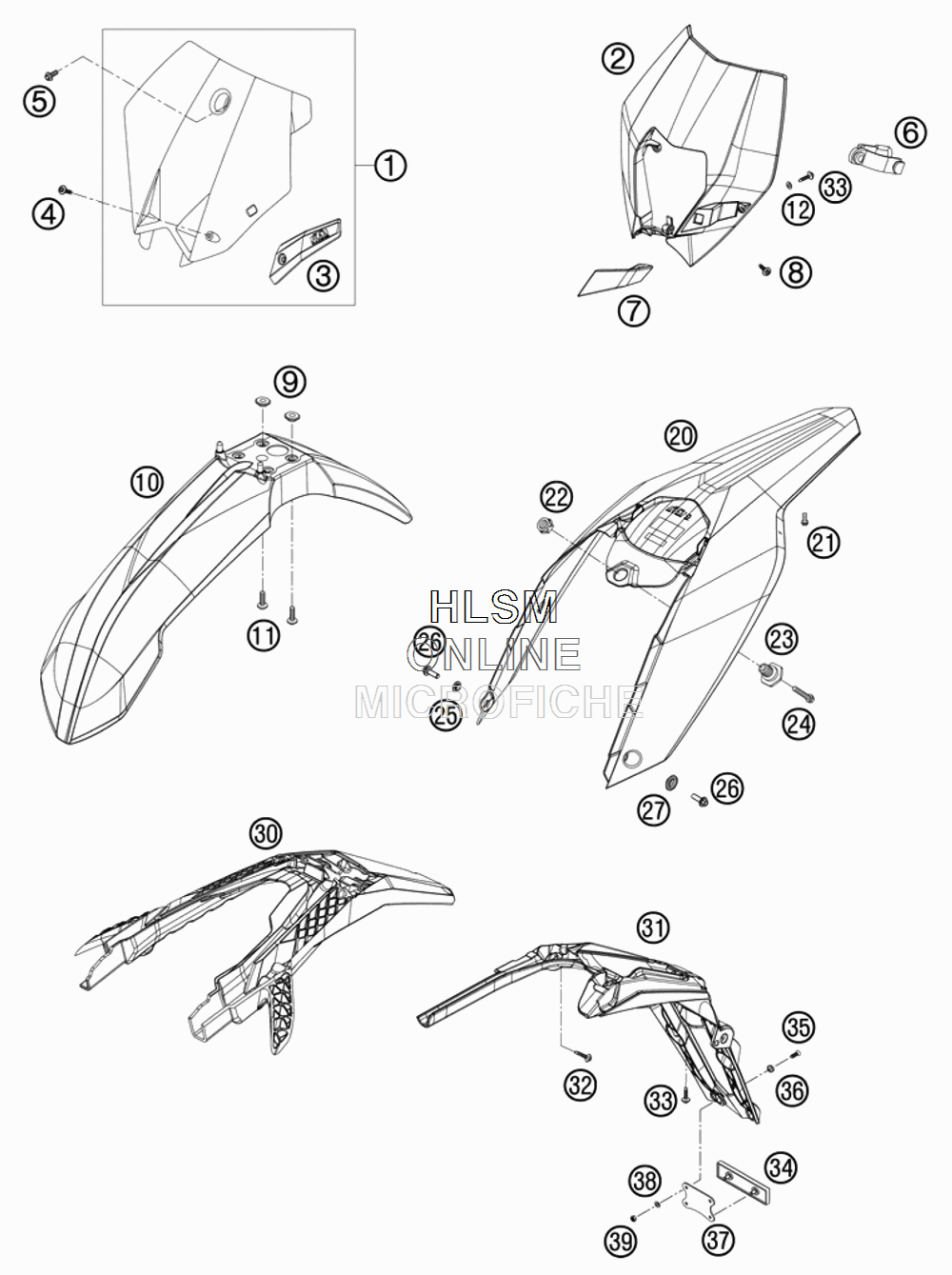

MASK FENDERS для Ktm 530 XC-W Six Days - 2010 года выпуска
-
№АртикулНазвание
-
17730800704404 START NUMBER PLATE ORANGESTART NUMBER PLATE ORANGE
-
27800800100004 HEAD LIGHT MASK ORANGEHEAD LIGHT MASK ORANGE
-
37730802200004 BRAKE HOSE GUIDE ORANGEBRAKE HOSE GUIDE ORANGE
-
417060204 EJOT PT SCREW K60X20 ALU WS=6EJOT PT SCREW K60X20 ALU WS=6
-
524060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
650211086000 MASK RUBBER UFO WPMASK RUBBER UFO WP
-
77800802200004 BRAKE HOSE GUIDE ORANGEBRAKE HOSE GUIDE ORANGE
-
881500181 SCREW FOR PLASTIC D=5X18SCREW FOR PLASTIC D=5X18
-
954808020000 SPACER BUSHINGSPACER BUSHING
-
107730801000004 FRONT FENDERFRONT FENDER
-
1124060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
12125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
207800801300004 REAR PART EXC ORANGEREAR PART EXC ORANGE
-
2125050206 HH COLLAR SCREW M5X20 TX30HH COLLAR SCREW M5X20 TX30
-
2250314057050 COLLAR NUT M12X1/WS17 H=5MMCOLLAR NUT M12X1/WS17 H=5MM
-
2354807048000 BUSHING FOR SEAT FASTENINGBUSHING FOR SEAT FASTENING
-
2425060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
2550308052000 BUSH FOR SPOILER 6X11X16X5 MMBUSH FOR SPOILER 6X11X16X5 MM
-
2625060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
2777306001030 COLLAR BUSHING 4,5/12,6/23COLLAR BUSHING 4,5/12,6/23
-
3078008016000 NUMBER PL. CARRIER TOP PARTNUMBER PL. CARRIER TOP PART
-
3178008016050 NUMBER PL. CARRIER LOW PARTNUMBER PL. CARRIER LOW PART
-
3217060303 SPECIAL SCREW T60 6X30 WS=6SPECIAL SCREW T60 6X30 WS=6
-
3317060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
3458412080000 REFLECTOR RED LC4REFLECTOR RED LC4
-
35966050203 OVAL HEAD SCREW DIN0966-M 5X20OVAL HEAD SCREW DIN0966-M 5X20
-
3640006006000 WASHER 6MMWASHER 6MM
-
3758412080050 BRACKET FOR REFLECTORBRACKET FOR REFLECTOR
-
38125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
39985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
