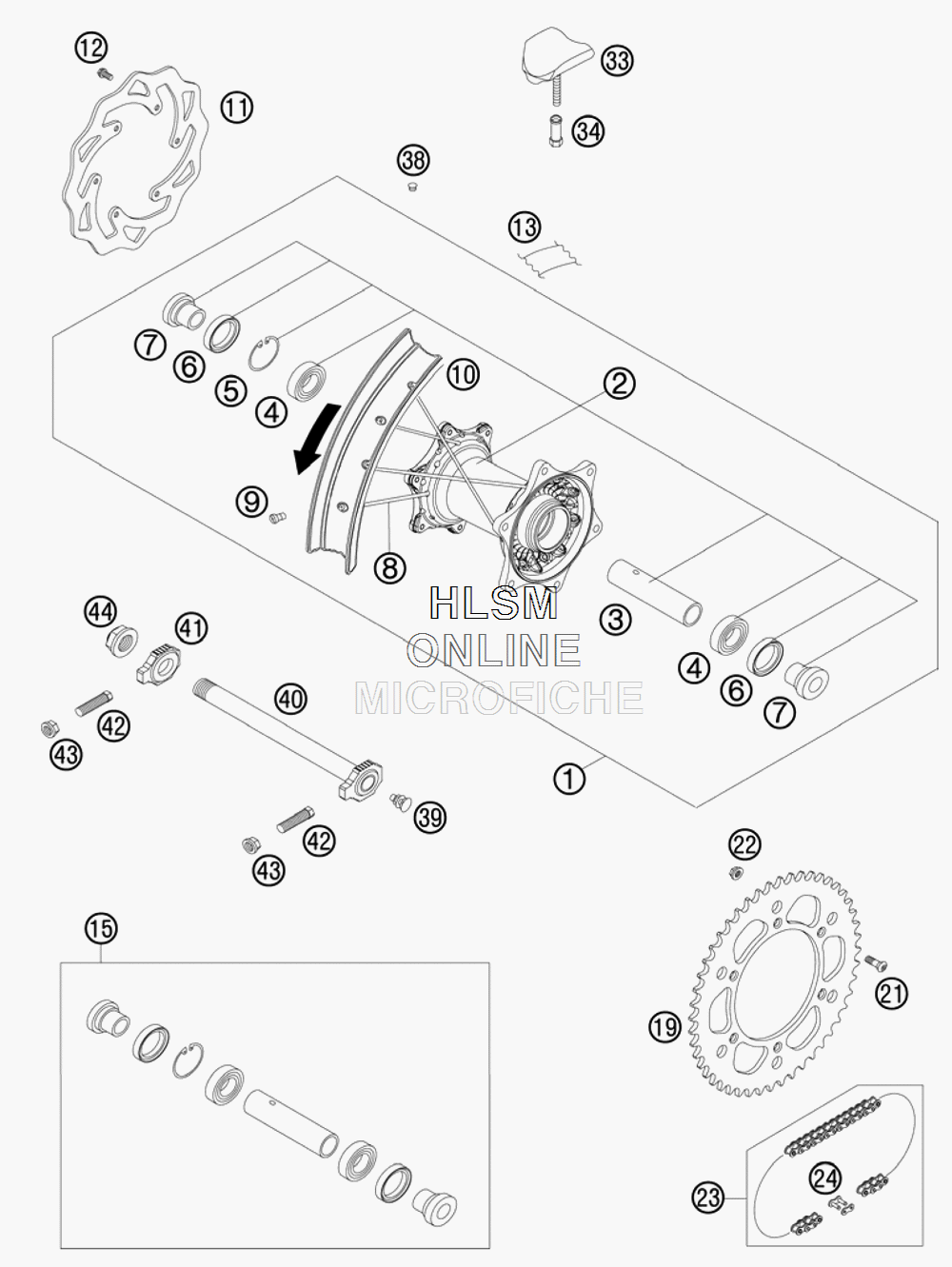

REAR WHEEL для Ktm 530 XC-W Six Days - 2010 года выпуска
-
№АртикулНазвание
-
17801000114430 REAR WHEEL CPL. 2,15X18"REAR WHEEL CPL. 2,15X18"
-
2*78010010144 REAR WHEEL HUB CPL.REAR WHEEL HUB CPL.
-
359010011000 BUSHING SPACER TUBE 121,5MMBUSHING SPACER TUBE 121,5MM
-
4625060058 GR.BALL BEAR.6005 DDU2CG23S6NMGR.BALL BEAR.6005 DDU2CG23S6NM
-
5472047175 CIRCLIP DIN0472-47X1,75CIRCLIP DIN0472-47X1,75
-
6760324771 SHAFT SEAL RING 32X47X7 BSLSHAFT SEAL RING 32X47X7 BSL
-
778010016000 BUSHING FOR HUBBUSHING FOR HUB
-
878010174193 SPOKE M5X193- 18"SPOKE M5X193- 18"
-
958309072100 SPOKE NIPPLE M5-TA 8X21MMSPOKE NIPPLE M5-TA 8X21MM
-
107801007000030 RIM 2,15X18" EXCEL AL7 BLACKRIM 2,15X18" EXCEL AL7 BLACK
-
1177310060000 BRAKE DISC REAR 220BRAKE DISC REAR 220
-
1259009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
1350310073200 RIM BAND 18" AND 19"RIM BAND 18" AND 19"
-
1578010015000 REAR WHEEL REP. KITREAR WHEEL REP. KIT
-
195841005103804 REAR SPROCKET ORANGE 38-TREAR SPROCKET ORANGE 38-T
-
195841005104004 REAR SPROCKET ORANGE 40-TREAR SPROCKET ORANGE 40-T
-
195841005104204 REAR SPROCKET ORANGE 42-TREAR SPROCKET ORANGE 42-T
-
195841005104404 REAR SPROCKET ORANGE 44-TREAR SPROCKET ORANGE 44-T
-
195841005104804 REAR SPROCKET ORANGE 48-TREAR SPROCKET ORANGE 48-T
-
195841005104904 REAR SPROCKET ORANGE 49-TREAR SPROCKET ORANGE 49-T
-
195841005105004 REAR SPROCKET ORANGE 50-TREAR SPROCKET ORANGE 50-T
-
195841005105104 REAR SPROCKET ORANGE 51-TREAR SPROCKET ORANGE 51-T
-
195841005105204 REAR SPROCKET ORANGE 52-TREAR SPROCKET ORANGE 52-T
-
210019080266S COUNTER-SUNK SCREW ISA45 M8X26COUNTER-SUNK SCREW ISA45 M8X26
-
2254310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
23*78010167118 CHAIN DID 118 ROLLSCHAIN DID 118 ROLLS
-
24*78010166000 CONNECTING LINK F. 78010167118CONNECTING LINK F. 78010167118
-
3354010100100 RIM LOCK VM3 (2.15")RIM LOCK VM3 (2.15")
-
3450310090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
3855003135000 PLUG FOR RIMPLUG FOR RIM
-
3950210086000 COVERING CAP SFL16COVERING CAP SFL16
-
4077310085044 WHEEL SPINDLE RE. CPL.265MMWHEEL SPINDLE RE. CPL.265MM
-
4150310084000 CHAIN TENSIONER R/SCHAIN TENSIONER R/S
-
4250304040100 SCREW M10X1,25X50 WS=10SCREW M10X1,25X50 WS=10
-
4358414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
4450310099000 HEXAGON NUT M20X1,5HEXAGON NUT M20X1,5
