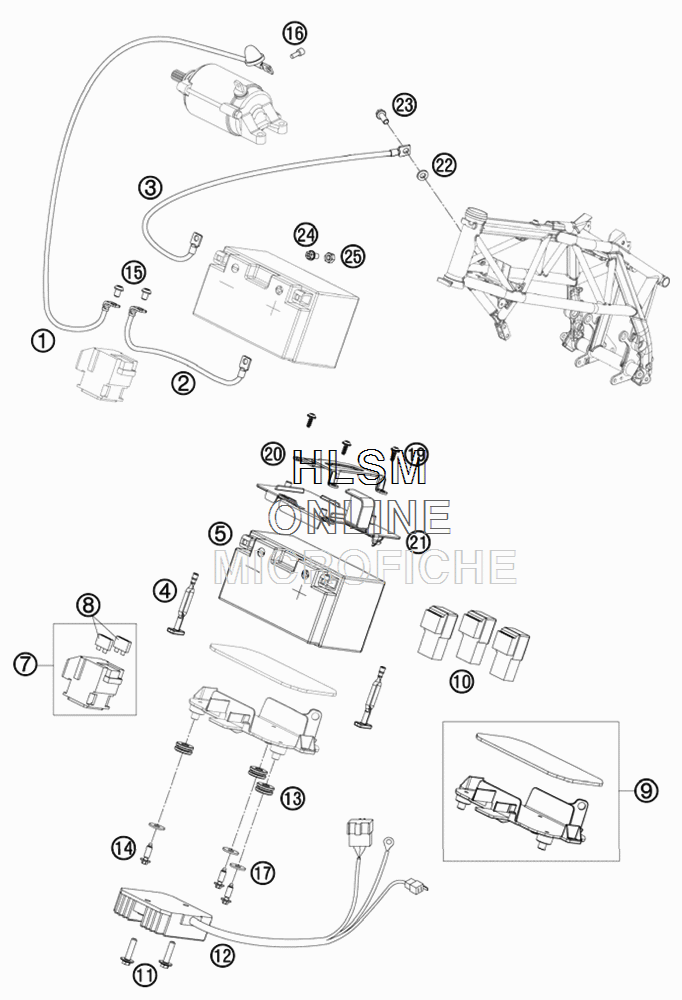

BATTERY для Ktm 690 DUKE (BLACK) - 2010 года выпуска
-
№АртикулНазвание
-
175011059000 STARTER CABLESTARTER CABLE
-
275011059150 BATTERY-CABLE L=170MMBATTERY-CABLE L=170MM
-
375011097000 GROUND CABLEGROUND CABLE
-
475011054005 BRACKET RUBBER FOR BATTERYBRACKET RUBBER FOR BATTERY
-
558411053100 BATTERY 12V 8,6AHBATTERY 12V 8,6AH
-
760011058000 STARTER RELAYSTARTER RELAY
-
858011109130 FUSE 30 AFUSE 30 A
-
975011154033 BATTERY SUPPORT CPL.BATTERY SUPPORT CPL.
-
1061111057000 RELAY CM1A-R-12V-H80RELAY CM1A-R-12V-H80
-
110024060273 COLLAR SCREW M6X27 TXCOLLAR SCREW M6X27 TX
-
1260011034100 VOLTAGE REGULATORVOLTAGE REGULATOR
-
1375011054010 DECOUPLING RUBBERDECOUPLING RUBBER
-
140017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
150902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
-
160912050083 AH SCREW DIN 912 M 5X8AH SCREW DIN 912 M 5X8
-
170021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
190081050121 SCREW FOR PLASTIC K50X12 T20SCREW FOR PLASTIC K50X12 T20
-
2075011054130 ECU MOUNTING BRACKETECU MOUNTING BRACKET
-
2175011054120 BATTERY SUPPORT - TOP PARTBATTERY SUPPORT - TOP PART
-
2258411098100 CONTACT WASHER M6 VSV-K6CONTACT WASHER M6 VSV-K6
-
230025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
240025060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
250934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
