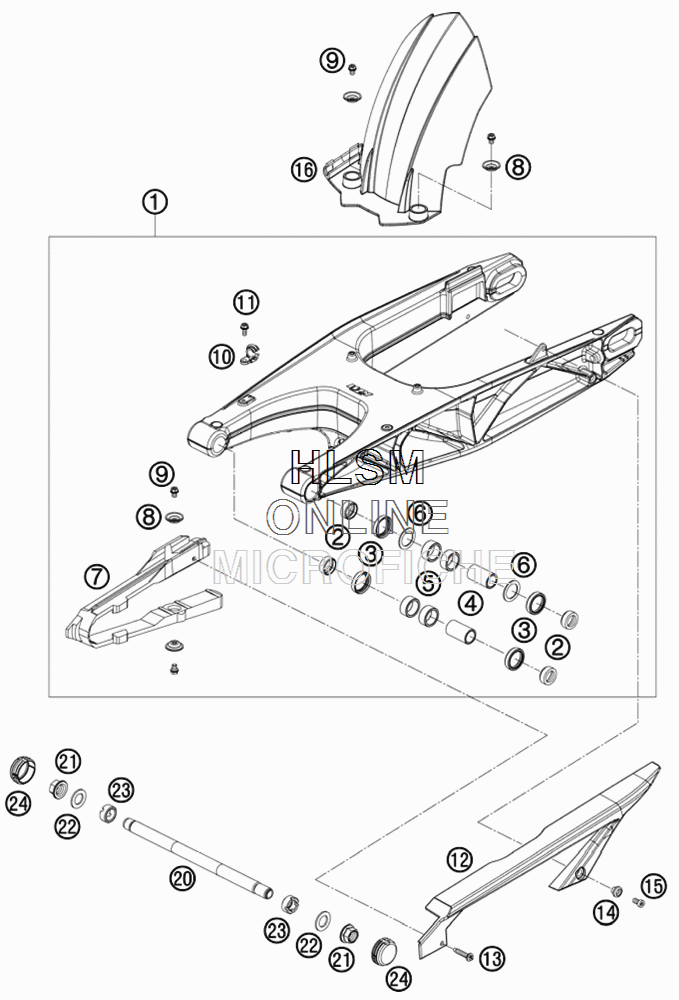

SWINGARM для Ktm 690 DUKE (BLACK) - 2010 года выпуска
-
№АртикулНазвание
-
17500403004433 SWING SM CPL.SWING SM CPL.
-
254804034000 BUCKET F. SHAFT SEAL RINGBUCKET F. SHAFT SEAL RING
-
30760253270 SHAFT SEAL RING 25X32X7SHAFT SEAL RING 25X32X7
-
459404032000 BEARING SLEEVE 17X22X38,7BEARING SLEEVE 17X22X38,7
-
559004031200 NEEDLE BUSH HK2212VNEEDLE BUSH HK2212V
-
654603036000 STOP DISK 22,2X31,7X1STOP DISK 22,2X31,7X1
-
775004066000 CHAIN SLIDING PROTECTIONCHAIN SLIDING PROTECTION
-
872210079000 BUCKETBUCKET
-
90025060086 HH COLLAR SCREW M6X8 TX30HH COLLAR SCREW M6X8 TX30
-
105461107610030 RET. CLAMP F. BRAKE HOSE BLACKRET. CLAMP F. BRAKE HOSE BLACK
-
110009050103 SPECIAL SCREW M 5,0X10SPECIAL SCREW M 5,0X10
-
1275004060000 CHAIN GUARDCHAIN GUARD
-
130017060303 SPECIAL SCREW T60 6X30 WS=6SPECIAL SCREW T60 6X30 WS=6
-
1475001094010 BUSHING MUD FLAPBUSHING MUD FLAP
-
150012060123 AH SCREW DIN6912 M6X12AH SCREW DIN6912 M6X12
-
1675604050000 MUD FLAPMUD FLAP
-
2075004037000 SWING ARM BOLT L=272MMSWING ARM BOLT L=272MM
-
2154804038000 SELF LOCK.NUT M16X1,5 WS=19SELF LOCK.NUT M16X1,5 WS=19
-
2275004042000 WASHERWASHER
-
2375004046000 ADJUSTING RING M24X1 , 5ADJUSTING RING M24X1 , 5
-
2475003088000 PLASTIC CAPPLASTIC CAP
