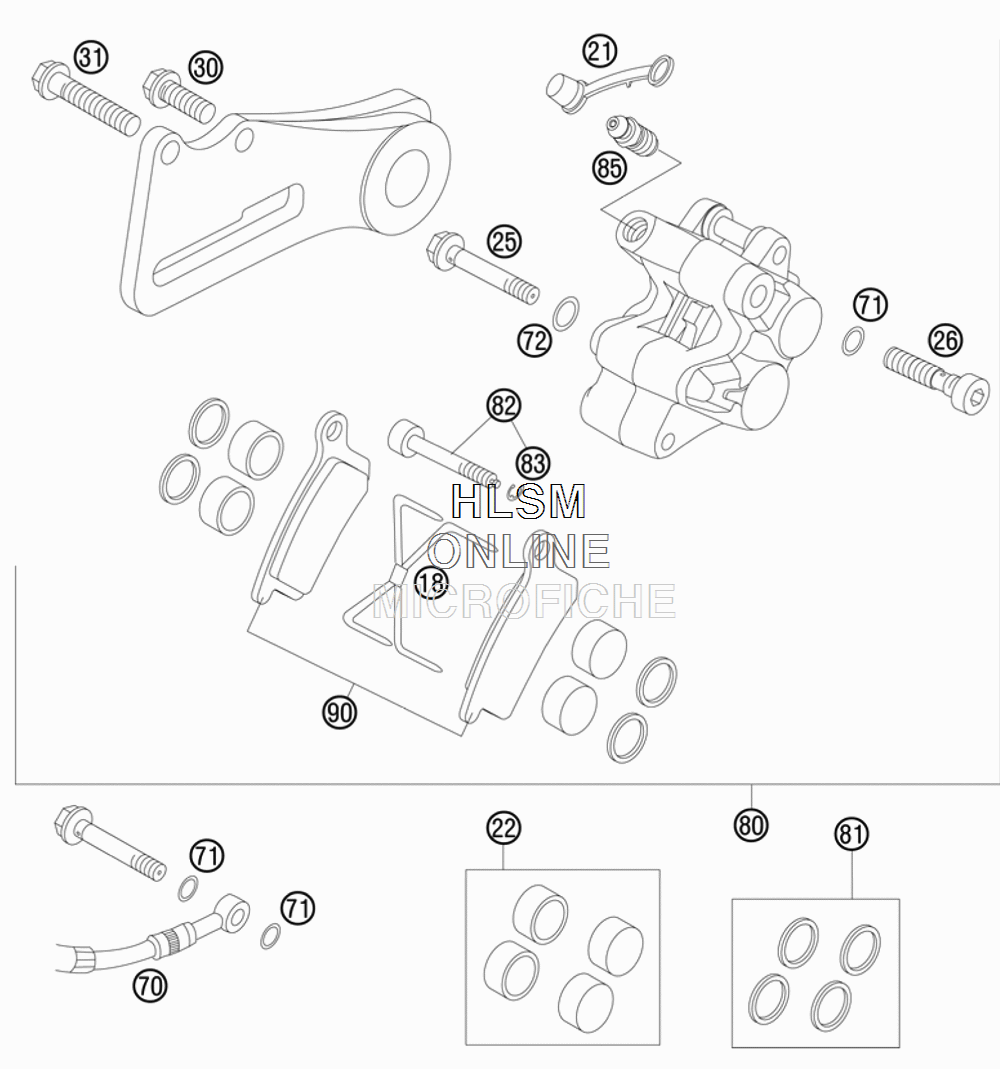

BRAKE CALIPER REAR для Ktm 85 SX - 2010 года выпуска
-
№АртикулНазвание
-
1846113018000 RETAINING SPRING 65 SXRETAINING SPRING 65 SX
-
2147013021000 CAP FOR BLEEDER SCREWCAP FOR BLEEDER SCREW
-
2247013083100 REPAIR KIT BRAKEPISTONREPAIR KIT BRAKEPISTON
-
2547013225000 HOLLOW SCREW REAR 85 SXHOLLOW SCREW REAR 85 SX
-
2647013325000 HOLLOW SCREW REAR 85 SXHOLLOW SCREW REAR 85 SX
-
310025080406 HH COLLAR SCREW M8X40 TX40HH COLLAR SCREW M8X40 TX40
-
7047013070000 BRAKE HOSE REAR 85 SXBRAKE HOSE REAR 85 SX
-
710770080019 O-RING 8,00X1,00 FORMULAO-RING 8,00X1,00 FORMULA
-
720770100019 O-RING 10X1 EPDMO-RING 10X1 EPDM
-
8047013080200 BRAKE CALIPER RE. CPL. 85SXBRAKE CALIPER RE. CPL. 85SX
-
8147013081000 REPAIR KIT SEAL RING REARREPAIR KIT SEAL RING REAR
-
8247013425000 AH SCREW + CIRCLIP 85/105AH SCREW + CIRCLIP 85/105
-
830799040009 TAB WASHER DIN6799-RA 4,0TAB WASHER DIN6799-RA 4,0
-
8547013085000 BLEEDER SCREW M8X1BLEEDER SCREW M8X1
-
9047013090200 BRAKE PADS REAR SINTER 85SXBRAKE PADS REAR SINTER 85SX
