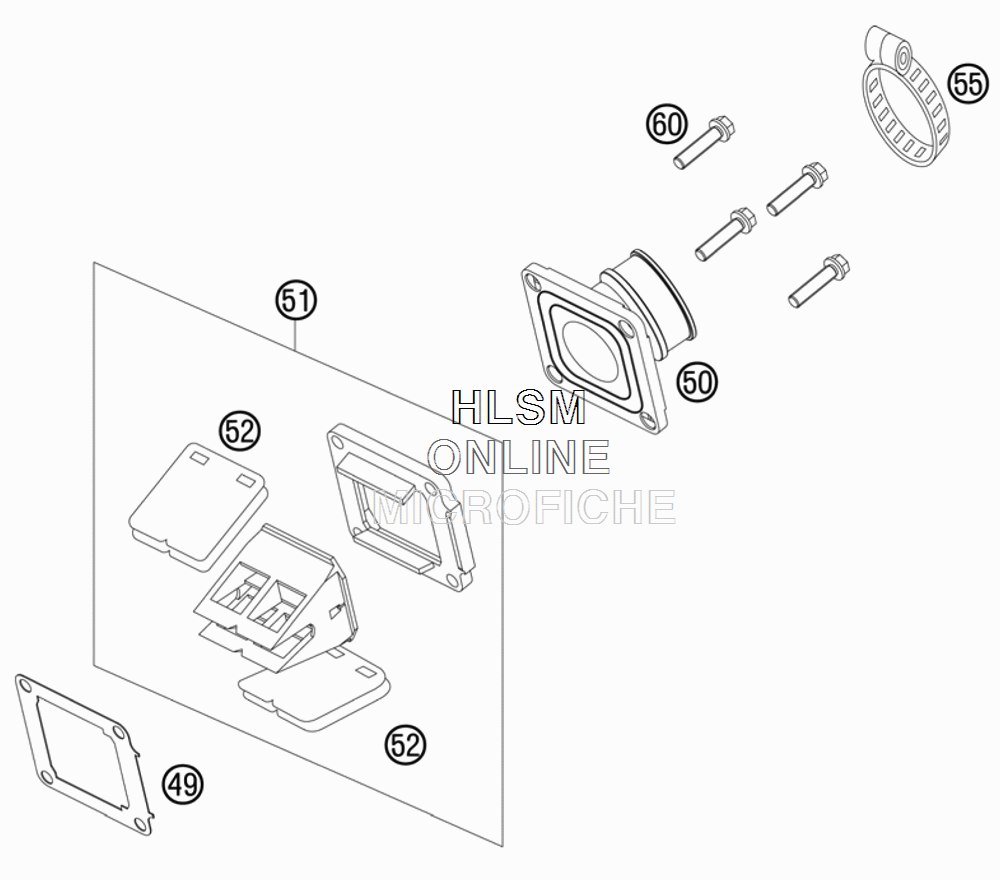

REED VALVE CASE для Ktm 85 SX - 2010 года выпуска
-
№АртикулНазвание
-
4947030049000 GASKET FOR INTAKE FLANGE 85 SXGASKET FOR INTAKE FLANGE 85 SX
-
5047030050100 INTAKE FLANGE 85 SXINTAKE FLANGE 85 SX
-
5147030051144 REED VALVE ASSY CPL.85 SXREED VALVE ASSY CPL.85 SX
-
5247030052144 REED VALVE CPL. 85 SXREED VALVE CPL. 85 SX
-
5551230061000 CLAMP 40/12 GEMICLAMP 40/12 GEMI
-
600025060253 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
