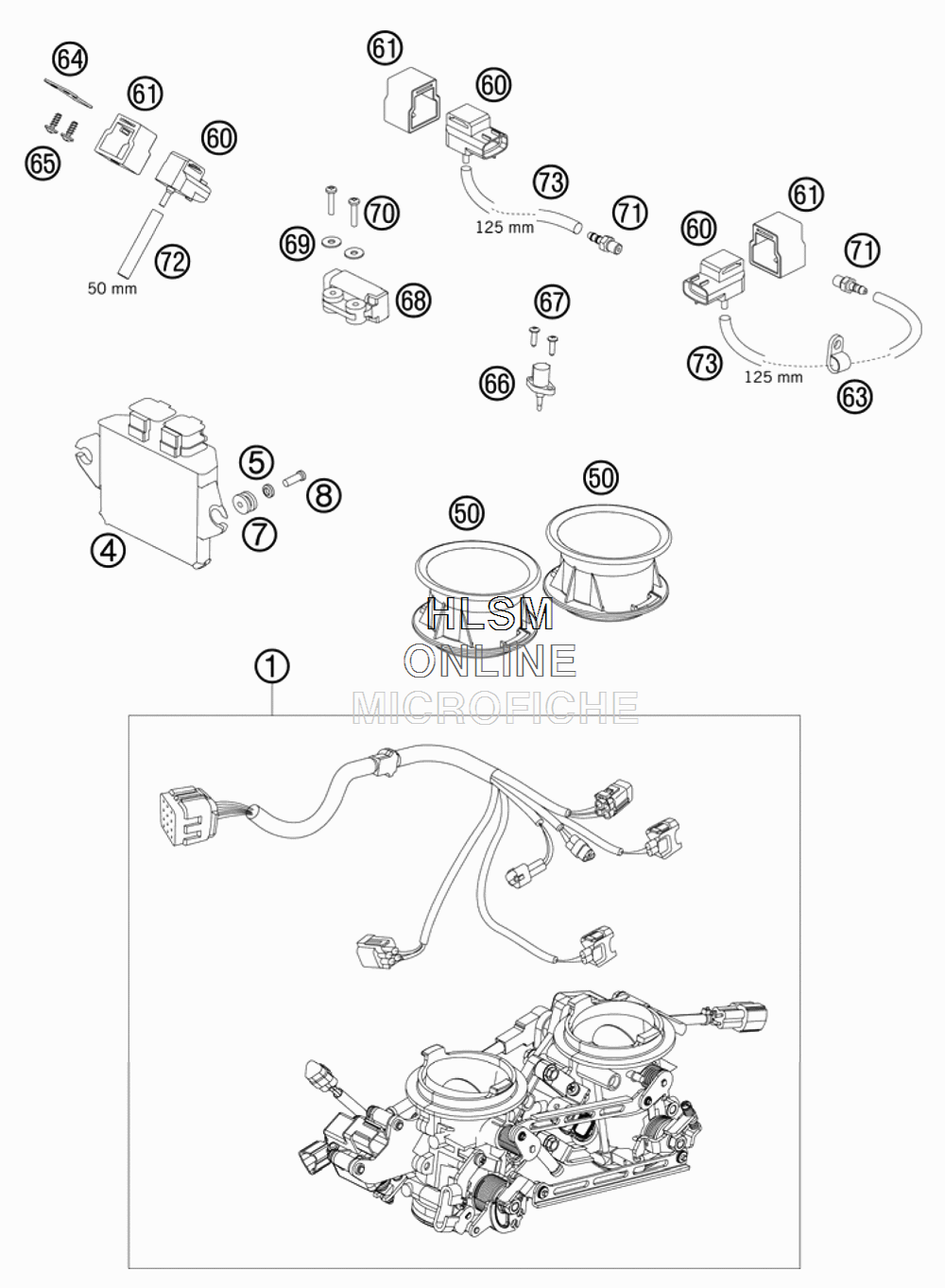

THROTTLE BODY для Ktm 990 ADVENTURE R - 2010 года выпуска
-
№АртикулНазвание
-
161041001000 THROTTLE BODY CPL.THROTTLE BODY CPL.
-
461041031200 TIMING CHARGER EFITIMING CHARGER EFI
-
560008045000 SPECIAL WASHER D=16,5MMSPECIAL WASHER D=16,5MM
-
760039030000 VIBRATION DAMPER DIGITALBOXVIBRATION DAMPER DIGITALBOX
-
80012060123 AH SCREW DIN6912 M6X12AH SCREW DIN6912 M6X12
-
5061041040000 INTAKE TRUMPETINTAKE TRUMPET
-
6061041085100 PRESSURE SENSORPRESSURE SENSOR
-
6161041085150 RUBBER SUPP. PRESSURE SENS.RUBBER SUPP. PRESSURE SENS.
-
6357013070100 PVC-CLAMP 7,9 MM HEYCO 3355PVC-CLAMP 7,9 MM HEYCO 3355
-
6461041085060 SUPPORT PRESSURE SENSORSUPPORT PRESSURE SENSOR
-
650081050121 SCREW FOR PLASTIC K50X12SCREW FOR PLASTIC K50X12
-
6661041080000 AMBIENT-AIR TEMPERATURE SENSORAMBIENT-AIR TEMPERATURE SENSOR
-
670081500181 SCREW FOR PLASTIC D=5X18SCREW FOR PLASTIC D=5X18
-
6861041088000 ROLLOVER SENSORROLLOVER SENSOR
-
6961041088050 SHIM 4,3X15X1,25MM GALVANIZEDSHIM 4,3X15X1,25MM GALVANIZED
-
700985040203 FLAT HEAD SCREW DIN7985-M 4X20FLAT HEAD SCREW DIN7985-M 4X20
-
7161036023100 VACUUM CONECTIONVACUUM CONECTION
-
7261041095050 HOSE 3,2X8,5 L=50 MMHOSE 3,2X8,5 L=50 MM
-
7360141095125 HOSE 3,2X8,5 L=125 MMHOSE 3,2X8,5 L=125 MM
