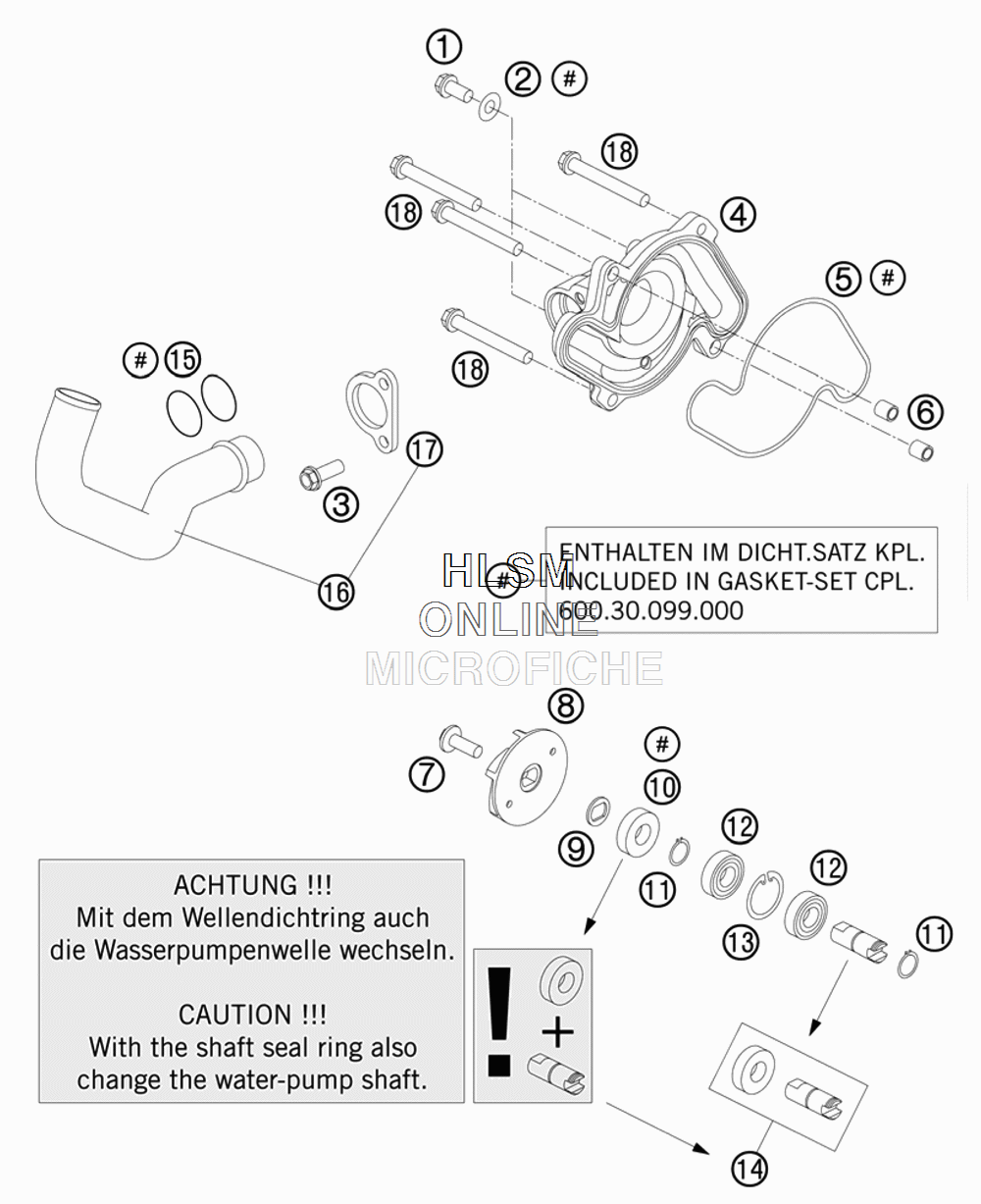

WATER PUMP для Ktm 990 ADVENTURE R - 2010 года выпуска

№

Артикул

Название
1

0025060106 HH COLLAR SCREW M6X10

HH COLLAR SCREW M6X10

500 ₽
2

0603061001 CU-SEAL RING DIN7603-6X10X1

CU-SEAL RING DIN7603-6X10X1

320 ₽
3

0025060166 HH COLLAR SCREW M6X16

HH COLLAR SCREW M6X16

500 ₽
4

6003515210023 MOLDED RING WATER PUMP COV.

MOLDED RING WATER PUMP COV.

13 900 ₽
5

60035053000 WATER-PUMP GASKET

WATER-PUMP GASKET

1 550 ₽
6

59030023000 DOWEL 6X8X11,5

DOWEL 6X8X11,5

910 ₽
7

0024060156 HH COLLAR SCREW M6X15

HH COLLAR SCREW M6X15

560 ₽
8

61235055000 WATER PUMP ROTOR

WATER PUMP ROTOR

1 750 ₽
9

60035055150 FORM WASHER 16X1 NIRO

FORM WASHER 16X1 NIRO

140 ₽
10

0760123073 SHAFT SEAL RING 12X30X7 PTFE

SHAFT SEAL RING 12X30X7 PTFE

3 360 ₽
11

0471120010 CIRCLIP DIN0471-12X1

CIRCLIP DIN0471-12X1

30 ₽
12

0625069010 GROOVED BALL BEARING 6901V C3

GROOVED BALL BEARING 6901V C3

5 490 ₽
13

0472240120 CIRCLIP DIN472 D=24X1,2

CIRCLIP DIN472 D=24X1,2

120 ₽
14

61135054044 WATER PUMP SHAFT W. SEAL RING INCL. SHAFT SEAL RING

WATER PUMP SHAFT W. SEAL RING INCL. SHAFT SEAL RING

17 700 ₽
15

0770250030 O-RING 25,00X3,00 NBR 70

O-RING 25,00X3,00 NBR 70

620 ₽
16

60035021000 ALUMINUM TUBE WATER-PUMP+CLAMP

ALUMINUM TUBE WATER-PUMP+CLAMP

9 700 ₽
17

60035021050 FIXING CLAMP WATER-P. TUBE

FIXING CLAMP WATER-P. TUBE

2 280 ₽
18

0025060606 HH COLLAR SCREW M6X60

HH COLLAR SCREW M6X60

560 ₽
