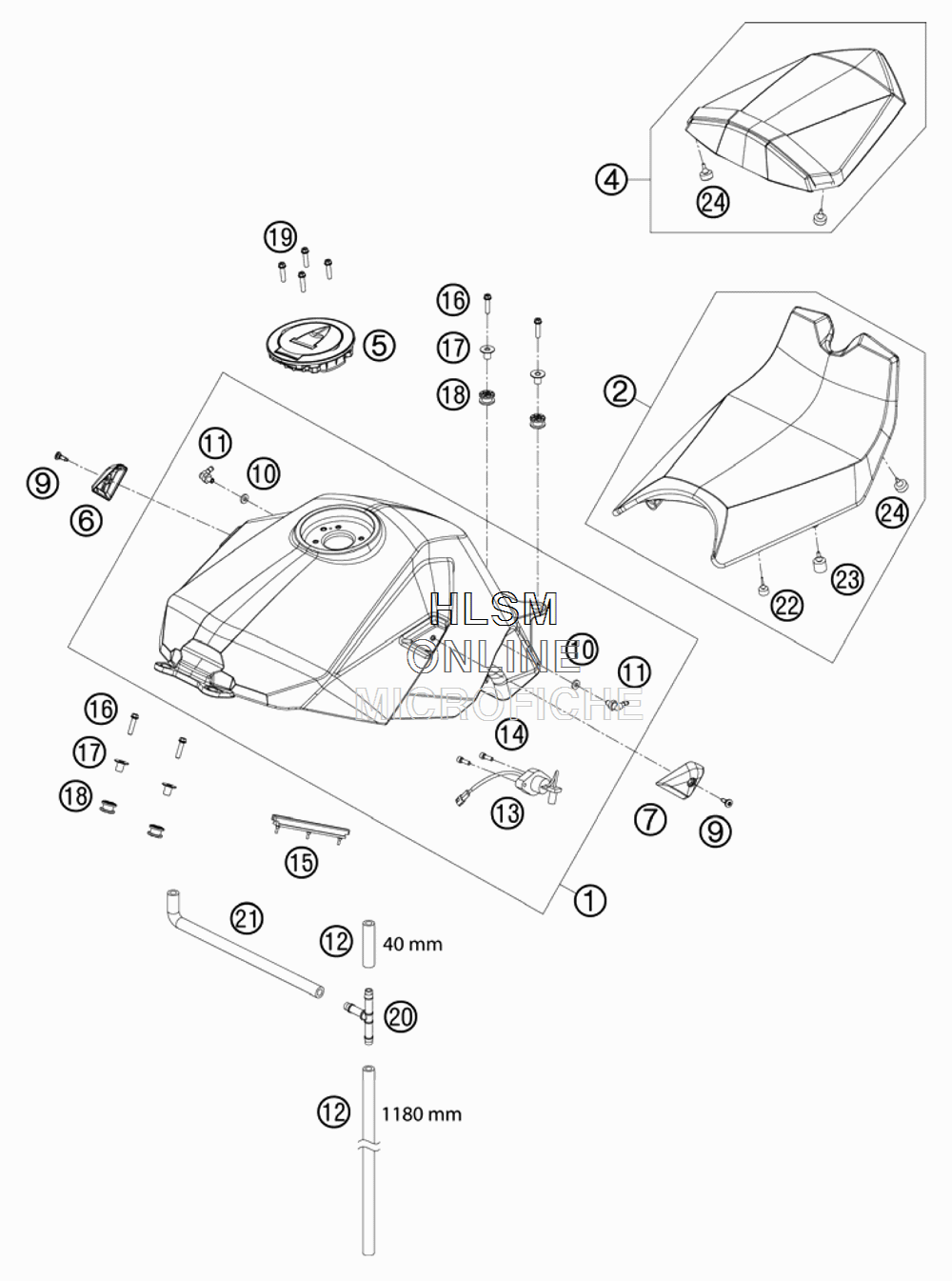

TANK SEAT COVER для Ktm 1190 RC8R TRACK - 2011 года выпуска
-
№АртикулНазвание
-
16900701314433A FUEL TANK CPL. (BLACK MATT)FUEL TANK CPL. (BLACK MATT)
-
269007040200 SEATSEAT
-
469007047100 PASSENGER SEATPASSENGER SEAT
-
569007008000 TANK CAPTANK CAP
-
66900702610030 TANK PROTECTION R/S BLACK BR.TANK PROTECTION R/S BLACK BR.
-
76900702510030 TANK PROTECTION L/S BLACK BR.TANK PROTECTION L/S BLACK BR.
-
969007025050 SPECIAL SCREW M5X12 ISA30 ALUSPECIAL SCREW M5X12 ISA30 ALU
-
1060007024050 GASKET FOR CONNECTING PIECEGASKET FOR CONNECTING PIECE
-
1160007024000 CONNECT.PIECE F.OVERFLOW M7CONNECT.PIECE F.OVERFLOW M7
-
1260007026001 HOSE NBR 5,4X9,4 PER METERHOSE NBR 5,4X9,4 PER METER
-
1358207080100 GAS-LEVEL SENSOR ADV.GAS-LEVEL SENSOR ADV.
-
140912050163 AH SCREW DIN0912-M 5X16AH SCREW DIN0912-M 5X16
-
1569007014100 TANK REST RUBBERTANK REST RUBBER
-
160025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
1769007028000 COLLAR BUSH. 6,2X10X21X14MMCOLLAR BUSH. 6,2X10X21X14MM
-
1869007027000 RUBBER SLEEVE TANK MOUNTRUBBER SLEEVE TANK MOUNT
-
190912050123 AH SCREW DIN0912-M 5X12AH SCREW DIN0912-M 5X12
-
2060015022000 T-CONNECTOR TS-6 03T-CONNECTOR TS-6 03
-
2169307031000 PREFORMED HOSE VENT. 9,4X5,4PREFORMED HOSE VENT. 9,4X5,4
-
2269007040010 DISTANCE RUBBER 14X8DISTANCE RUBBER 14X8
-
2369007040020 DISTANCE RUBBER 17,8X16DISTANCE RUBBER 17,8X16
-
2469007040030 DISTANCE RUBBER 18X 8DISTANCE RUBBER 18X 8
