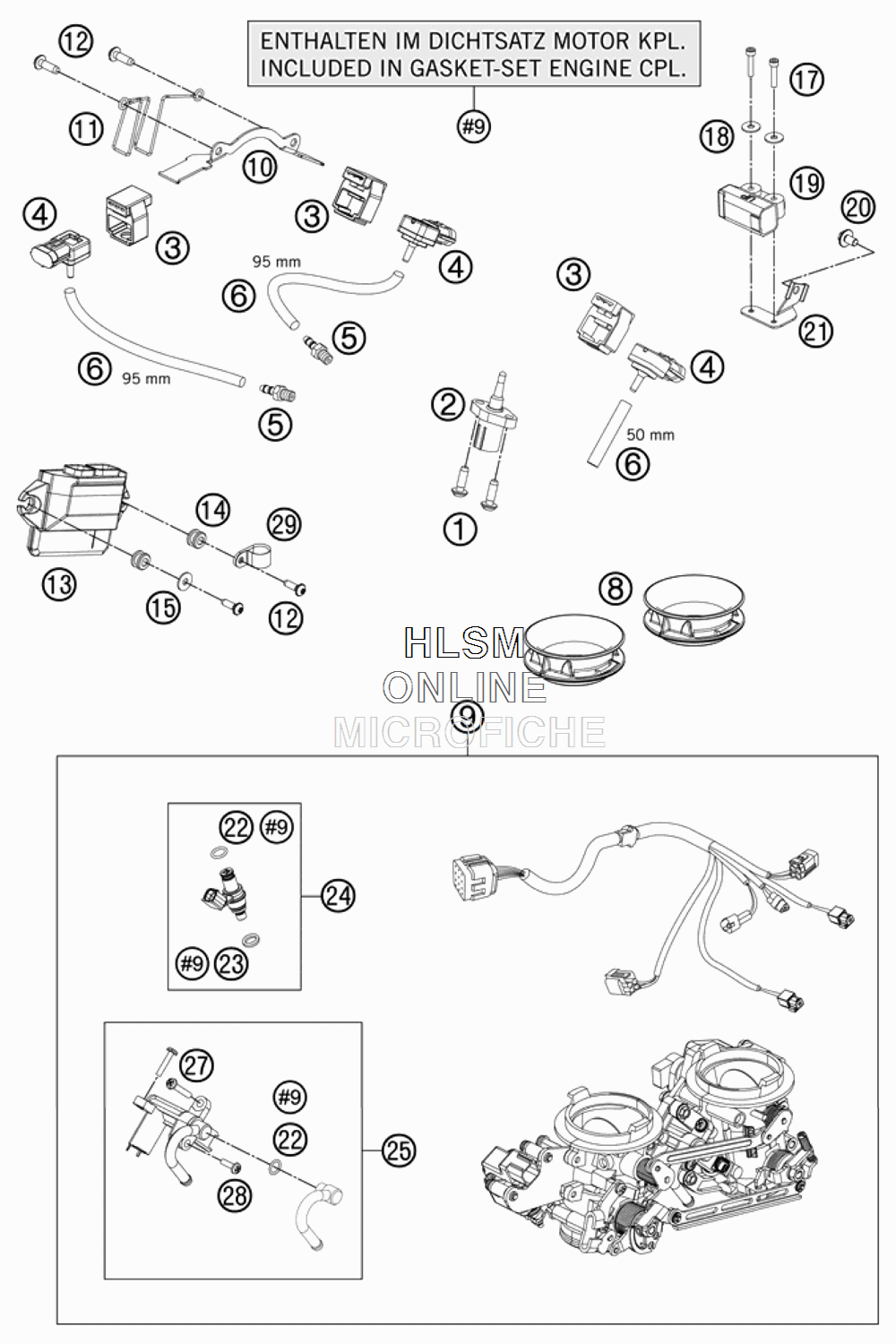

THROTTLE BODY для Ktm 1190 RC8R TRACK - 2011 года выпуска
-
№АртикулНазвание
-
10081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
-
261041080000 AMBIENT-AIR TEMPERATURE SENSORAMBIENT-AIR TEMPERATURE SENSOR
-
361041085150 RUBBER SUPP. PRESSURE SENS.RUBBER SUPP. PRESSURE SENS.
-
461041085100 PRESSURE SENSORPRESSURE SENSOR
-
561036023100 VACUUM CONECTIONVACUUM CONECTION
-
660031098001 HOSE 3,2X8,5 PER METERHOSE 3,2X8,5 PER METER
-
861241040000 INTAKE TRUMPETINTAKE TRUMPET
-
969341001000 THROTTLE BODY CPL. DK52THROTTLE BODY CPL. DK52
-
1069006001031 SENSOR-RETAIN. PLATE AIRBOXSENSOR-RETAIN. PLATE AIRBOX
-
1169006001032 HOLDER WIRING HARNESS REARHOLDER WIRING HARNESS REAR
-
120081050161 EJOT PT SCREW K50X16 1451EJOT PT SCREW K50X16 1451
-
1361041031300 TIMING CHARGER EFITIMING CHARGER EFI
-
1460039030000 VIBRATION DAMPER DIGITALBOXVIBRATION DAMPER DIGITALBOX
-
150021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
170912040203 AH SCREW DIN 912-M 4X20AH SCREW DIN 912-M 4X20
-
1861041088050 SHIM 4,3X15X1,25MM GALVANIZEDSHIM 4,3X15X1,25MM GALVANIZED
-
1961041088000 ROLLOVER SENSORROLLOVER SENSOR
-
200024060136 HH COLLAR SCREW M6X13 TX30HH COLLAR SCREW M6X13 TX30
-
2169041088050 HOLDER ROLLOVER SENSORHOLDER ROLLOVER SENSOR
-
2275041023020 O-RINGO-RING
-
2375041023010 SEAL RINGSEAL RING
-
2461241023044 INJECTOR CPL.INJECTOR CPL.
-
2561241013044 FUEL HOSE CPL.FUEL HOSE CPL.
-
2775041013060 SCREW SHOULDERSCREW SHOULDER
-
2861041060040 SCREW FOR SUPPORT STEPPER MOT.SCREW FOR SUPPORT STEPPER MOT.
-
2969007029000 PVC-CLAMP HEYCO 13, 9 3379PVC-CLAMP HEYCO 13, 9 3379
