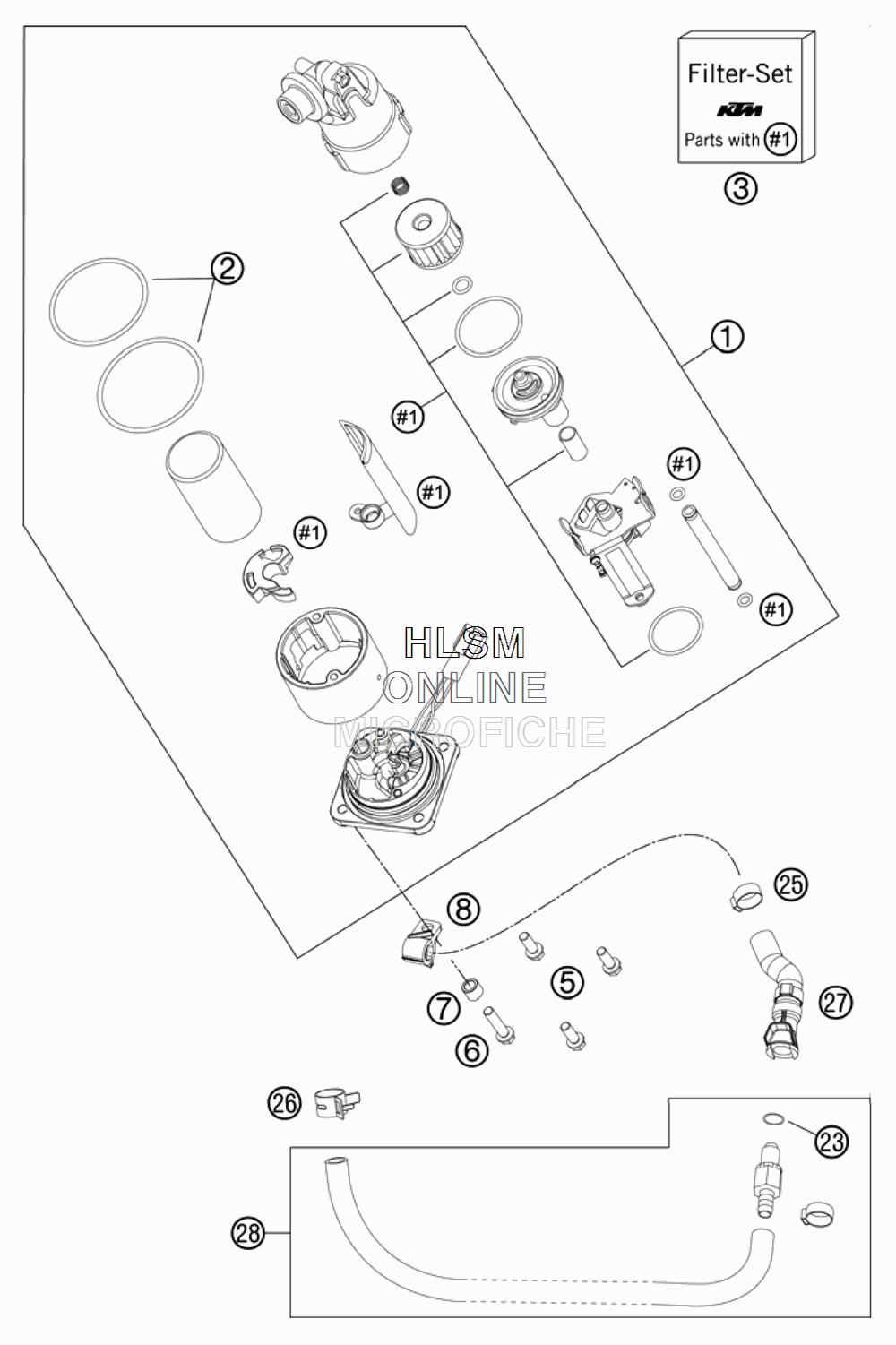

FUEL PUMP для Ktm 1190 RC8R WHITE - 2011 года выпуска
-
№АртикулНазвание
-
161007088200 PUMP WITHOUT RESERVE INDICATORPUMP WITHOUT RESERVE INDICATOR
-
261007089000 O-RING SET FOR FUEL PUMPO-RING SET FOR FUEL PUMP
-
361007090000 FILTER-SET FUEL PUMPFILTER-SET FUEL PUMP
-
50025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
60025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
769014014000 BUSHING 6,1X9,2X7,5BUSHING 6,1X9,2X7,5
-
869007017000 HOSE HOLDERHOSE HOLDER
-
2358507012000 O-RING VITON F. PLUG CPCO-RING VITON F. PLUG CPC
-
2500050157706 VARIABLE ONE-EAR CLAMP 15,7MMVARIABLE ONE-EAR CLAMP 15,7MM
-
2600049140121 CLAMP STD DN14CLAMP STD DN14
-
2769007015000 FUEL PIPE (TANK) CPL.FUEL PIPE (TANK) CPL.
-
2869007016050 FUEL HOSE DKK CPL.FUEL HOSE DKK CPL.
