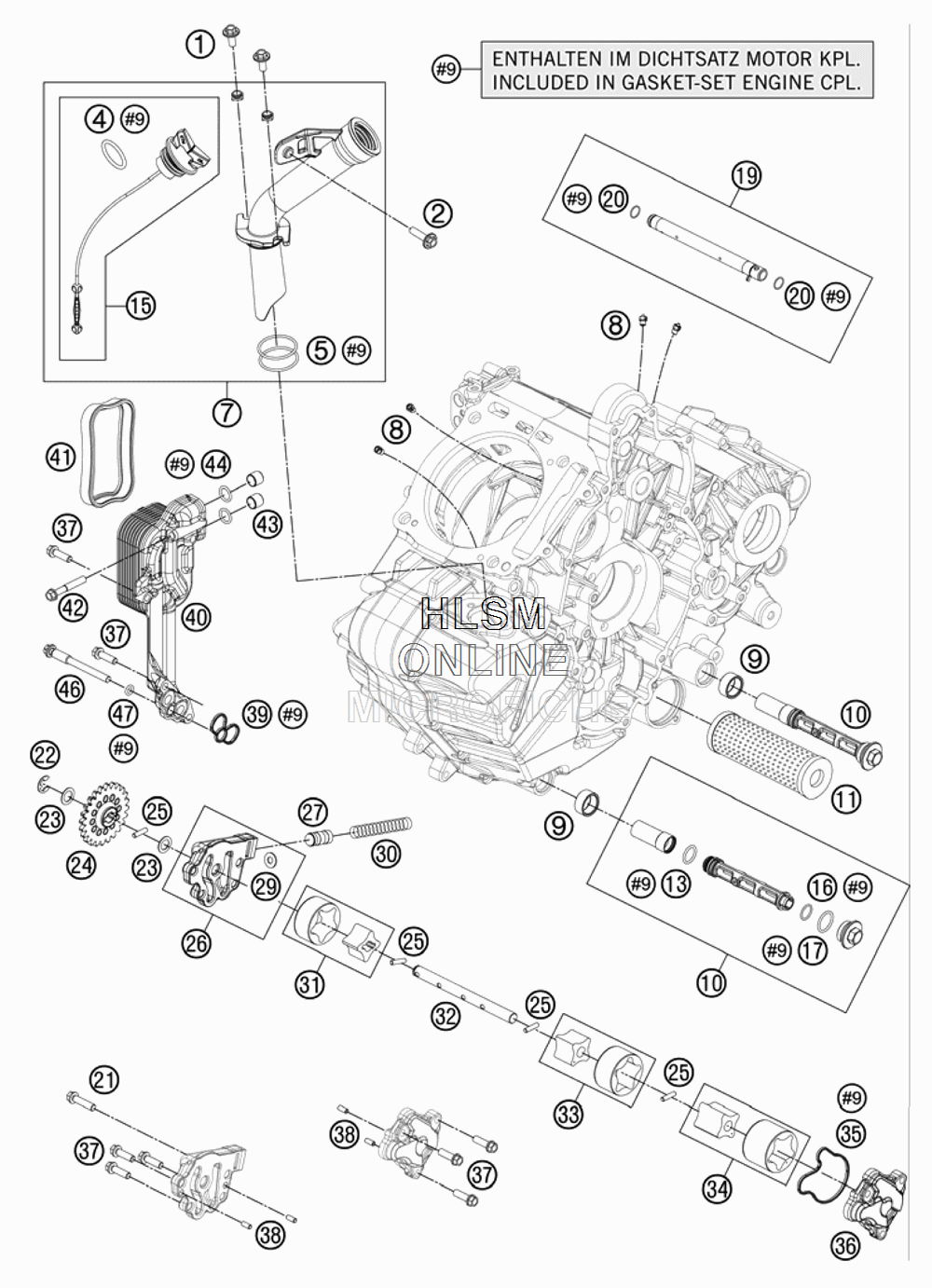

LUBRICATING SYSTEM для Ktm 1190 RC8R WHITE - 2011 года выпуска
-
№АртикулНазвание
-
10024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
20024060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
40770250030 O-RING 25,00X3,00 NBR 70O-RING 25,00X3,00 NBR 70
-
50770300020 O-RING 30X2,0 FPMO-RING 30X2,0 FPM
-
761238085200 OILFILLTUBE CPL.OILFILLTUBE CPL.
-
860030063070 OIL JET 70 M5OIL JET 70 M5
-
961238017000 OIL SCREEN BUSHINGOIL SCREEN BUSHING
-
1061238021100 OIL SCREEN CPL.OIL SCREEN CPL.
-
1160038015000 OIL FILTEROIL FILTER
-
130770140200 O-RING 14,00X2,00O-RING 14,00X2,00
-
1561238085244 OIL DIPSTICK CPL. W. O-RINGOIL DIPSTICK CPL. W. O-RING
-
160770125015 O-RING 12,5X1,5 NBRO-RING 12,5X1,5 NBR
-
170770170200 O-RING 17,00X2,00O-RING 17,00X2,00
-
1961230065000 OIL INJECTION TUBE CPL.OIL INJECTION TUBE CPL.
-
200770010010 O-RING 10,00X1,00 NBR 70 SHO-RING 10,00X1,00 NBR 70 SH
-
210025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
220799080000 TAB WASHER DIN6799 RS8TAB WASHER DIN6799 RS8
-
2360038007010 WASHER 10X16X0,5WASHER 10X16X0,5
-
2460038001124 OIL PUMP GEAR 24-TOIL PUMP GEAR 24-T
-
250402041580 NEEDLE ROLLER NRB 4X15,8 G2NEEDLE ROLLER NRB 4X15,8 G2
-
2661238009144 PRESSURE PUMP COVER CPL.PRESSURE PUMP COVER CPL.
-
2760038028000 CONTROL PISTONCONTROL PISTON
-
2950337073000 SHIMSHIM
-
3061238026000 CONTROL SPRINGCONTROL SPRING
-
3160038009000 ROTOR-SET 19MMROTOR-SET 19MM
-
3261238002000 OIL PUMP SHAFTOIL PUMP SHAFT
-
3361238011000 ROTOR-SET 22MMROTOR-SET 22MM
-
3461238010000 ROTOR-SET 30MMROTOR-SET 30MM
-
3561238008150 MOLDED RING SUCTION PUMP COVERMOLDED RING SUCTION PUMP COVER
-
3661238008200 SUCTION PUMP COVERSUCTION PUMP COVER
-
370025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
380402050980 NEEDLE ROLLER DIN5402 5X9,8NEEDLE ROLLER DIN5402 5X9,8
-
3961238051000 MOLDED RINGMOLDED RING
-
406923805000033 OIL COOLER CPL.OIL COOLER CPL.
-
4169038050010 RUBBER COVER OIL COOLERRUBBER COVER OIL COOLER
-
420025060506 HH COLLAR SCREW M6X50 TX30HH COLLAR SCREW M6X50 TX30
-
4361238052000 BUSHINGBUSHING
-
440770012021 O-RING 12X2 VITON GREENO-RING 12X2 VITON GREEN
-
4661238055000 REGULATING SCREWREGULATING SCREW
-
470770060020 O-RING NG 6,00X2,00 NBR 70O-RING NG 6,00X2,00 NBR 70
