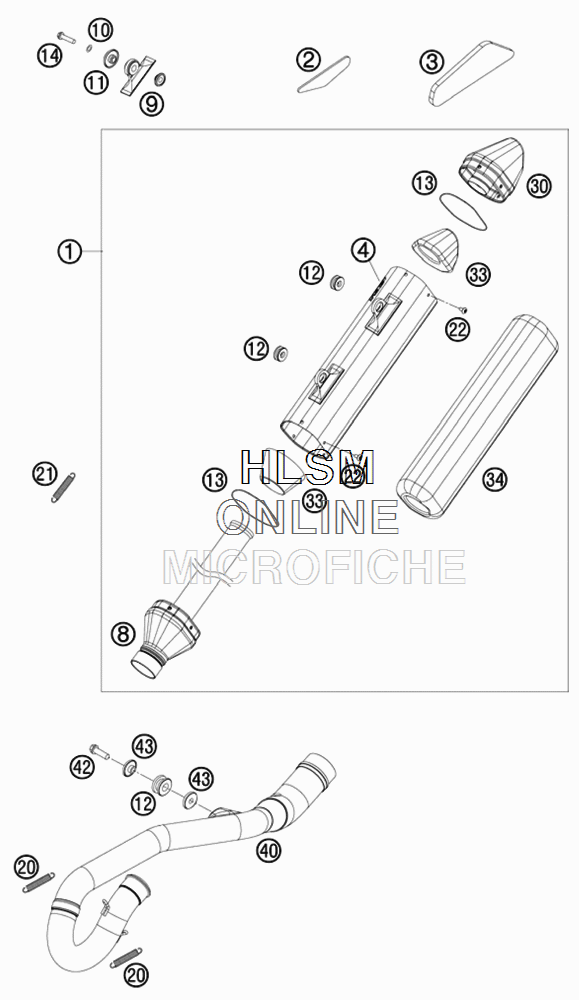

EXHAUST SYSTEM для Ktm 250 SXF - 2011 года выпуска
-
№АртикулНазвание
-
1*77105079000 SILENCERSILENCER
-
277308013050 THERMAL PROTECTION FOILTHERMAL PROTECTION FOIL
-
3*77208013050 THERMAL PROTECTION FOILTHERMAL PROTECTION FOIL
-
4*77105079056 SILENCER HOUSINGSILENCER HOUSING
-
8*77105079050 CONNECTING CAP CPL.CONNECTING CAP CPL.
-
9*77205169000 BUSHING 7.5X12X28X8.3BUSHING 7.5X12X28X8.3
-
100137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
11*77205069000 BUSHING 7.5X12X20X8.2BUSHING 7.5X12X20X8.2
-
12*77205068000 DAMP. COMPON. BLACKDAMP. COMPON. BLACK
-
13*0770740015 O-RING 74,00X1,50 FKM 75SHO-RING 74,00X1,50 FKM 75SH
-
140025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
2050305016000 TEN.SPRING L=62MM EY.MOVEABLETEN.SPRING L=62MM EY.MOVEABLE
-
21*50305116000 TEN.SPRING L=75MM EY.MOVEABLETEN.SPRING L=75MM EY.MOVEABLE
-
2258605083010 SCREW TORX M5X10SCREW TORX M5X10
-
30*77105079060 ENDCAP CPL.ENDCAP CPL.
-
3377005078065 STUFFING YARN 65 GRAMSTUFFING YARN 65 GRAM
-
34*77105078510 STUFFING YARN 510 GRAMSTUFFING YARN 510 GRAM
-
40*77105007000 EXHAUST MANIFOLD 250 SX-FEXHAUST MANIFOLD 250 SX-F
-
420025080256 HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
4359405069000 BUSHING FOR EXHAUST SUPPORTBUSHING FOR EXHAUST SUPPORT
