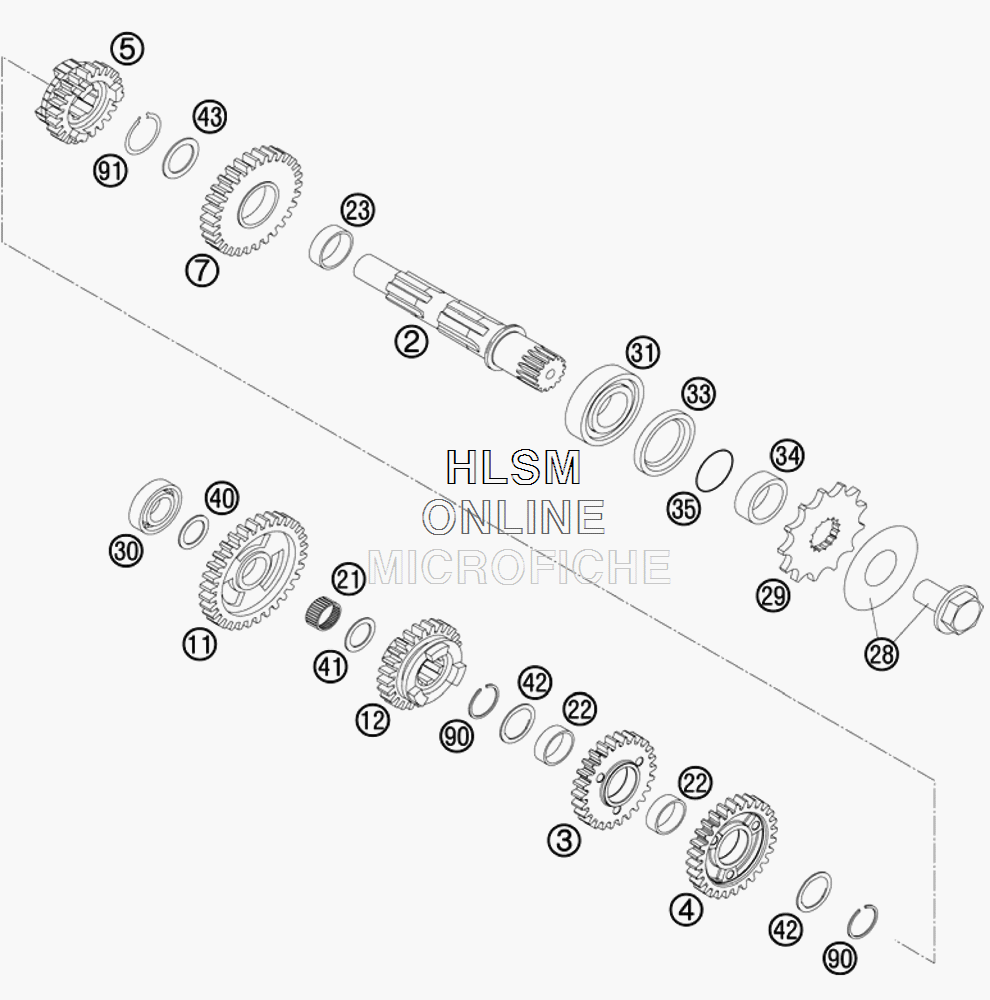

TRANSMISSION II - COUNTERSHAFT для Ktm 250 SXF - 2011 года выпуска

№

Артикул

Название
2

77033010000 COUNTER SHAFT

COUNTER SHAFT

23 980 ₽
3

77033014000 IDLER G. 4TH G.26-T

IDLER G. 4TH G.26-T

20 130 ₽
4

77033013200 IDLER 3. GEAR T=28

IDLER 3. GEAR T=28

21 350 ₽
5

77033016200 SLIDING G. 6TH G.24-T

SLIDING G. 6TH G.24-T

29 470 ₽
7

77033012000 IDLER G. 2ND G. 30-T

IDLER G. 2ND G. 30-T

17 410 ₽
11

77033011000 IDLER G. 1ST G. 32-T

IDLER G. 1ST G. 32-T

18 310 ₽
12

77033015200 SLIDING G. 5TH G.25-T

SLIDING G. 5TH G.25-T

29 670 ₽
21

50033098000 NEEDLE BEARING K20X24X10

NEEDLE BEARING K20X24X10

3 240 ₽
22

0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED

NEEDLE BEAR.K 22X26X10 DIVIDED

3 130 ₽
23

50333023000 IDLER GEAR BUSHING 25X28X9,7 D

IDLER GEAR BUSHING 25X28X9,7 D

7 630 ₽
28

59033034044 SCREW.9+SPRING WASHER

SCREW.9+SPRING WASHER

2 050 ₽
29

50033029013 FRONT SPROCKET 13-T

FRONT SPROCKET 13-T

8 110 ₽
29

50033029014 FRONT SPROCKET 14-T

FRONT SPROCKET 14-T

8 110 ₽
29

50033029015 FRONT SPROCKET 15-T

FRONT SPROCKET 15-T

7 100 ₽
30

0625060031 BALL BEARING 6003 TN9 C4

BALL BEARING 6003 TN9 C4

6 310 ₽
31

0625062054 BALL BEARING 6205 C3 NTN

BALL BEARING 6205 C3 NTN

5 550 ₽
33

0760324571 SHAFT SEAL RING 32X45X7 BSLNBR

SHAFT SEAL RING 32X45X7 BSLNBR

1 140 ₽
34

54633014100 SPACER BUSHING 12MM

SPACER BUSHING 12MM

5 140 ₽
35

0770020220 O-RING 25,12X1,78 NBR70

O-RING 25,12X1,78 NBR70

590 ₽
40

56033030000 STOP DISC 17,2X30X1

STOP DISC 17,2X30X1

970 ₽
41

59033080000 SHIM 20X32X1

SHIM 20X32X1

440 ₽
42

50333043000 STOP DISC 25,2X32X1

STOP DISC 25,2X32X1

1 230 ₽
43

0988253510 THRUST WASH. DIN0988-25X35X1,0

THRUST WASH. DIN0988-25X35X1,0

350 ₽
90

77033022000 AXIAL-CIRCLIP 25X1,65

AXIAL-CIRCLIP 25X1,65

970 ₽
91

0471250120 CIRCLIP DIN0471-25X1,2

CIRCLIP DIN0471-25X1,2

290 ₽
