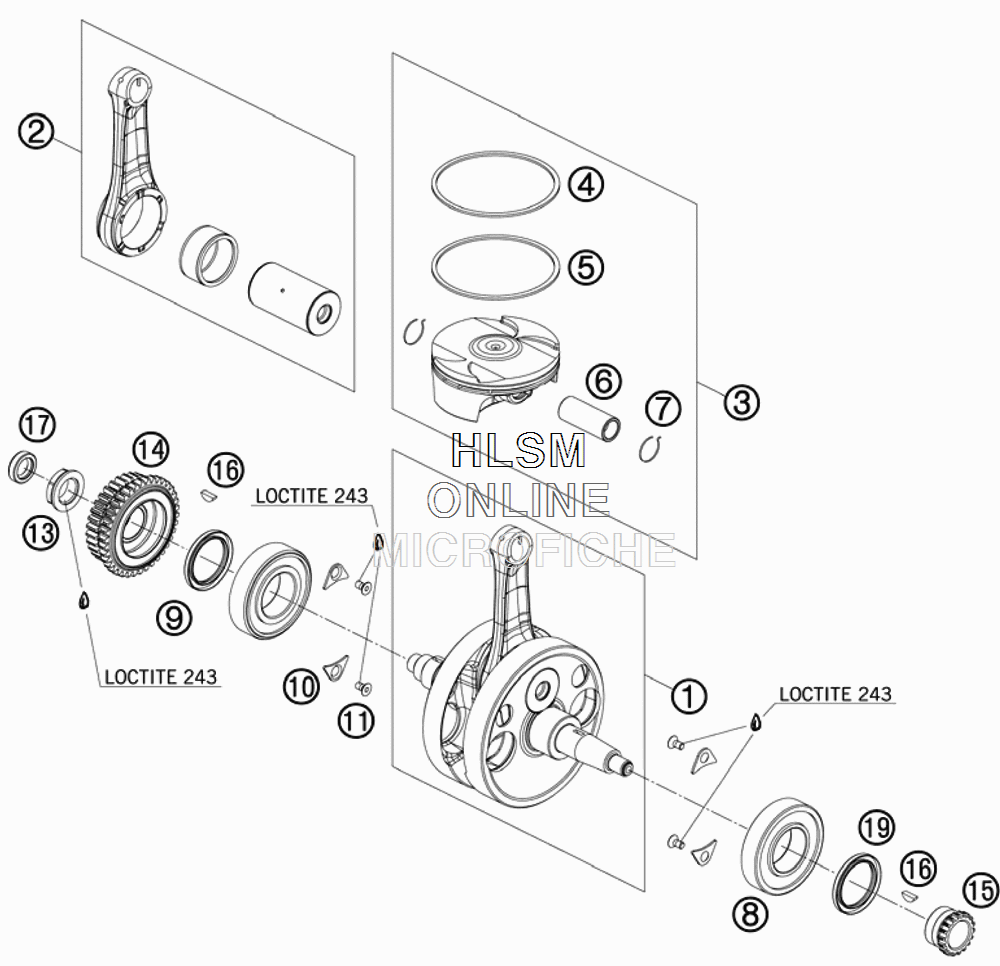

CRANKSHAFT PISTON для Ktm 450 EXC - 2011 года выпуска
-
№АртикулНазвание
-
178030018300 CRANKSHAFT CPL.CRANKSHAFT CPL.
-
278030015144 CONN. ROD REPAIR KITCONN. ROD REPAIR KIT
-
378030007300I PISTON CPL.PISTON CPL.
-
378030007300II PISTON CPL.PISTON CPL.
-
478030030100 COMPRESSION RINGCOMPRESSION RING
-
578030032200 OIL SCRAPER PISTON RINGOIL SCRAPER PISTON RING
-
678030033000 PISTON PINPISTON PIN
-
777330074000 CIRCLIPCIRCLIP
-
80625062071 BALL BEARING 6207 TM-SX07E 39BALL BEARING 6207 TM-SX07E 39
-
90760354773 SHAFT SEAL RING 35X47X7 A-DUOSHAFT SEAL RING 35X47X7 A-DUO
-
1075030085000 RETAINING PLATE F. CS BEARINGRETAINING PLATE F. CS BEARING
-
110019050103 INT. TORX FLAT HEAD M 5X10 8.8INT. TORX FLAT HEAD M 5X10 8.8
-
1378030029200 NUT PRIMARY WHEEL M20X1,5NUT PRIMARY WHEEL M20X1,5
-
1478032000333 PRIMARY WHEELPRIMARY WHEEL
-
1578036014200 TIMING GEAR 18T.TIMING GEAR 18T.
-
160888030037 WOODRUFF KEY DIN6888-3X3,7WOODRUFF KEY DIN6888-3X3,7
-
170760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
190760354774 SHAFT SEAL RING 35X47X7 VITONSHAFT SEAL RING 35X47X7 VITON
