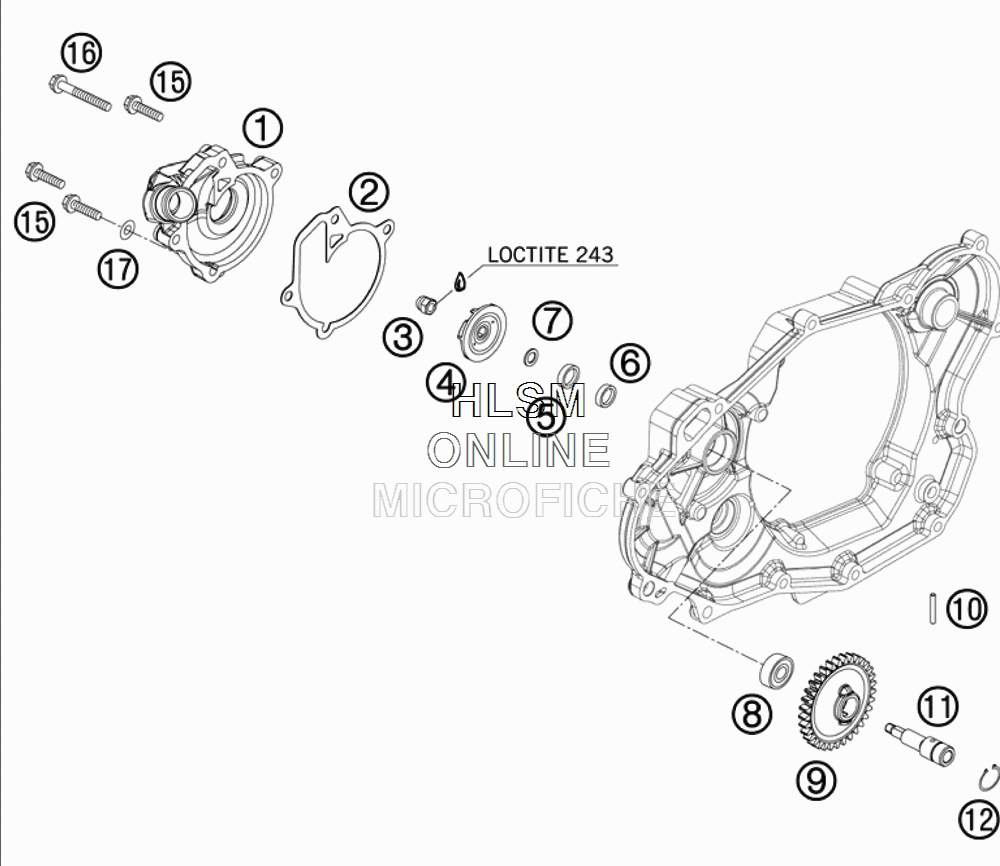

WATER PUMP для Ktm 450 EXC - 2011 года выпуска
-
№АртикулНазвание
-
17803505200015 WATER PUMP COVER GREYWATER PUMP COVER GREY
-
278035053000 GASKET WAPU-COVERGASKET WAPU-COVER
-
30587060002 HH CAP NUT DIN1587-M 6 SS.HH CAP NUT DIN1587-M 6 SS.
-
477335055100 WATER-PUMP WHEELWATER-PUMP WHEEL
-
50760102455 SHAFT SEAL RINGX24X5,5SHAFT SEAL RINGX24X5,5
-
60760102440 SHAFT SEAL RINGX24X4SHAFT SEAL RINGX24X4
-
778035054110 SPACER SHIMSPACER SHIM
-
80625060001 BALL BEARING 6000/C3BALL BEARING 6000/C3
-
978035054001 DRIVE WHEEL WAPU PLASTIC MAT.DRIVE WHEEL WAPU PLASTIC MAT.
-
100402032180 NEEDLE ROLLER DIN5402 3X21,8NEEDLE ROLLER DIN5402 3X21,8
-
1178035054100 WATER PUMP SHAFTWATER PUMP SHAFT
-
120471140100 LOCK WASHER DIN0471-14X1LOCK WASHER DIN0471-14X1
-
150025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
160025060556 HH COLLAR SCREW M6X55 TX30HH COLLAR SCREW M6X55 TX30
-
170603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
