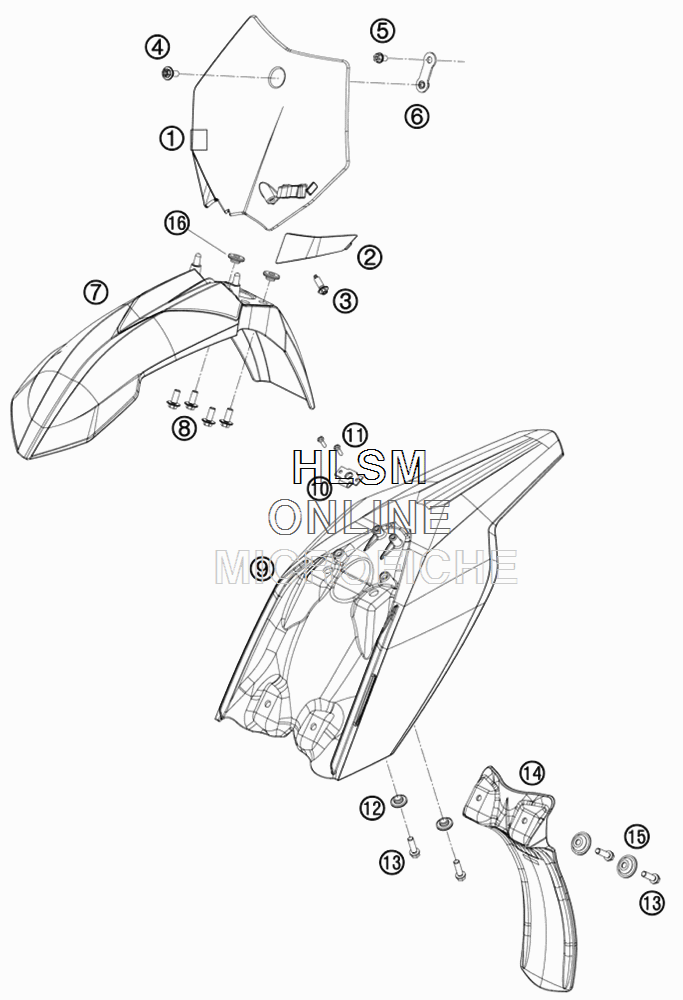

MASK FENDERS для Ktm 50 SX - 2011 года выпуска
-
№АртикулНазвание
-
1*4520800700028 START NUMBER PLATESTART NUMBER PLATE
-
2*4520802200030 BRAKE HOSE GUIDEBRAKE HOSE GUIDE
-
30017060204 EJOT PT SCREW K60X20 ALU WS=6EJOT PT SCREW K60X20 ALU WS=6
-
40024060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
50025060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
645208007050 RETAINING PLATE F. NUMBER PL.RETAINING PLATE F. NUMBER PL.
-
745208010000X4 FENDER FRONT SX 2010FENDER FRONT SX 2010
-
80024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
9*4520801300028 REAR PART WHITEREAR PART WHITE
-
1045007040050 QUICK RELEASE LATCHPLATEQUICK RELEASE LATCHPLATE
-
110981350163 SHEET MET.SCR.DIN7981- 3,5X16SHEET MET.SCR.DIN7981- 3,5X16
-
1254808020000 SPACER BUSHINGSPACER BUSHING
-
130025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
1445206010000 SPLASH PROTECT. 50 SXSPLASH PROTECT. 50 SX
-
1572210079000 BUCKETBUCKET
-
1650213161000 COLLAR BUSHINGCOLLAR BUSHING
