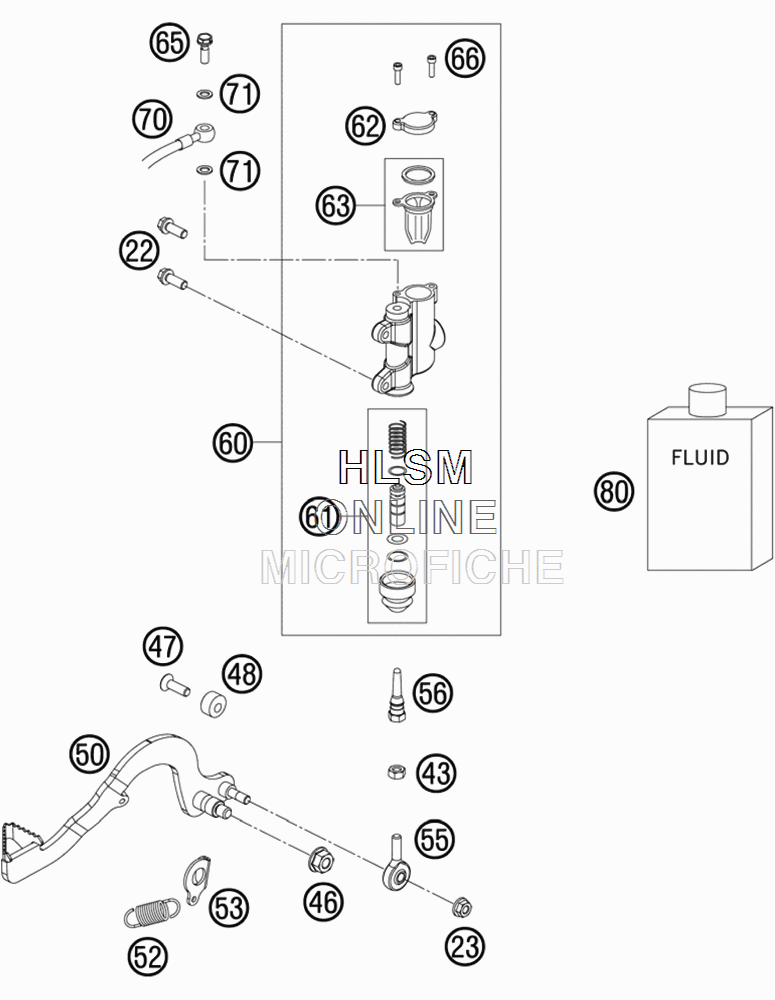

REAR BRAKE CONTROL для Ktm 50 SX - 2011 года выпуска
-
№АртикулНазвание
-
220025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
2356509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
430934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
4654310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
47*0991060202 FLAT HEAD DIN7991-M 6X20FLAT HEAD DIN7991-M 6X20
-
4858303063000 BRAKE LEVER STOP 93BRAKE LEVER STOP 93
-
5045213050000 FOOT BRAKE LEVERFOOT BRAKE LEVER
-
5254603062000 RETURN SPRING FOR BRAKE LEVERRETURN SPRING FOR BRAKE LEVER
-
5345213053000 LOCK WASHER 50 SXLOCK WASHER 50 SX
-
5554813055000 SWIVEL HEAD KA6SWIVEL HEAD KA6
-
5647013056100 PRESSURE ROD 85 SXPRESSURE ROD 85 SX
-
6046113060000 REAR BRAKE CYL. 50+65REAR BRAKE CYL. 50+65
-
6147013061000 REP. SET PISTON REAR D=11REP. SET PISTON REAR D=11
-
6247013062000 CYLINDER COVER REAR 85 SXCYLINDER COVER REAR 85 SX
-
6347013063000 GASKET CYLINDER COVER REARGASKET CYLINDER COVER REAR
-
6546113325000 HOLLOW SCREW M6HOLLOW SCREW M6
-
660912040103 AH.SCREW DIN0912-M 4X10AH.SCREW DIN0912-M 4X10
-
7045113170000 BRAKE HOSE REAR 50 LCBRAKE HOSE REAR 50 LC
-
710770060019 O-RING 6,00X1,00 FORMULAO-RING 6,00X1,00 FORMULA
-
8000062030000 BRAKE FLUID DOT5.1 0,25LBRAKE FLUID DOT5.1 0,25L
