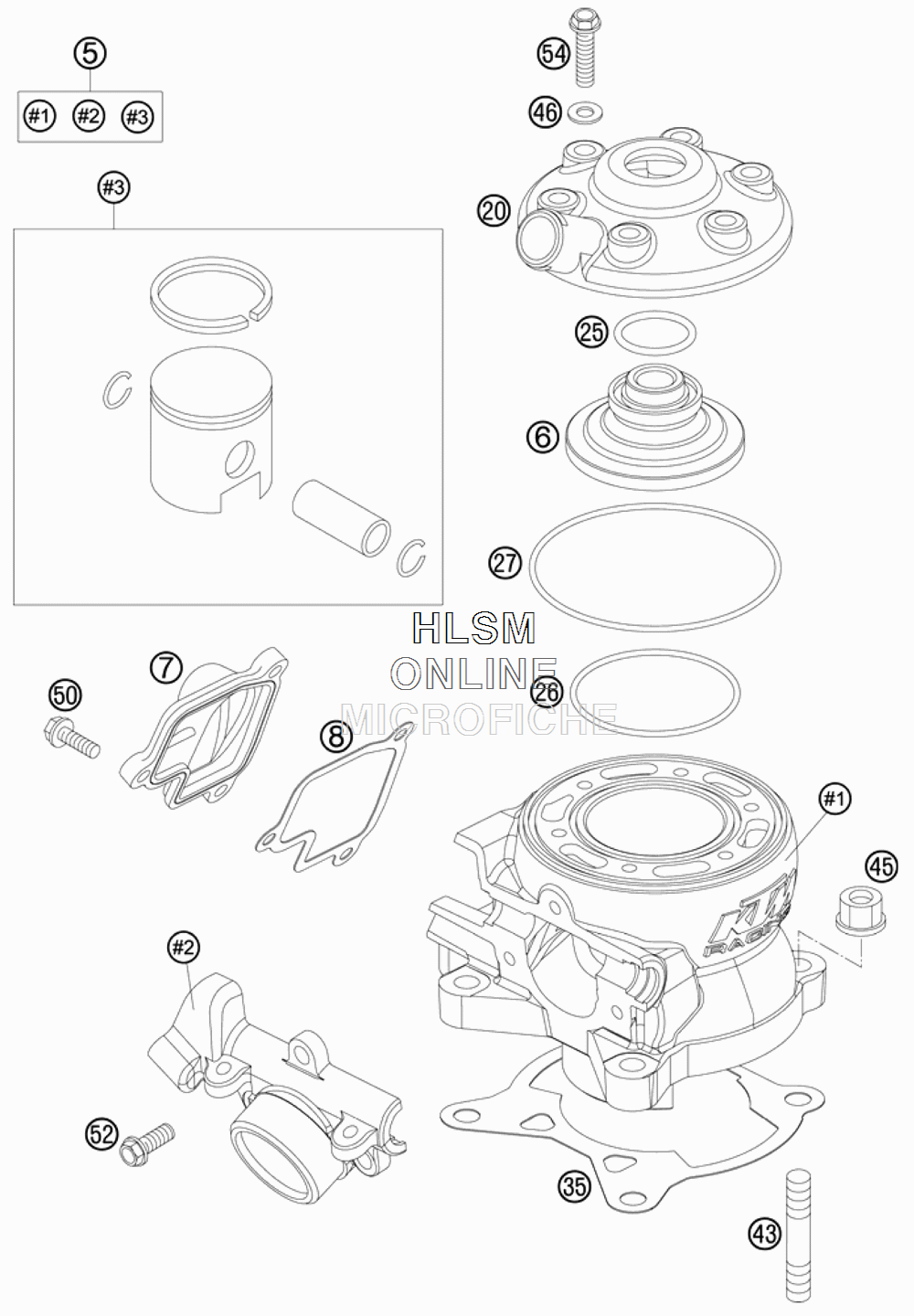

CYLINDER для Ktm 85 SX 19/16 - 2011 года выпуска
-
№АртикулНазвание
-
547030038000 CYLINDER, PISTON, FLANGECYLINDER, PISTON, FLANGE
-
647030106100 CYLINDER HEAD INSERT 85 SXCYLINDER HEAD INSERT 85 SX
-
747037007000 CONTROL COVER 85 SXCONTROL COVER 85 SX
-
847037008000 GASKET FOR CONTROL COVERGASKET FOR CONTROL COVER
-
2047030006100 CYLINDER HEAD 85 SX 2007CYLINDER HEAD 85 SX 2007
-
250770220025 O-RING 22,00X2,5 VITON 75SHO-RING 22,00X2,5 VITON 75SH
-
260770540020 O-RING 54X2 VITONO-RING 54X2 VITON
-
270770820020 O-RING 82X2 SILICONEO-RING 82X2 SILICONE
-
3547030035000 CYLINDER BASE GASKET 0,50MMCYLINDER BASE GASKET 0,50MM
-
3547030035020 CYLINDER BASE GASKET 0,20MMCYLINDER BASE GASKET 0,20MM
-
3547030035030 CYLINDER BASE GASKET 0,30MMCYLINDER BASE GASKET 0,30MM
-
430835080240 STUD DIN35-M 8X24STUD DIN35-M 8X24
-
4546030045000 COLLAR NUT M8 WS=10COLLAR NUT M8 WS=10
-
460603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
500015050123 HH COLLAR SCREW M 5X12 WS=8HH COLLAR SCREW M 5X12 WS=8
-
520015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
5447030079000 CYL.HEAD BOLT 85 SXCYL.HEAD BOLT 85 SX
