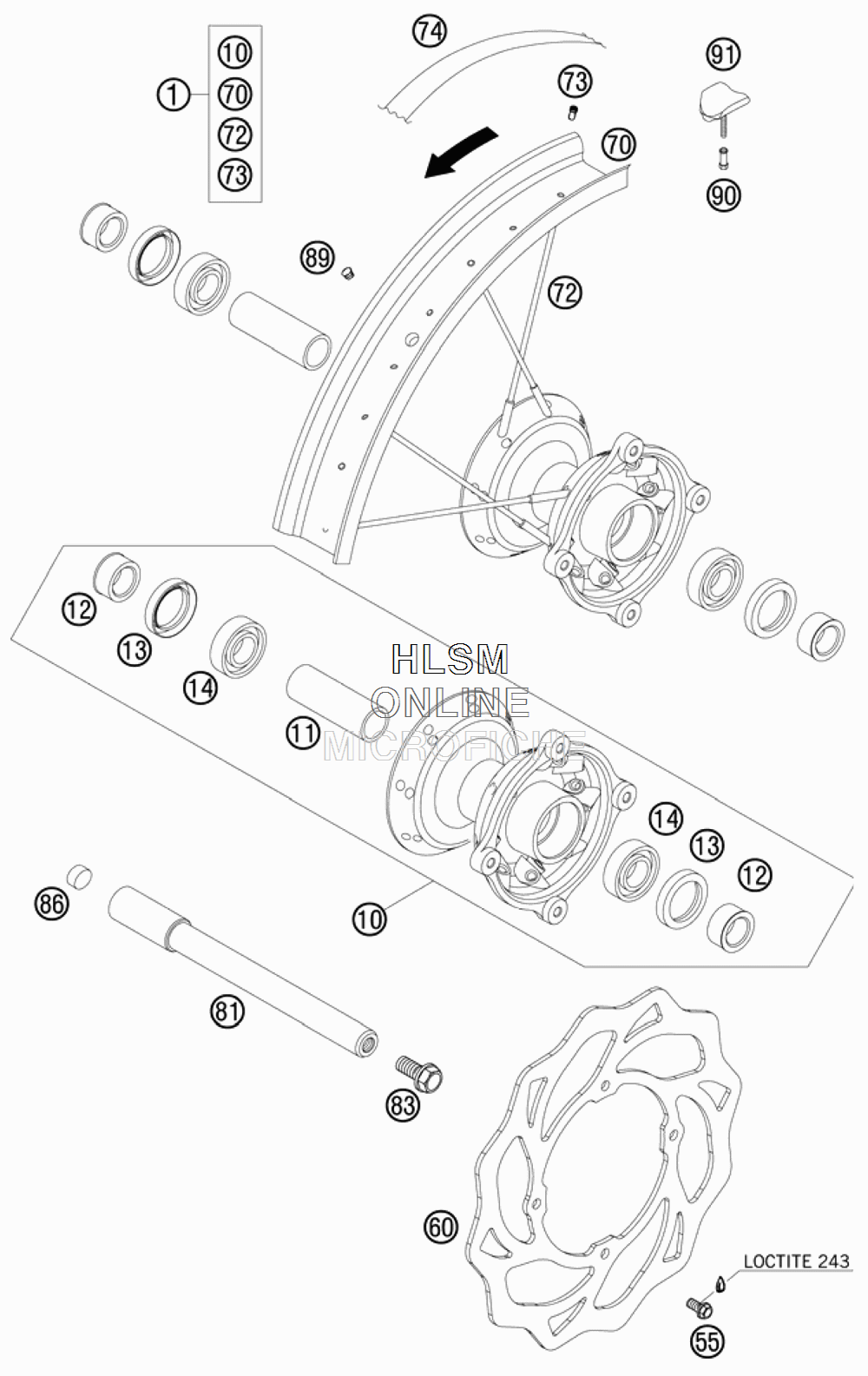

FRONT WHEEL для Ktm 85 SX 19/16 - 2011 года выпуска
-
№АртикулНазвание
-
147009001344 FRONT WHEEL ET 85 SX 19"FRONT WHEEL ET 85 SX 19"
-
104700901004491 FRONT WHEEL HUB CPL. 85 SXFRONT WHEEL HUB CPL. 85 SX
-
1147009011000 BEARING SPACER TUBE 85 SXBEARING SPACER TUBE 85 SX
-
1247009012000 SPACER BUSHING 85 SXSPACER BUSHING 85 SX
-
130760253572 SEAL SHAFT RING 25X35X7 BSLSEAL SHAFT RING 25X35X7 BSL
-
140625060037 GR.BALL BEAR. 6003-2RSH/C3HMTFGR.BALL BEAR. 6003-2RSH/C3HMTF
-
5559009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
6047009060300 BRAKE DISC FRONT D=219MMBRAKE DISC FRONT D=219MM
-
7047009070100 RIM FRONT AL4 19X1,60-32RIM FRONT AL4 19X1,60-32
-
7247009074210 SPOKE FRONT 19" 4/3,5/4-210SPOKE FRONT 19" 4/3,5/4-210
-
7350309072100 SPOKE NIPPLE M4,5X0,75 8X21SPOKE NIPPLE M4,5X0,75 8X21
-
7447009073100 RIM BAND 85 SX 19"RIM BAND 85 SX 19"
-
8147009081000 AXLE FRONT 85 SXAXLE FRONT 85 SX
-
8349032011000 HH COLLAR SCREW M10X20 WS=17HH COLLAR SCREW M10X20 WS=17
-
8655009086000 PLUG SFL13PLUG SFL13
-
8955003135000 PLUG FOR RIMPLUG FOR RIM
-
9050310090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
9151009100100 RIM LOCK VM1 (1,60")RIM LOCK VM1 (1,60")
