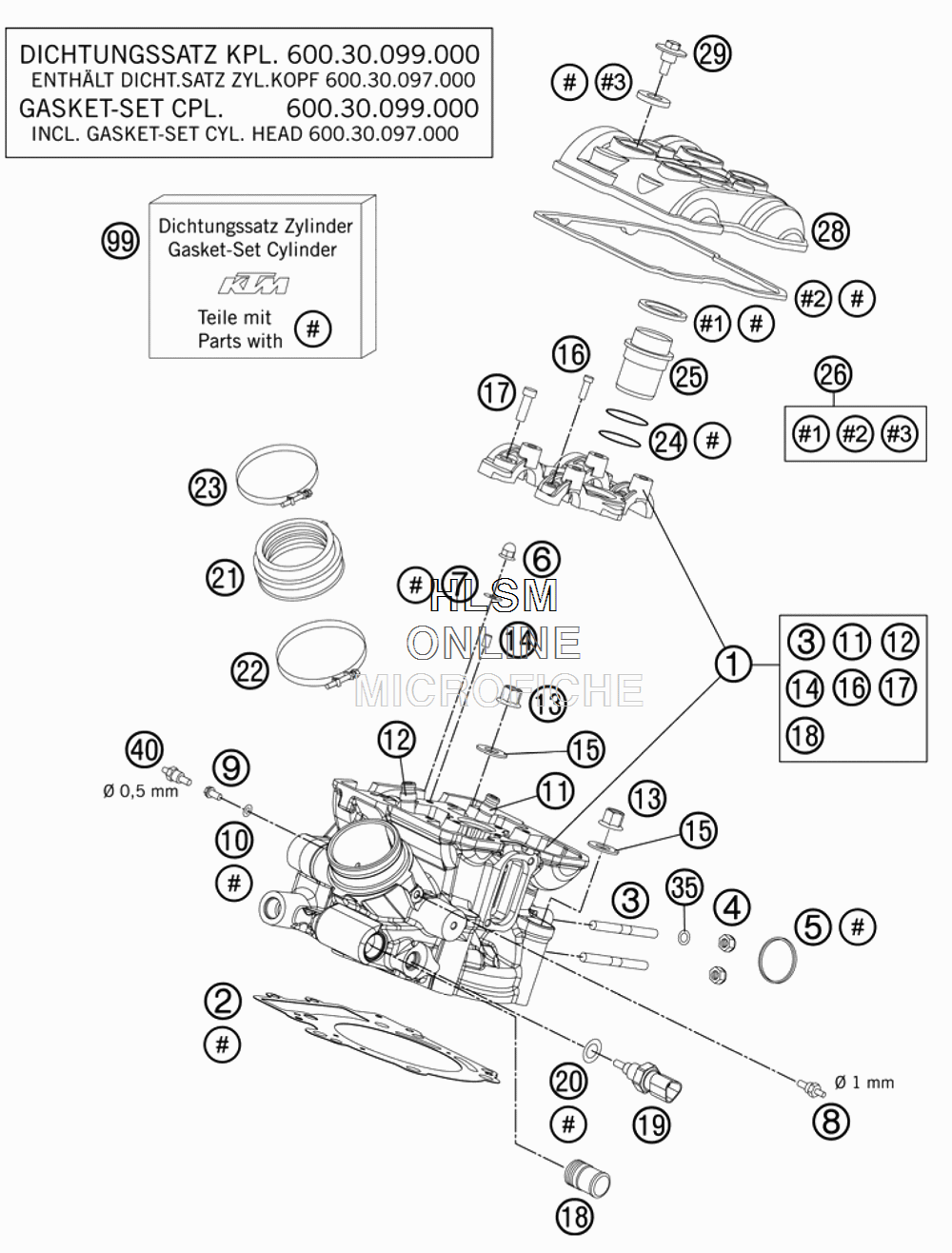

CYLINDER HEAD REAR для Ktm 990 ADVENTURE DAKAR EDITION - 2011 года выпуска
-
№АртикулНазвание
-
16013612014423 CYLINDER HEAD REAR CPL.CYLINDER HEAD REAR CPL.
-
260030036000 CYLINDER HEAD GASKET 0,5 101MMCYLINDER HEAD GASKET 0,5 101MM
-
30835080165 STUD M 8X16 10.9STUD M 8X16 10.9
-
451010086100 SELF LOCKING NUT M 8 CUSELF LOCKING NUT M 8 CU
-
561005005000 EXHAUST GASKETEXHAUST GASKET
-
661230045000 CAP NUT M6 STAINLESS STEELCAP NUT M6 STAINLESS STEEL
-
70125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
861036023100 VACUUM CONECTIONVACUUM CONECTION
-
90025060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
100603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
1160036026101 VALVE GIUDE EXHAUSTVALVE GIUDE EXHAUST
-
1260036025101 VALVE GIUDE INTAKEVALVE GIUDE INTAKE
-
1360036078200 COLLAR NUT M 10 WS=13COLLAR NUT M 10 WS=13
-
140402050980 NEEDLE ROLLER DIN5402 5X9,8NEEDLE ROLLER DIN5402 5X9,8
-
1560036078050 SHIM 10,2X19X1,5MMSHIM 10,2X19X1,5MM
-
160912060255 AH SCREW DIN0912-M 6X25 10.9AH SCREW DIN0912-M 6X25 10.9
-
170984080305 AH SCREW DIN7984-M 8X30 10.9AH SCREW DIN7984-M 8X30 10.9
-
1858030010200 SCREW IN NOZZLE M20X1,5SCREW IN NOZZLE M20X1,5
-
1975035047000 TEMPERATURE SENSOR WATERTEMPERATURE SENSOR WATER
-
200770100020 O-RING 10,00X2,00 SILCONEO-RING 10,00X2,00 SILCONE
-
2161036044000 RUBBERSLEEVE INTAKE FLANGERUBBERSLEEVE INTAKE FLANGE
-
2261036048000 HOSE CLAMP GEMI 66MMHOSE CLAMP GEMI 66MM
-
2361036047000 HOSE CLAMP GEMI 63MMHOSE CLAMP GEMI 63MM
-
240770298178 O-RING 29,87X1,78 VITONO-RING 29,87X1,78 VITON
-
2560136075100 INSERT SPARK-PLUG SHAFTINSERT SPARK-PLUG SHAFT
-
2660036099000 VALVE COVER GASKET SET FR+RRVALVE COVER GASKET SET FR+RR
-
286003615210023 VALVE COVER REARVALVE COVER REAR
-
2960036052020 COLLAR SCREW M 6 WS=10COLLAR SCREW M 6 WS=10
-
350125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
4060036023100 VACUUM CONECTION M6/0,5MM ONLY USAVACUUM CONECTION M6/0,5MM ONLY USA
-
9960030097000 GASKET SET CYL. HEADGASKET SET CYL. HEAD
