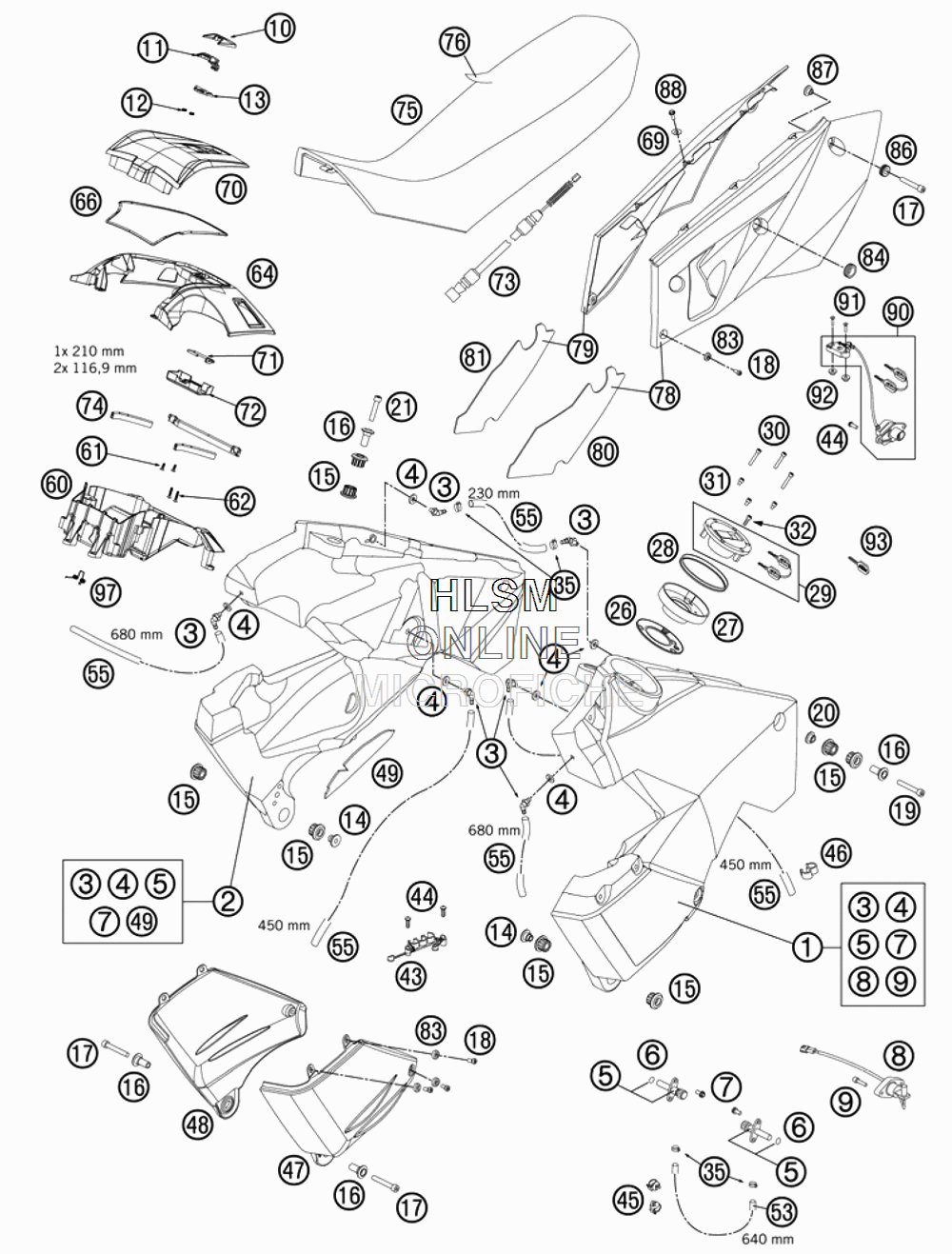

TANK SEAT COVER для Ktm 990 ADVENTURE DAKAR EDITION - 2011 года выпуска
-
№АртикулНазвание
-
16010701324406B FUEL TANK L/S CPL. BLUE DAKAR (DECAL OVER-COATED )FUEL TANK L/S CPL. BLUE DAKAR (DECAL OVER-COATED )
-
26010711323306B FUEL TANK R/S CPL. BLUE (DECAL OVER-COATED)FUEL TANK R/S CPL. BLUE (DECAL OVER-COATED)
-
360007024000 CONNECT.PIECE F.OVERFLOW M7CONNECT.PIECE F.OVERFLOW M7
-
460007024050 GASKET FOR CONNECTING PIECEGASKET FOR CONNECTING PIECE
-
558507003000 FUEL COCK CPL. SMALLFUEL COCK CPL. SMALL
-
60770020130 O-RING 1,78X10,82X14,38 2-013O-RING 1,78X10,82X14,38 2-013
-
70025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
858207080000 GAS-LEVEL SENSOR ADV.GAS-LEVEL SENSOR ADV.
-
90912050163 AH SCREW DIN0912-M 5X16AH SCREW DIN0912-M 5X16
-
1060107020051 COVER PUSH BUTTONCOVER PUSH BUTTON
-
1160107020052 PUSH BUTTONPUSH BUTTON
-
1260107020053 COIL SPRINGCOIL SPRING
-
1360107020054 PUSH BUTTON SUPPORTPUSH BUTTON SUPPORT
-
1460007062000 BEAR.BUSH.INSIDE L=15,5MMBEAR.BUSH.INSIDE L=15,5MM
-
1560007065000 TANK RUBBER BUSHINGTANK RUBBER BUSHING
-
1660007060000 BEARING BUSHING OUTSIDEBEARING BUSHING OUTSIDE
-
170912080553 AH SCREW DIN912 M8X55AH SCREW DIN912 M8X55
-
180984060163 AH SCREW DIN6912-M 6X16AH SCREW DIN6912-M 6X16
-
190912080503 AH SCREW DIN912 M8X50AH SCREW DIN912 M8X50
-
2060007061000 BEARING BUSHING INSIDEBEARING BUSHING INSIDE
-
210912080403 AH SCREW DIN912 M8X40AH SCREW DIN912 M8X40
-
2660007008051 SEAL. FLANGE F.TANK INSERTSEAL. FLANGE F.TANK INSERT
-
2760007008150 TANK INSERTTANK INSERT
-
2860007008052 SEAL. RING F. TANK INSERTSEAL. RING F. TANK INSERT
-
2960007108000 TANK PLUGTANK PLUG
-
300912050303 AH SCREW DIN0912-M 5X30AH SCREW DIN0912-M 5X30
-
310912050083 AH SCREW DIN 912 M 5X8AH SCREW DIN 912 M 5X8
-
320912050123 AH SCREW DIN0912-M 5X12AH SCREW DIN0912-M 5X12
-
3558031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
4360011057000 HOSE HOLDER TRIPLEHOSE HOLDER TRIPLE
-
440081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
-
4557013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
4655011022100 CLAMP D=6/8MM, BLACKCLAMP D=6/8MM, BLACK
-
4760107013050 TANK PROTECTOR L/STANK PROTECTOR L/S
-
4860107113050 TANK PROTECTOR R/STANK PROTECTOR R/S
-
4960007095100 THERMAL PROTECT. FOIL TANKTHERMAL PROTECT. FOIL TANK
-
5360007216640 HOSE 6X13 L=640 MMHOSE 6X13 L=640 MM
-
5578015019000 HOSE EPA D=6/10 L=2000MMHOSE EPA D=6/10 L=2000MM
-
6060107023000 STORAGE BOX BOTTOM PARTSTORAGE BOX BOTTOM PART
-
610081030103 SCREW K30X10 T10SCREW K30X10 T10
-
620081030163 SCREW K30X16 T10SCREW K30X16 T10
-
646010701900033 STOR.BOX CENT.PART BLACKSTOR.BOX CENT.PART BLACK
-
6660107020070 COVER GASKETCOVER GASKET
-
6960007020040 PLASTIC WASHERPLASTIC WASHER
-
706010702000033 COVER FOR STORAGE BOXCOVER FOR STORAGE BOX
-
7160107019082 LOCK BOLT STORAGE COMPARTMENTLOCK BOLT STORAGE COMPARTMENT
-
7260107019080 SUPPORT F. LOCK BOLTSUPPORT F. LOCK BOLT
-
7360107032000 STORAGE BOX CABLESTORAGE BOX CABLE
-
7458312085100 EDGE PROTECTOR PER METEREDGE PROTECTOR PER METER
-
75*60007040300 SEAT BLACKSEAT BLACK
-
76*60007040350 SEAT COVERSEAT COVER
-
78*6010804100006C SIDE COVER L/S REAR " DAKAR " DECAL OVER-COATEDSIDE COVER L/S REAR " DAKAR " DECAL OVER-COATED
-
79*6010804200006C SIDE COVER R/S REAR " DAKAR " DECAL OVER-COATEDSIDE COVER R/S REAR " DAKAR " DECAL OVER-COATED
-
8060008041150 THER.PROT.FOIL SI. CO. L/STHER.PROT.FOIL SI. CO. L/S
-
8160008042150 THER.PROT.FOIL SI. COV. R/STHER.PROT.FOIL SI. COV. R/S
-
8360008045000 SPECIAL WASHER D=16,5MMSPECIAL WASHER D=16,5MM
-
8460107053000 RUBBER SLEEVE F.SEAT LOCKRUBBER SLEEVE F.SEAT LOCK
-
8641001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
8760012008002 COLLAR BUSHING 8,2X12X20X9COLLAR BUSHING 8,2X12X20X9
-
8817060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
9060107050000 SEAT LOCKSEAT LOCK
-
91738060301 COU.SUNK SCR. AH ISO7380 M6X30COU.SUNK SCR. AH ISO7380 M6X30
-
9260008013050 DISTANCE BUSH. 7X12X18X3,7DISTANCE BUSH. 7X12X18X3,7
-
9340011166100 KEY BLANKKEY BLANK
-
9760107023080 STORAGE COVER BOX SPRINGSTORAGE COVER BOX SPRING
