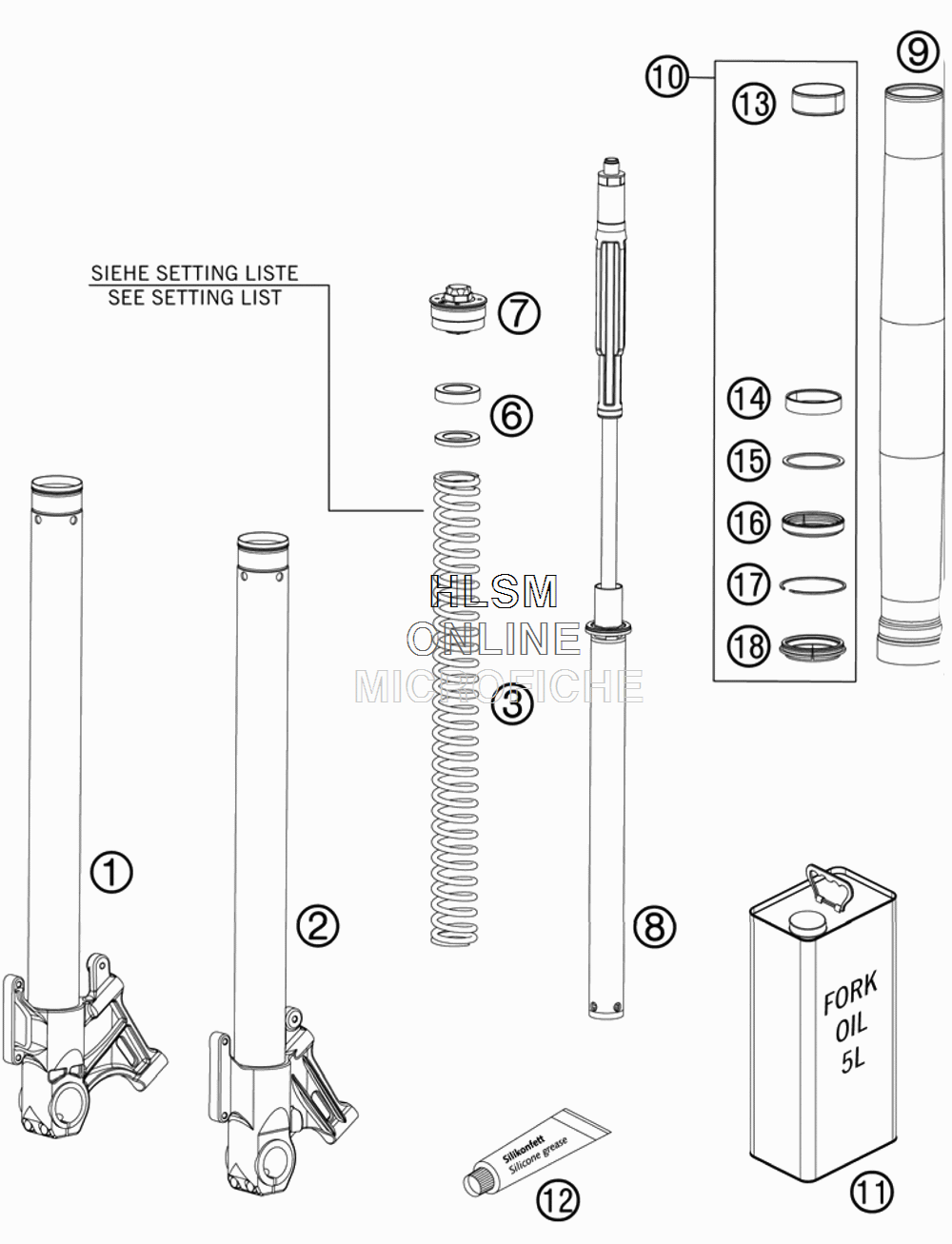

FRONT FORK DISSASSEMBLED для Ktm 990 SMR - 2011 года выпуска
-
№АртикулНазвание
-
148600685S3 AXLE CLAMP R/S CPLAXLE CLAMP R/S CPL
-
248600686S3 AXLE CLAMP L/S CPLAXLE CLAMP L/S CPL
-
391410076S SPRING D43,7 L375 7,5N/MM SETSPRING D43,7 L375 7,5N/MM SET
-
648600036 SPACER 42X26,5X2,5SPACER 42X26,5X2,5
-
648600037 SPACER 42X26,5X5SPACER 42X26,5X5
-
648600053 SPACER 42X26,5X1,5SPACER 42X26,5X1,5
-
748600431S PRE-LOAD ADJ. CPL. M51X1,5PRE-LOAD ADJ. CPL. M51X1,5
-
848600839S CARTRIDGE CPL.CARTRIDGE CPL.
-
948600712 OUTER TUBE L610 D54/D60 2L ROAOUTER TUBE L610 D54/D60 2L ROA
-
10R14017 REPAIR-KIT GASKETREPAIR-KIT GASKET
-
1148600765S1 FORK OIL SAE5 5LFORK OIL SAE5 5L
-
12T511 SILICONE GREASE F. DUST STRIPESILICONE GREASE F. DUST STRIPE
-
1348600428 DU-BUSH D47XD49X20DDL02DU-BUSH D47XD49X20DDL02
-
1448600429 DU-BUSH D48XD52X12DDL02DU-BUSH D48XD52X12DDL02
-
1548600013 SUPPORT RING 50 X 57,6 X 1,5SUPPORT RING 50 X 57,6 X 1,5
-
1648600399 OIL SEAL RING 48X57,8X9,5OIL SEAL RING 48X57,8X9,5
-
1748600070 LOCK WASHER SB58LOCK WASHER SB58
-
1848600816 DUST SEALDUST SEAL
