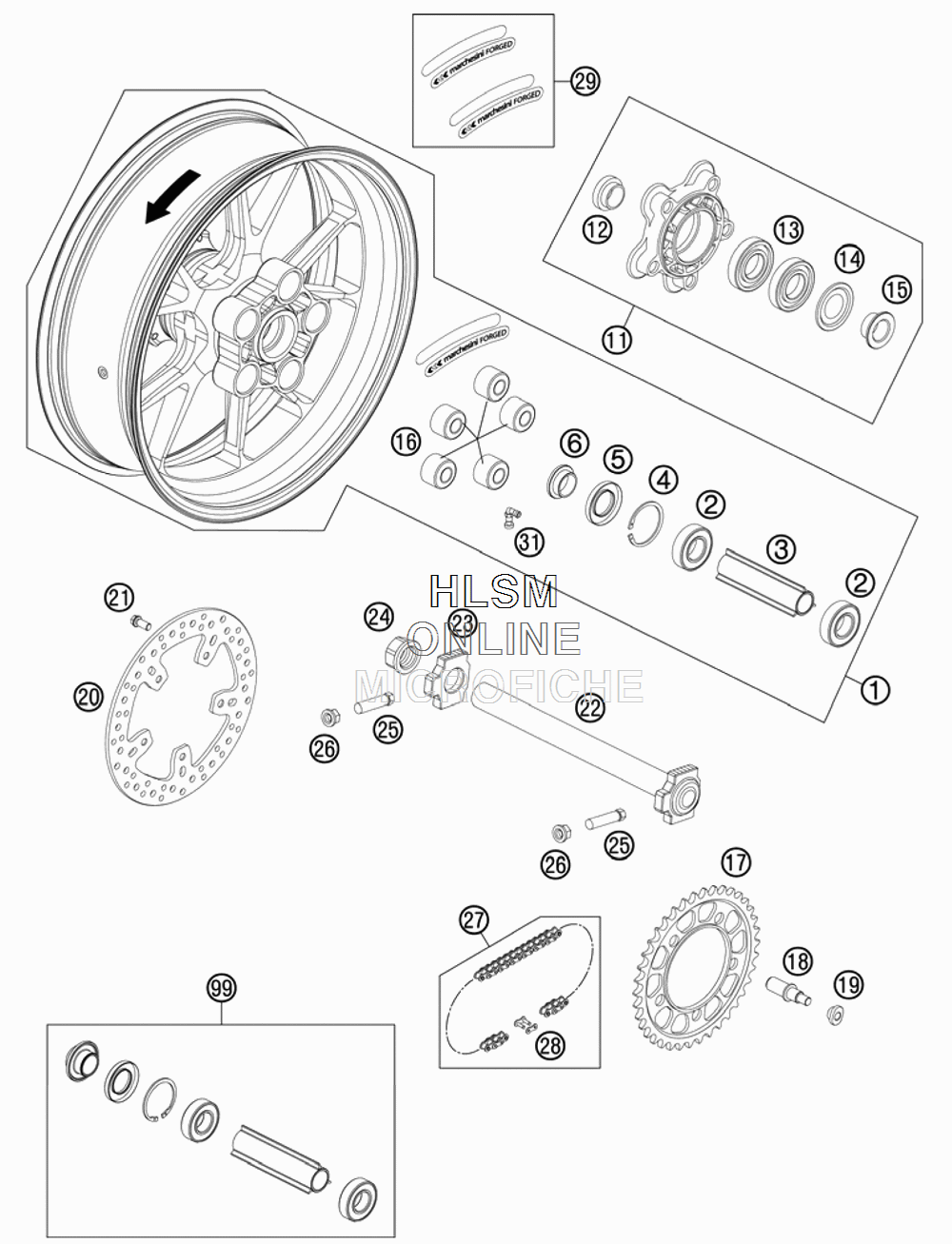

WHEEL - REAR для Ktm 990 SMR - 2011 года выпуска
-
№АртикулНазвание
-
16261000104430 REAR WHEEL CPL.REAR WHEEL CPL.
-
20625062052 GR.BALL BEAR. 6205-2RSHC3HMTF7GR.BALL BEAR. 6205-2RSHC3HMTF7
-
361010011000 BEARING SPACER TUBE REARBEARING SPACER TUBE REAR
-
40472052200 CIRCLIP DIN0472-52X2CIRCLIP DIN0472-52X2
-
50760305271 SHAFT SEAL RING 30X52X7SHAFT SEAL RING 30X52X7
-
660010013000 SPACER BUSH. REAR WHEEL R/SSPACER BUSH. REAR WHEEL R/S
-
1161010050144 SPROCKET SUPPORT CPL.SPROCKET SUPPORT CPL.
-
1260110014000 SPACER BUSH. SPR. SUPP. IN.SPACER BUSH. SPR. SUPP. IN.
-
130625060060 BALL BEARING 6006 DDU2CG23S6NMBALL BEARING 6006 DDU2CG23S6NM
-
1460110016000 NILOS RING 6006AVNILOS RING 6006AV
-
1560110012000 SPACER BUSH. SPROCKET SUPP.SPACER BUSH. SPROCKET SUPP.
-
1661010059000 DAMPING RUBBERDAMPING RUBBER
-
1761010051138 REAR SPROCKET 38-T STEELREAR SPROCKET 38-T STEEL
-
1761010051139 REAR SPROCKET 39-T STEELREAR SPROCKET 39-T STEEL
-
1761010051140 REAR SPROCKET 40-T STEELREAR SPROCKET 40-T STEEL
-
1761010051141 REAR SPROCKET 41-T STEELREAR SPROCKET 41-T STEEL
-
1761010051142 REAR SPROCKET 42-T STEELREAR SPROCKET 42-T STEEL
-
1861010056000 BOLT FOR SPROCKET SUPPORTBOLT FOR SPROCKET SUPPORT
-
1961010057000 NUT REAR SPROCKETNUT REAR SPROCKET
-
2061010060000 BRAKE DISK REAR D=240MMBRAKE DISK REAR D=240MM
-
2161009062018 SPECIAL SCREW M8X18SPECIAL SCREW M8X18
-
22*60010081144 WHEEL SPINDLE REAR CPL.WHEEL SPINDLE REAR CPL.
-
2360010084000 CHAIN TENSIONER R/S LC8CHAIN TENSIONER R/S LC8
-
2461010086000 COLLAR NUT M25X1,5 WS=32COLLAR NUT M25X1,5 WS=32
-
2550304040100 SCREW M10X1,25X50 WS=10SCREW M10X1,25X50 WS=10
-
2658414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
2760010165118 CHAIN 525 WITH MASTER LINKCHAIN 525 WITH MASTER LINK
-
2860010066000 MASTER LINK FOR CHAIN 525MASTER LINK FOR CHAIN 525
-
2900050000121 STICKER MARCH. 2L/S+2R/S YELLOWSTICKER MARCH. 2L/S+2R/S YELLOW
-
3161009076000 VALVE ANGLED 90VALVE ANGLED 90
-
9961010015000 REAR WHEEL REP. KITREAR WHEEL REP. KIT
