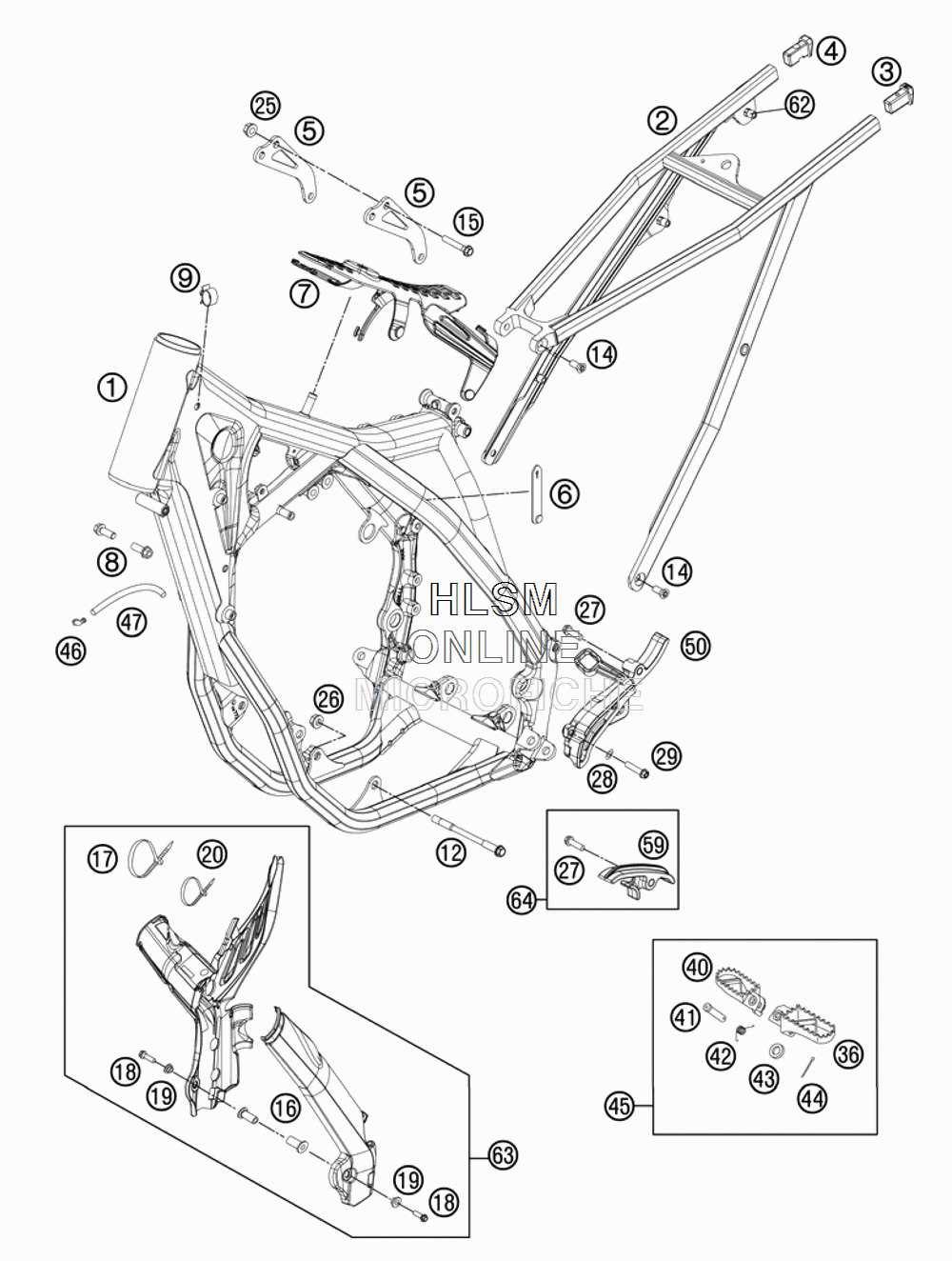

FRAME для Ktm 350 SX-F - 2012 года выпуска
-
№АртикулНазвание
-
17720300100033 FRAMEFRAME
-
277203002000 SUB FRAMESUB FRAME
-
378003002010 SUB FRAME APPLICATION LEFTSUB FRAME APPLICATION LEFT
-
478003002020 SUB FRAME APPLICATION RIGHTSUB FRAME APPLICATION RIGHT
-
577203013000 REINFORCING B.REINFORCING B.
-
660011093075 RUBBER CABLE TIE 75MMRUBBER CABLE TIE 75MM
-
777207012000 TANK REST RUBBERTANK REST RUBBER
-
80025080166S HH COLLAR SCREW M8X16HH COLLAR SCREW M8X16
-
957013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
1277203014000 ENGINE BRAC.SCR. M10X115ENGINE BRAC.SCR. M10X115
-
140019080206S FLAT HEAD SCREW M. ISA45 M8X20FLAT HEAD SCREW M. ISA45 M8X20
-
1556530079000 CYLINDER HEAD SCREW M8X44CYLINDER HEAD SCREW M8X44
-
1654803092050 BLIND PLUG-IN NUT M5 WN 22ABLIND PLUG-IN NUT M5 WN 22A
-
1744011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
180738050250 COU.SUNK SCR. AH ISO7380 M5X25COU.SUNK SCR. AH ISO7380 M5X25
-
1954803092060 BUSH F. FRAME PROTECTIONBUSH F. FRAME PROTECTION
-
2044011076140 CABLE TIE 140/2,5MM BLACKCABLE TIE 140/2,5MM BLACK
-
2554310086200 SELF LOCKING NUT M8SELF LOCKING NUT M8
-
2654310086100 SELF LOCKING NUT M10 CU WS=14SELF LOCKING NUT M10 CU WS=14
-
270025080306 HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
-
280125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
290025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
3659003040250 FOOT PEG L/S SILVERFOOT PEG L/S SILVER
-
4059003041250 FOOT PEG R/S SILVERFOOT PEG R/S SILVER
-
4154803044000 BOLT FOR FOOT PEDBOLT FOR FOOT PED
-
4254603041000 FOOTREST SPRING L/S & R/SFOOTREST SPRING L/S & R/S
-
430125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
440094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
455030314013390 FOOTPEG L.+R. CPL.FOOTPEG L.+R. CPL.
-
4650303089000 ANGLE PIECEANGLE PIECE
-
4755007016001 PVC-HOSE 7X10 PER METERPVC-HOSE 7X10 PER METER
-
5077203096000 SPROCKET COVERSPROCKET COVER
-
5977203053000 CHAIN SLIDING PIECE BELOWCHAIN SLIDING PIECE BELOW
-
6277303139000 BLIND RIVET NUT EM6-60LF/HXBLIND RIVET NUT EM6-60LF/HX
-
6377203094000 PLASTIC FRAME PROTECTION SETPLASTIC FRAME PROTECTION SET
-
6477203053010 CHAIN SLIDING KIT BELOW CPL.CHAIN SLIDING KIT BELOW CPL.
