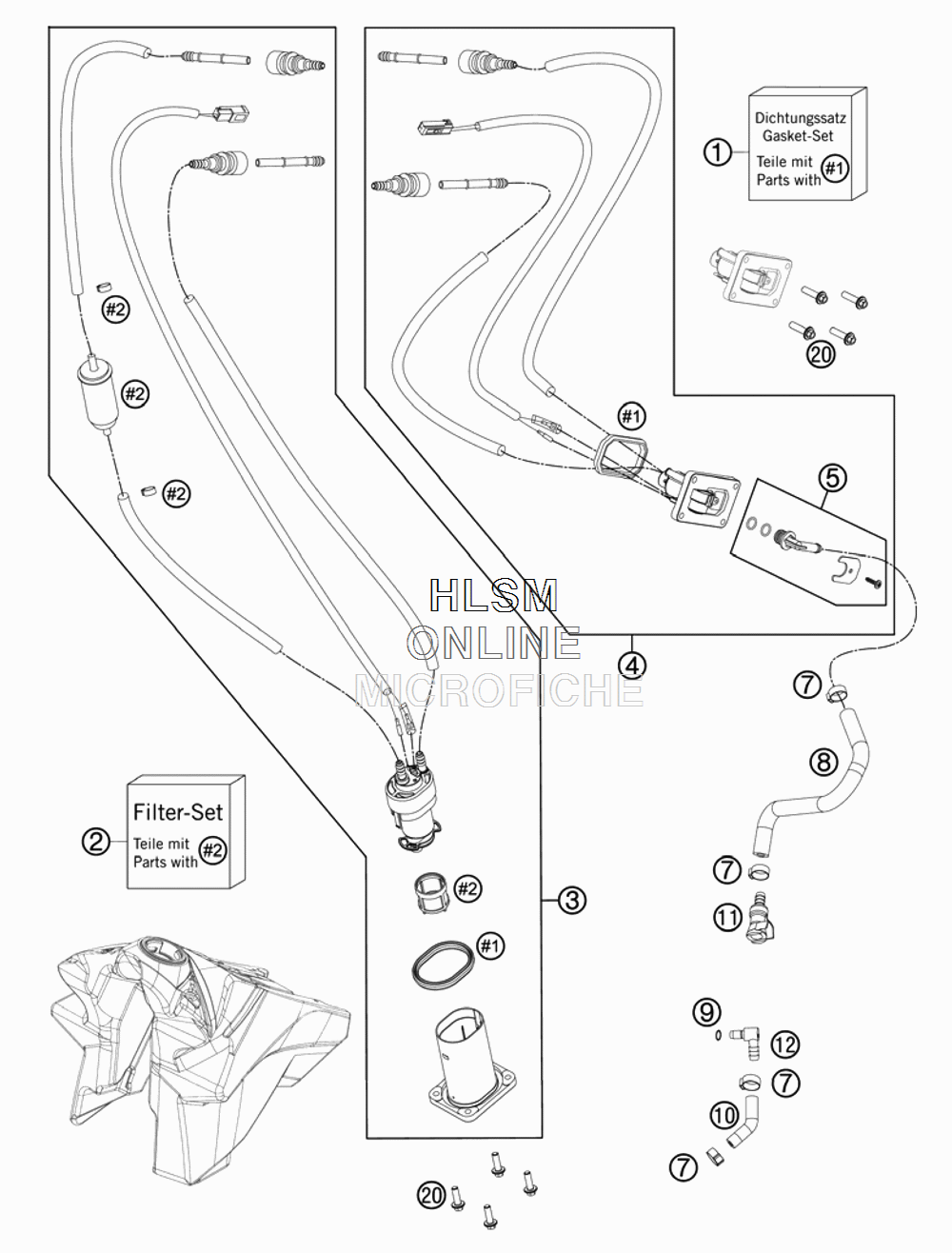

FUEL PUMP для Ktm 350 SX-F - 2012 года выпуска
-
№АртикулНазвание
-
175007089000 SEALINGS KITSEALINGS KIT
-
281207090000 FILTER KITFILTER KIT
-
381207088011 FUEL PUMP WITH FLANGE CPL.FUEL PUMP WITH FLANGE CPL.
-
475007088012 PRESSURE REGULATOR CPL.PRESSURE REGULATOR CPL.
-
575007092000 HYDRAULIC CONNECTOR CPL.HYDRAULIC CONNECTOR CPL.
-
700050157706 VARIABLE ONE-EAR CLAMP 15,7MMVARIABLE ONE-EAR CLAMP 15,7MM
-
877207116000 FUEL HOSE TANKFUEL HOSE TANK
-
958507012000 O-RING VITON F. PLUG CPCO-RING VITON F. PLUG CPC
-
1077207016000 FUEL HOSE DKKFUEL HOSE DKK
-
115850701050030 CLUTCH CPC BLACKCLUTCH CPC BLACK
-
127720701000030 PLUG CPCPLUG CPC
-
200017060253 EJOT PT SCREW K60X25-Z SW=6EJOT PT SCREW K60X25-Z SW=6
