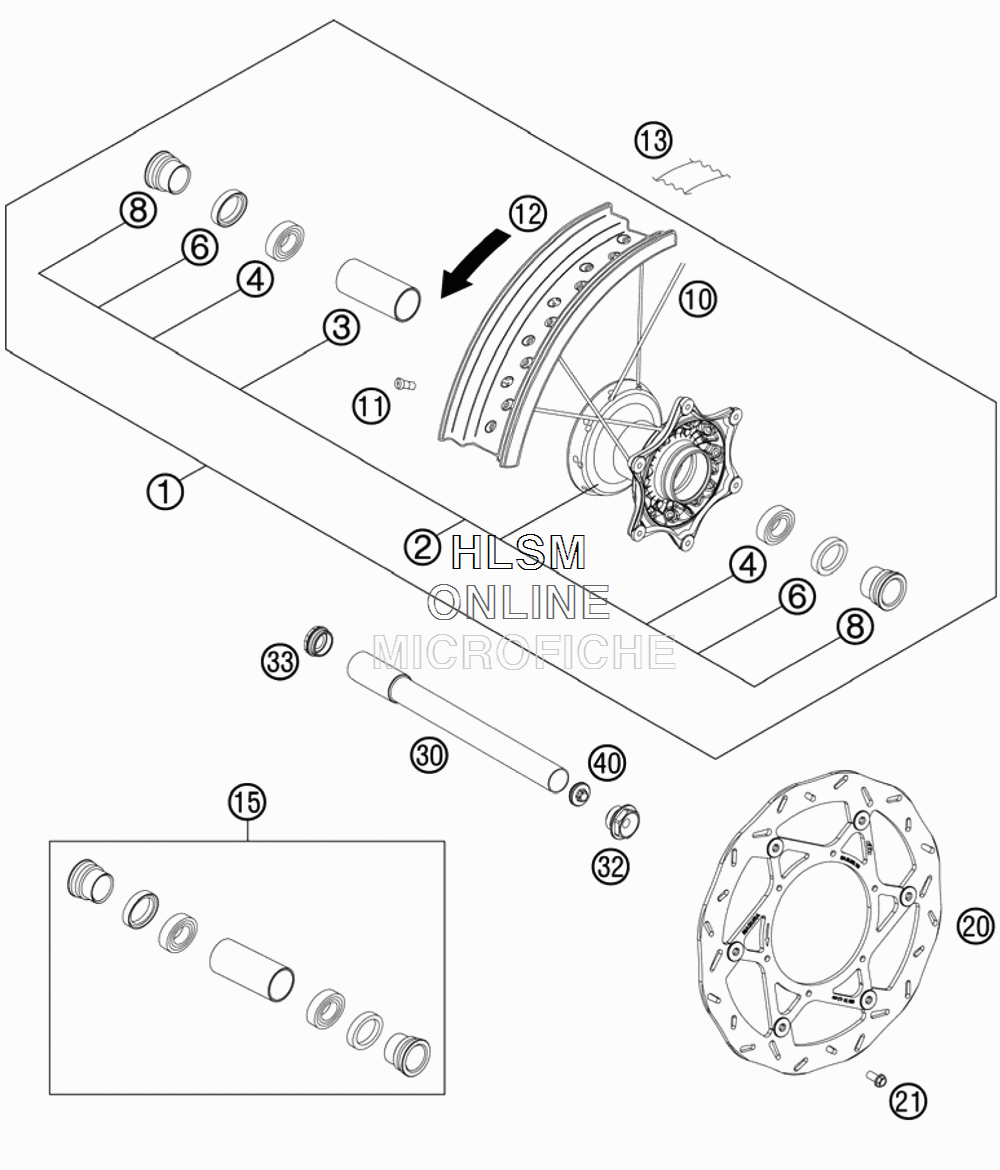

FRONT WHEEL для Ktm 450 SMR - 2012 года выпуска
-
№АртикулНазвание
-
17730920104430 FRONT WHEEL 3,5X16,5FRONT WHEEL 3,5X16,5
-
278009010144 FRONT WHEEL HUB CPL.FRONT WHEEL HUB CPL.
-
354809011000 BEA.SPACERTUBE 35X2 L=79,4BEA.SPACERTUBE 35X2 L=79,4
-
40625069068 GR.BALL BEAR.6906 DDU2CG23S6NMGR.BALL BEAR.6906 DDU2CG23S6NM
-
60760354771 SHAFT SEAL RING 35X47X7 TCSHAFT SEAL RING 35X47X7 TC
-
878009012000 SPACER BUSHING F. FR. WHEELSPACER BUSHING F. FR. WHEEL
-
1077309271164 SPOKE M4,5X164-16,5"SPOKE M4,5X164-16,5"
-
1150309072100 SPOKE NIPPLE M4,5X0,75 8X21SPOKE NIPPLE M4,5X0,75 8X21
-
127730927000030 FRONT RIM 3,5X16,5"FRONT RIM 3,5X16,5"
-
1358309073000 RIM BAND 17"RIM BAND 17"
-
1578009015000 FRONT WHEEL REP. KITFRONT WHEEL REP. KIT
-
2058609060000 WAVE BRAKE DISC FRONTWAVE BRAKE DISC FRONT
-
2159009062016 SPECIAL SCREW M6X16 WS=8 10.9SPECIAL SCREW M6X16 WS=8 10.9
-
3077309081000 WHEEL SPIN.FR. D=26 M24X1,5WHEEL SPIN.FR. D=26 M24X1,5
-
3254809082000 SPINDLE SCREW M24X1,5 WS=27SPINDLE SCREW M24X1,5 WS=27
-
3354809081050 PLUG BUSHING WS=27PLUG BUSHING WS=27
-
4054809081070 AUXILIARY SCREW FRONTAUXILIARY SCREW FRONT
