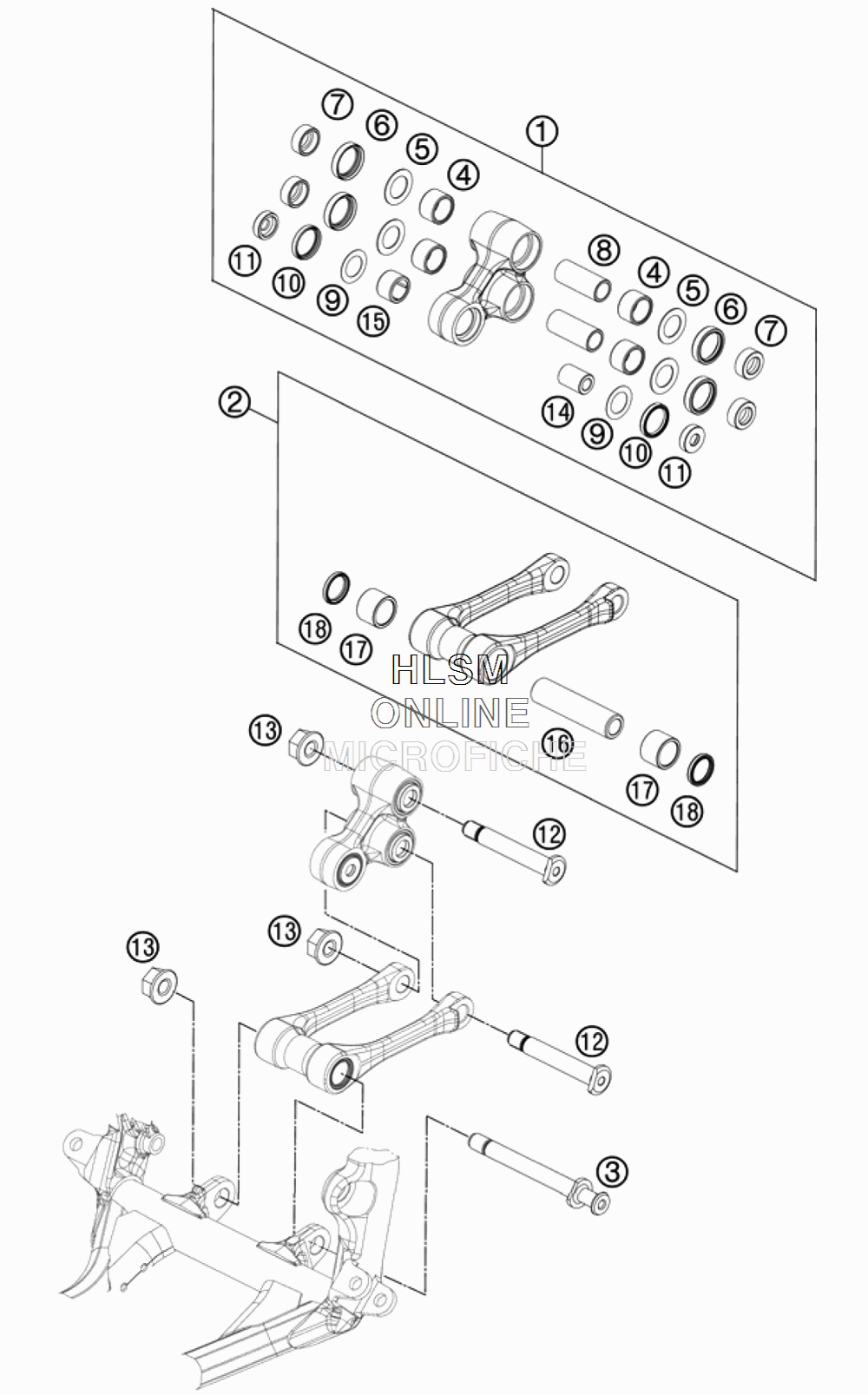

PRO LEVER LINKING для Ktm 450 SMR - 2012 года выпуска
-
№АртикулНазвание
-
17720408004401 TRIANGLE LEVER CPL.TRIANGLE LEVER CPL.
-
27720408304401 PULL ROD CPL.PULL ROD CPL.
-
377204084000 PULL ROD ANCHOR BOLTPULL ROD ANCHOR BOLT
-
454603097000 NEEDLE BUSH HK 2016NEEDLE BUSH HK 2016
-
559033080000 SHIM 20X32X1SHIM 20X32X1
-
60760253270 SHAFT SEAL RING 25X32X7SHAFT SEAL RING 25X32X7
-
777204080030 BUCKET FOR SHAFT SEAL RINGBUCKET FOR SHAFT SEAL RING
-
854603081000 BUSHING SLEEVE 15 X 20 X 48BUSHING SLEEVE 15 X 20 X 48
-
950180604 SHIM D29,75 X D19 X T0,4SHIM D29,75 X D19 X T0,4
-
100760243050 SHAFT SEAL RING 24X30X5SHAFT SEAL RING 24X30X5
-
1177204080020 BUCKET FOR SHAFT SEAL RINGBUCKET FOR SHAFT SEAL RING
-
1277204085100 BOLT FOR CANTILEVER M14BOLT FOR CANTILEVER M14
-
1354603015000 SELF LOCKING NUT M14X1,5 WS=19SELF LOCKING NUT M14X1,5 WS=19
-
1477204080010 BEARING SLEEVE 10X18X25,5BEARING SLEEVE 10X18X25,5
-
150618182416 NEEDLE BUSH HN1816 RS 18/24/16NEEDLE BUSH HN1816 RS 18/24/16
-
1677204084010 BEARING SLEEVEBEARING SLEEVE
-
170618222820 NEEDLE BEARING HK2220 22X28X20NEEDLE BEARING HK2220 22X28X20
-
180760222841 SHAFT SEAL RING G22X28X4SHAFT SEAL RING G22X28X4
